Component Access / Removal
#3758407 - Revision B - August, 2006
Freezer Lower Light Diffuser (632-2, 642-2, 661-2)
The lower light diffuser is a flexible plastic material and
is held in place with diffuser retainers at top and bottom.
To remove the lower light diffuser, remove the top freez-
er basket first, then (See Figures 7-98):
1. Push top of diffuser down, causing it to flex and
release from top retainer.
2. Pull diffuser forward.
Freezer Duct/Shelf Assembly (632-2, 642-2, 661-2)
The freezer duct/shelf assembly is secured at the top
by slots in the side flanges fitting over pegs at the top of
each shelf ladder. Screws at the shelf front hold the
duct/shelf to supports in the side walls.
To remove the freezer duct/shelf assembly, remove the
freezer light diffuser, freezer shelves and ice bucket
first, then (See Figures 7-99):
1. Pull grounding clip terminal from top flange of
duct/shelf and pull duct/shelf out.
2. Extract screws from evaporator shelf front.
3. Pull freezer duct/shelf forward and down.
NOTE: When reinstalling freezer duct/shelf, be sure to
reattach grounding clip terminal to top flange.
Fill Tube Heater (632-2, 642-2, 661-2)
To remove the fill tube heater, remove the freezer
shelves, ice bucket and duct/shelf assembly first, then
(See Figures 7-100):
1. Disconnect heater wire leads from wire harness.
2. Slide heater off of fill tube.

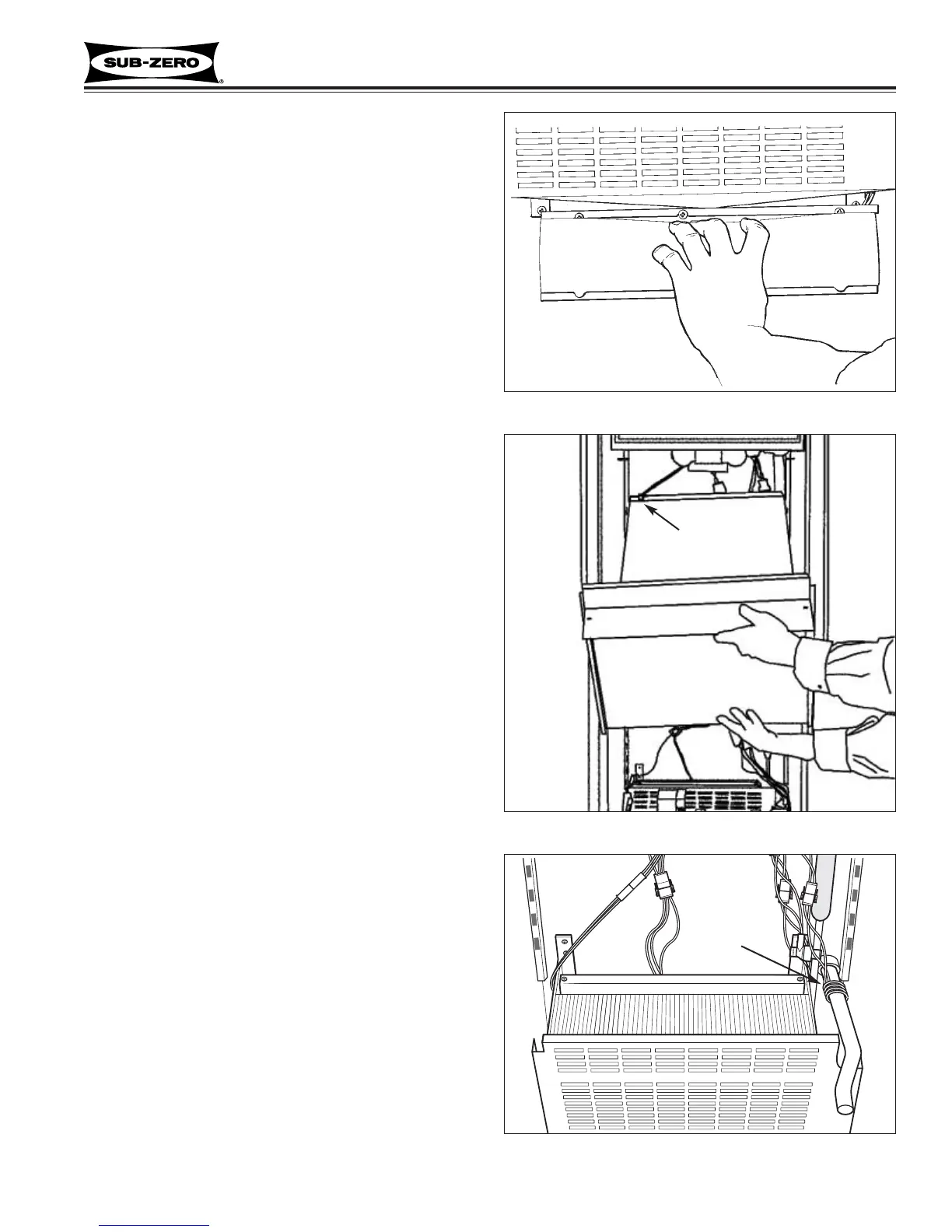

Figure 7-99. Duct/Shelf
Figure 7-98. Lower Light Diffuser
Figure 7-100. Fill Tube Heater
Light Diffuser
Duct/Shelf
Grounding
clip
Fill Tube
Heater
