Sub-Zero 611-2 User Manual

7-4
Component Access / Removal
Built-In
Built-In
(600-
(600-
2
2
)
)
Series
Series
#3758407 - Revision B - August, 2006
Top Mount Standard & Stainless Steel Louvered
Grille (All models except 601’s)
To remove a top mount louvered grille assembly (See
Figure 7-3):
1. Open door(s).
2. Extract grille screws which pass up through top
mainframe extrusion into bottom extrusion of grille
assembly.
3. Tilt top of grille forward and release grille springs
from grille hooks at back side of grille, then lift grille
assembly off.
Top Mount Panelized Grille Assembly
(All models except 601’s)
The panelized grille assembly consists of an outer and
inner grille frame. The outer grille frame is attached to
the unit with screws. Pegs on the back of the inner
grille frame fit into keyhole slots in the outer grille frame.
Inner Grille Frame Removal - To remove the inner
grille frame (See Figure 7-4):
1. Lift inner grille frame up.
2. Pull bottom of inner grille frame out of bottom key-
hole slots.
3. Pull inner grille frame down and out of top keyhole
slots.
Outer Grille Frame Removal - To remove the outer
grille frame (See Figure 7-5):
1. Remove inner grille frame first.
2. Open door(s).
3. Extract grille screws which pass up through top
mainframe extrusion into bottom extrusion of outer
grille frame.
4. Extract screws at top front of outer grille frame and
lift frame off.

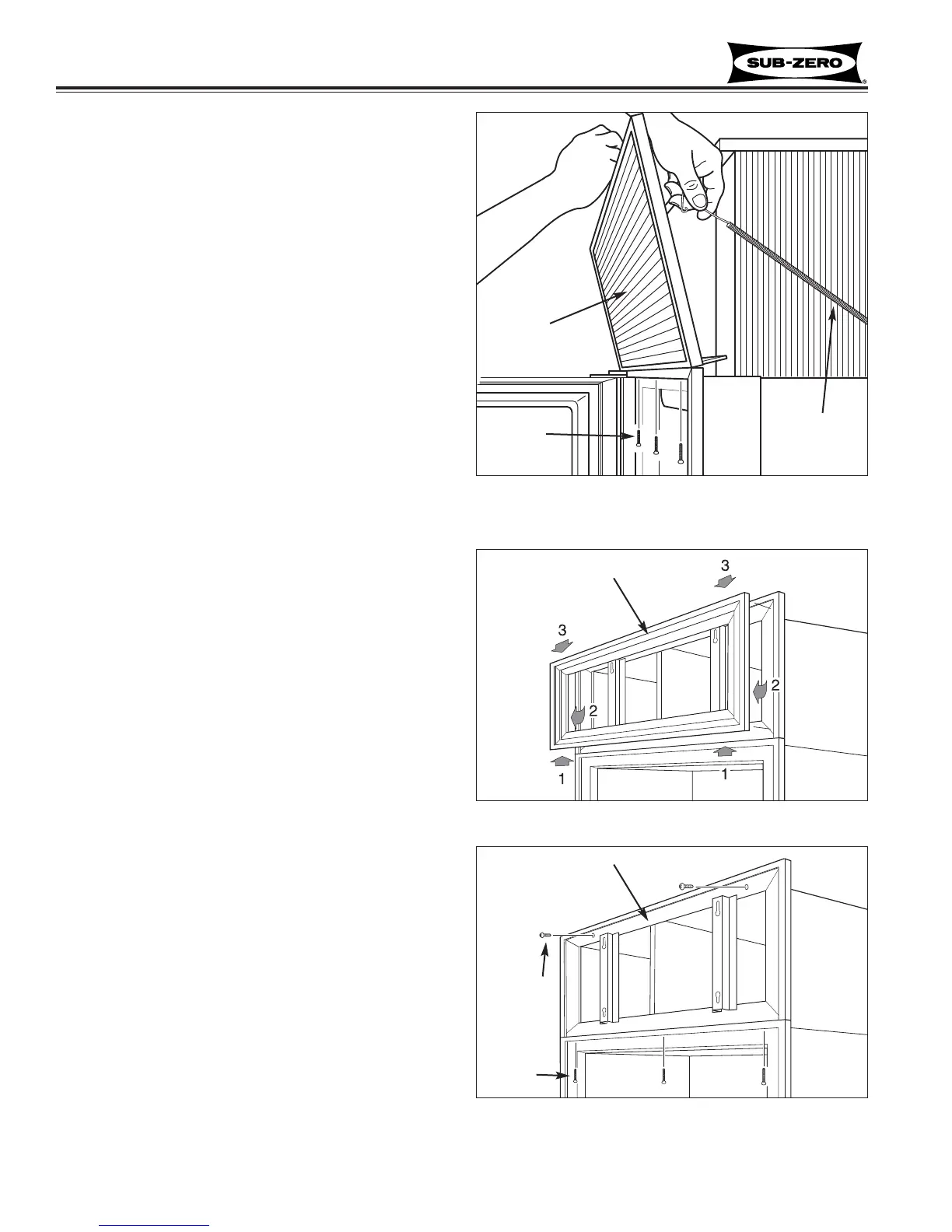

Figure 7-3. Louver Grille
Figure 7-4. Inner Panelized Grille Frame
Figure 7-5. Outer Panelized Grille Frame
Grille
Screws
Grille
Springs
Louvered
Grille
Inner Grille Frame
Outer Grille Frame
Grille
Screws
Screws
