Component Access / Removal
#3758407 - Revision B - August, 2006
Door Closer Assembly
(All Models Except 611-2 & 650-2)
NOTE: Door closer assembly removal and door closer
disconnection procedures are different. If disconnecting
a door closer in order to remove a door, see Door
Removal instructions instead of these instructions.
To remove a door closer assembly (See Figure 7-23):
1. With door closed, use a small straight-blade screw-
driver to remove E-ring which holds door closer arm
to bottom door hinge stud.
2. Pry door closer arm down off of door hinge stud.
Door Assembly (601R-2, 601F-2, 632-2, 642-2, 611-2,
650-2, 661-2, 685-2 Fre, 695-2 Fre)

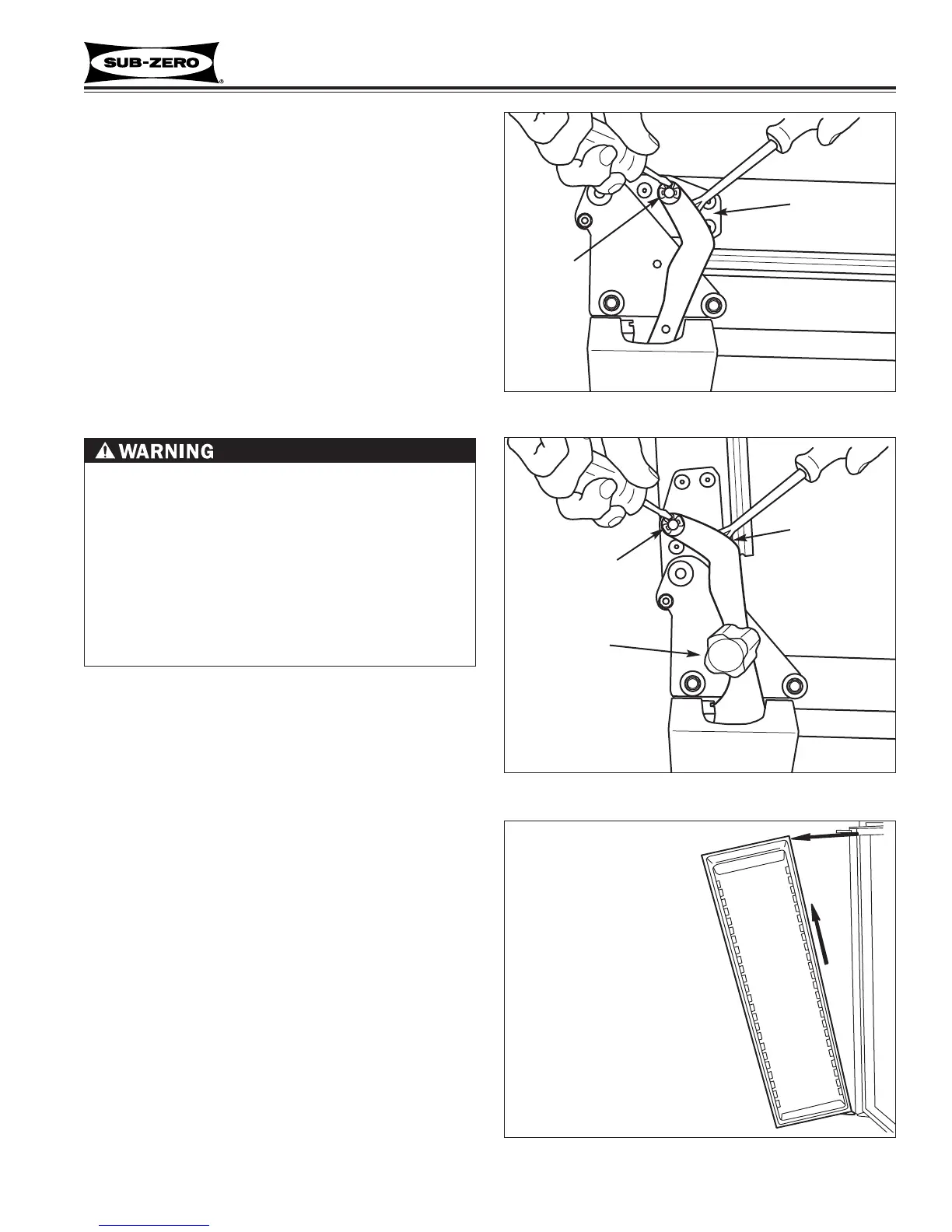

Figure 7-23. Door Closer
Remove
E-Ring
Pry down
REFRIGERATOR DOORS:
• ON GLASS DOOR MODELS HAVE HEATER
WIRES THAT PASS THROUGH TOP HINGE.
• ON MODELS 685-2 / 695-2 HAVE DISPENSER
WIRES THAT PASS THROUGH TOP HINGE.
FAILURE TO DISCONNECT THESE WIRES DURING
DOOR REMOVAL COULD CAUSE SERIOUS PER-
SONAL INJURY, AND/OR DAMAGE TO APPLIANCE.
SEE APPROPRIATE DOOR REMOVAL PROCE-
DURES ON FOLLOWING PAGE.
To remove a door, the door closer assembly must be
disconnected fist (excluding 611-2 and 650-2).
Door Closer Disconnection - To disconnect a door
closer (See Figure 7-24):
1. Open door until hole in bottom cabinet hinge aligns
with hole in door closer arm.
2. Insert short screwdriver up into the two holes.
NOTE: This screwdriver will be used to pry the
door closer arm back onto the door hinge stud.
3. Use a small straight-blade screwdriver to remove E-
ring which holds door closer arm to bottom door
hinge stud.
4. Pry door closer arm down off of door hinge stud.
Door Removal - To remove a door (See Figure 7-25):
1. Remove hinge-side door trim, if applicable.
2. With a 1/8” Allen-wrench and Phillips screwdriver,
extract all screws from top door hinge.
3. Lean door away from unit and lift off of bottom cabi-
net hinge.
NOTE: When reinstalling door, use screwdriver in
cabinet hinge hole and door closer arm hole to pry
door closer arm back onto the door hinge stud.
Figure 7-24. Door Closer Disconnect
Remove
E-Ring
Pry down
Screwdriver
up into holes
Figure 7-25. Door
Lean door away
from unit and lift up
