7-28
Component Access / Removal
Built-In
Built-In
(600-
(600-
2
2
)
)
Series
Series
#3758407 - Revision B - August, 2006
Control Panel Assembly (601F-2)
The control panel assembly is secured to the ceiling of
the compartment by two rows of screws. The front row
of screws (which are hidden) pass through spacers and
fit into keyhole slots in the panel assembly. The back
row of screws hold the assembly in place.
To remove a control panel assembly, the light diffuser
must be removed first, then (See Figure 7-65):
1. Disconnect membrane switch ribbon cable from
control board.
NOTE: Observe orientation of membrane switch
ribbon cable so it can be reconnected correctly.
2. Detach control board from control panel assembly.
3. Extract back row of screws from panel assembly.
4. Push panel assembly back to line up front row of
screws with keyhole slots.
5. Lower panel assembly down and pull out.
Freezer Evaporator Fan Shroud Assembly (601F-2)
The Evaporator fan shroud assembly is secured to the
ceiling of the compartment with screws.
To remove the evaporator fan shroud assembly, the
light diffuser, freezer glass shelf and evaporator cover
must be removed first, then (See Figure 7-66):
1. Extract mounting screws.
2. Lower assembly and disconnect lighting wire har-
ness.
Freezer Evaporator Fan Assembly (601F-2)
Evaporator fan assemblies are secured to the ceiling of
the compartment with screws.
To remove an evaporator fan assembly, the light dif-
fuser, freezer glass shelf, evaporator cover and fan
shroud must be removed first, then (See Figure 7-67):
1. Disconnect fan electrical leads.
2. Extract mounting screws and pull assembly from
unit.

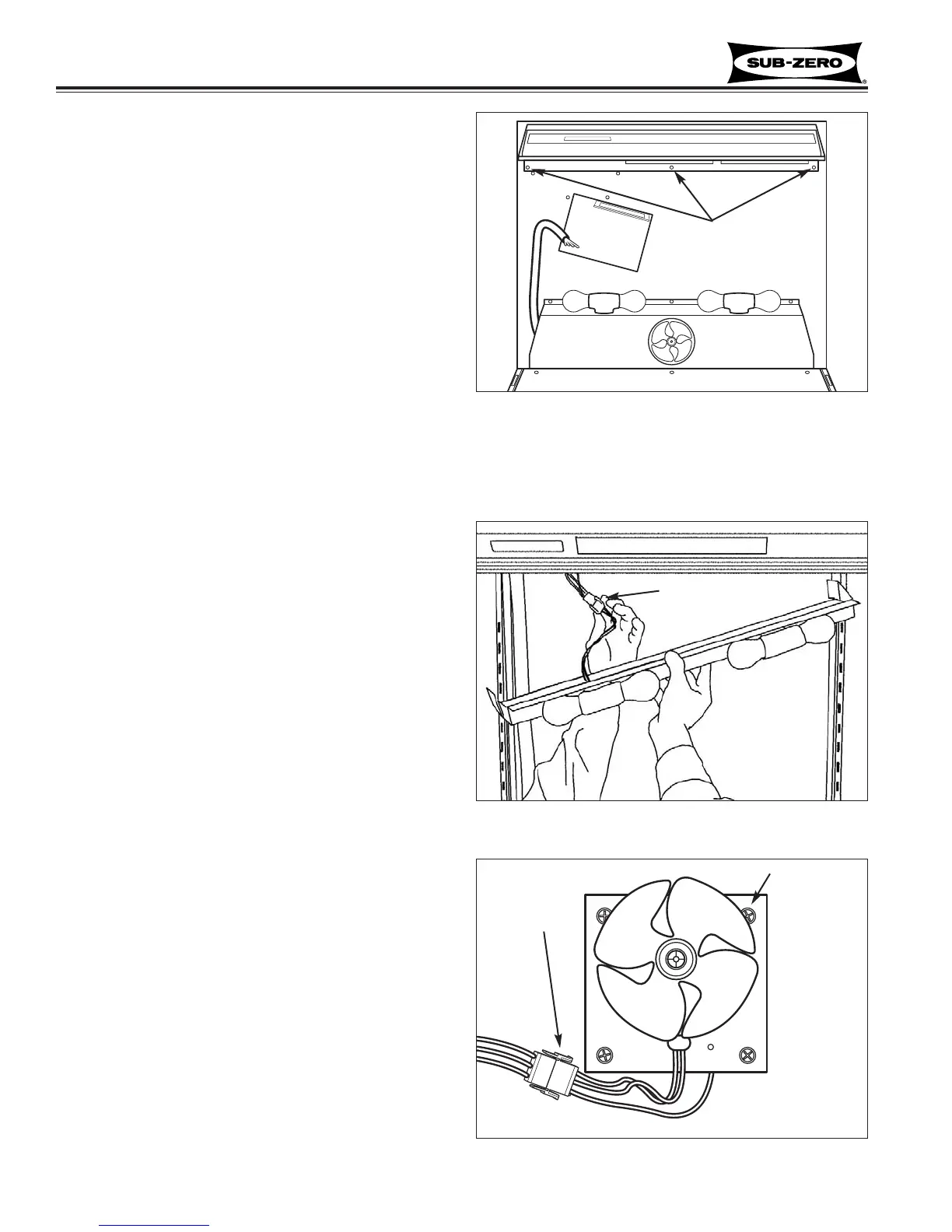

Figure 7-65. View of Compartment Top
Back row
of screws
Control
Board
Figure 7-66. Fan Shroud
Figure 7-67. Evaporator Fan Assembly
Lighting wire harness
Screws (4)
Electrical
leads
