Figure 7-37. Fill Tube Heater (700TCI Shown)
Push grommet from hole
Fill Tube
& Heater
Pull wires through slot
Lower Thermistor Removals
(736TCI)
A screw and P-clamp is used to secure the compart-
ment thermistor to the rear wall, slightly above and to
the right of the evaporator. Another screw and P-clamp
is used to secure the evaporator thermistor to the top
right evaporator bracket.
To remove either thermistor, first remove drawers, left
side drawer slides, heat exchanger cover, lower evapo-
rator cover and the wire cover, then (See Figure 7-35):
1. Extract screw from clamp holding thermistor.
2. Cut thermistor’s wire leads six (6) inches from the
back wall, then pull thermistor from compartment.
Lower Thermistor Removals
(736TFI)
A screw and P-clamp is used to secure the compart-
ment thermistor to the left wall, slightly above and to the
top drawer assembly. Another screw and P-clamp is
used to secure the evaporator thermistor to the top right
evaporator bracket.
To remove either thermistor, first remove drawers, left
side drawer slides, heat exchanger cover and evapora-
tor cover (See Figure 7-36):
1. Extract screw from clamp holding thermistor.
2. Cut thermistor’s wire leads six (6) inches from the
back wall, then pull thermistor from compartment.
Fill Tube Heater Removal
(736TFI & 736TCI)
The fill tube heater wraps around the fill tube. The
heater electrical connections are behind the right side
of the evaporator cover on the model 736TFI and
behind the wire cover on the model 736TCI.
To remove the fill tube heater, first remove drawers, left
side drawer slides, heat exchanger cover, evaporator
cover, and on the 736TCI the wire cover, then (See
Figure 7-37)
1. Disconnect heater’s electrical leads.
2. From behind, push wire grommet from hole and pull
heater wiring through slot in side.
3. Pull heater off of fill tube.

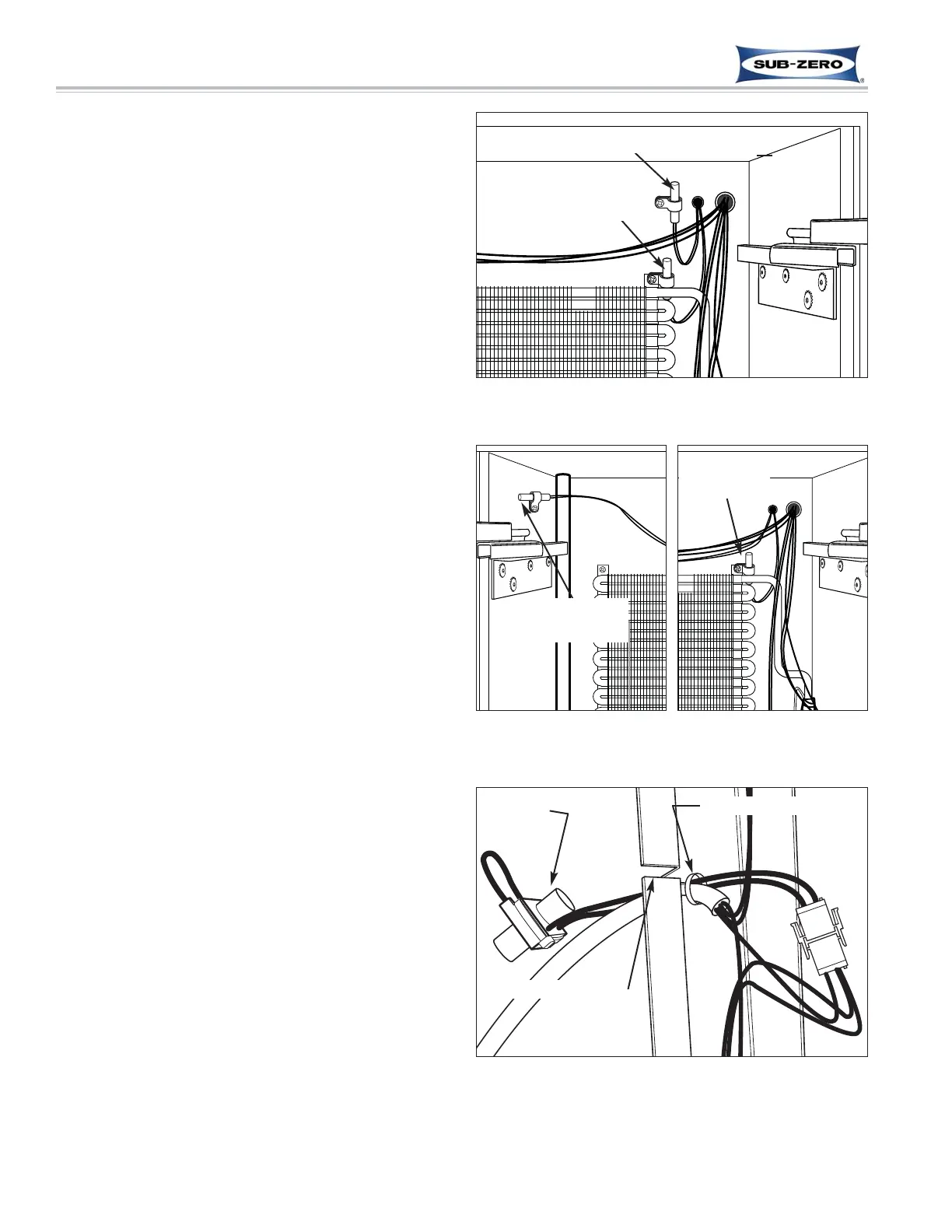

Figure 7-35. Thermistors (736TCI)
Figure 7-36. Thermistors (736TFI)
Evaporator Thermistor
Compartment Thermistor
Compartment
Thermistor
Evaporator
Thermistor
