Sub-Zero 700TC(I) - Door Panel Height Considerations; Valance and Molding Placement

Planning Information
Model 700TC(I)
Dimensions in parentheses are in
millimeters unless otherwise specified.
12
DOOR PANEL HEIGHT
The height of the door panel can grow beyond 45
3
/8"
(1153) and exceed the 80" (2032) overall height, as long as
you stay below the recommended door panel weight limit
of 40 lbs (18 kg) for 27" (868) wide units and 53 lbs
(24 kg) for the Model 736TC(I).
T

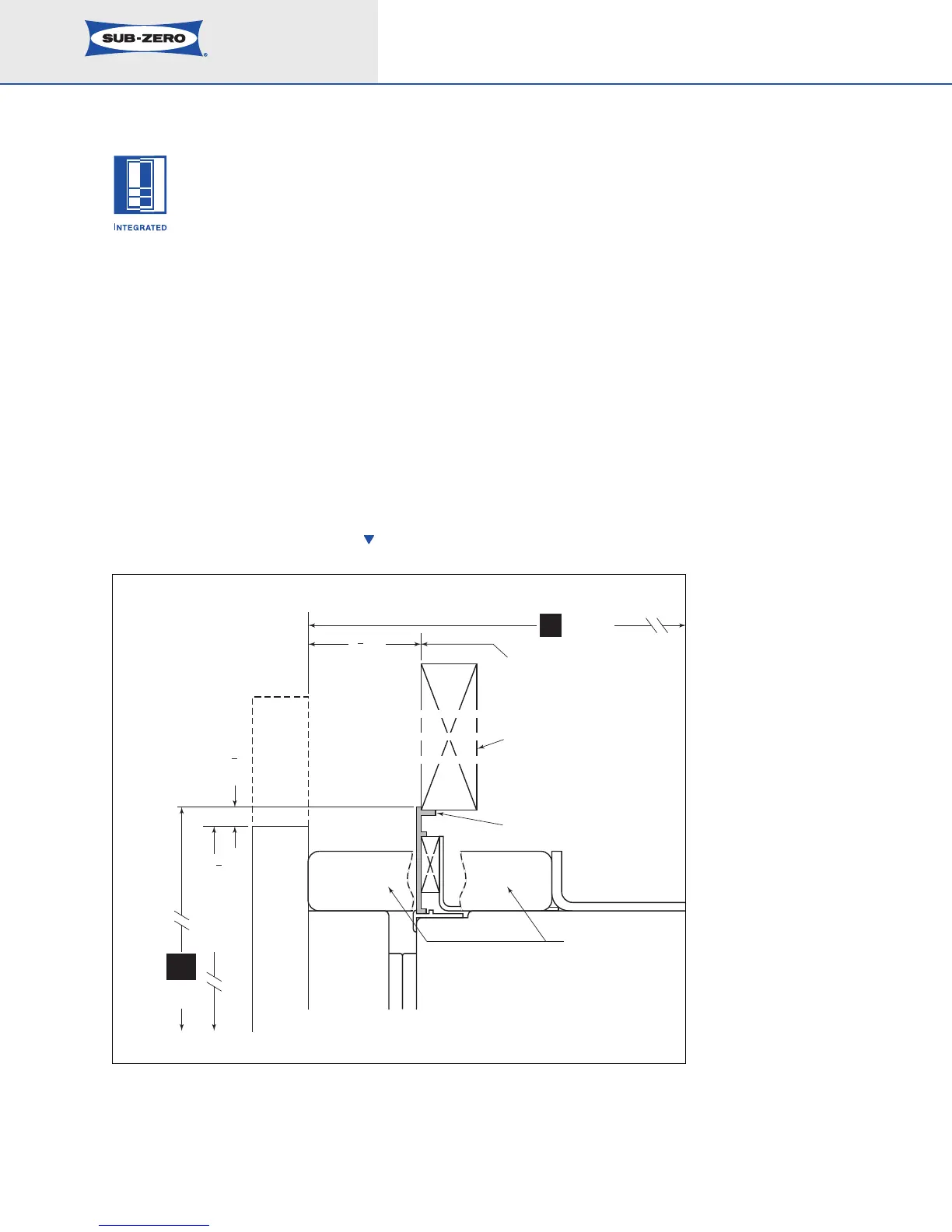

he illustration below shows how the panel may grow and
what you need to consider doing to finish the area in back
of the door panel.
IMPORTANT NOTE: The valance you use to finish the area
behind the door panel must stay behind the front plane of
the finished molding as shown in the illustration.
IMPORTANT NOTE: The depth of each Integrated unit is
24" (610) from the front of the unit to its back. Your
design may necessitate moving the unit back, or cabinets
forward to achieve a flush fit. This will require a minimum
rough opening depth of 25" (635). Refer to the illustration.
45
3
8
(1153)
TO
BOTTOM
OF
DOOR
PANEL
TO
FLOOR
1
4
(6)
1
1
2
(38)
TO WALL
DECORATIVE VALANCE
DECORATIVE VALANCE
CANNOT EXTEND BEYOND
THE FRONT OF THIS PLANE
REMOVABLE MOLDING
BY SUB-ZERO
TOP HINGE
25
(635)
*
FINISHED HEIGHT OF 80" (2032) IS TO TOP OF SUB-ZERO MOLDING
80*
(2032)
UPPER VALENCE DETAIL
