Routing Detail.
MAIN
FRAME
SIDE PANEL
ROUTING
1" (25)
1
7
/8" (48)
1
/8" (3)
1
/2" (13)
Side Panels 29
Side Panels. Side panels can be used with all framed,
overlay, flush inset and stainless steel design applica-
tions. When planning for side panels with the installation
of a built-in model, you need to be aware of the space
configuration to achieve a pleasing fit. Depending on the
exact panel you are using with your unit, the height of the
panel may vary.
IMPORTANT NOTE: The use of side panels may change
the width of your rough opening.
When installing a built-in unit with a custom side panel,
an accessory kit (7003407) is required. Classic stainless
steel and white enamel side panels are also available
through your Sub-Zero dealer.
The side panel will need to be a minimum of 24" (610)
deep and
1
/2" (13) thick. Refer to the side panel dimen-
sions illustration for additional specifications. Routing will
be necessary in order for the side panel to fit flush
against the side of the unit. Refer also to the routing
detail illustration.
IMPORTANT NOTE: If you have a Model BI-30U, BI-30UG,
BI-36U or BI-36UG, extra routing will be necessary to
avoid having the panel hit the refrigerator lower hinge
plate.
84"
(2134)
24" (610)
ROUT TO
3
/16" (5)
(OVER-AND-UNDER
MODELS)
OPTIONAL
TOE KICK
CUT-OUT
4" (102)
20
1
/2"
(521)
5
3
/4"
(146)
1
7
/8"(48)
1" (25)
4
1
/4" (108)
ROUT TO
1
/8" (3)
FRONT
OF SIDE
PANEL
2
5
/8"
(67)

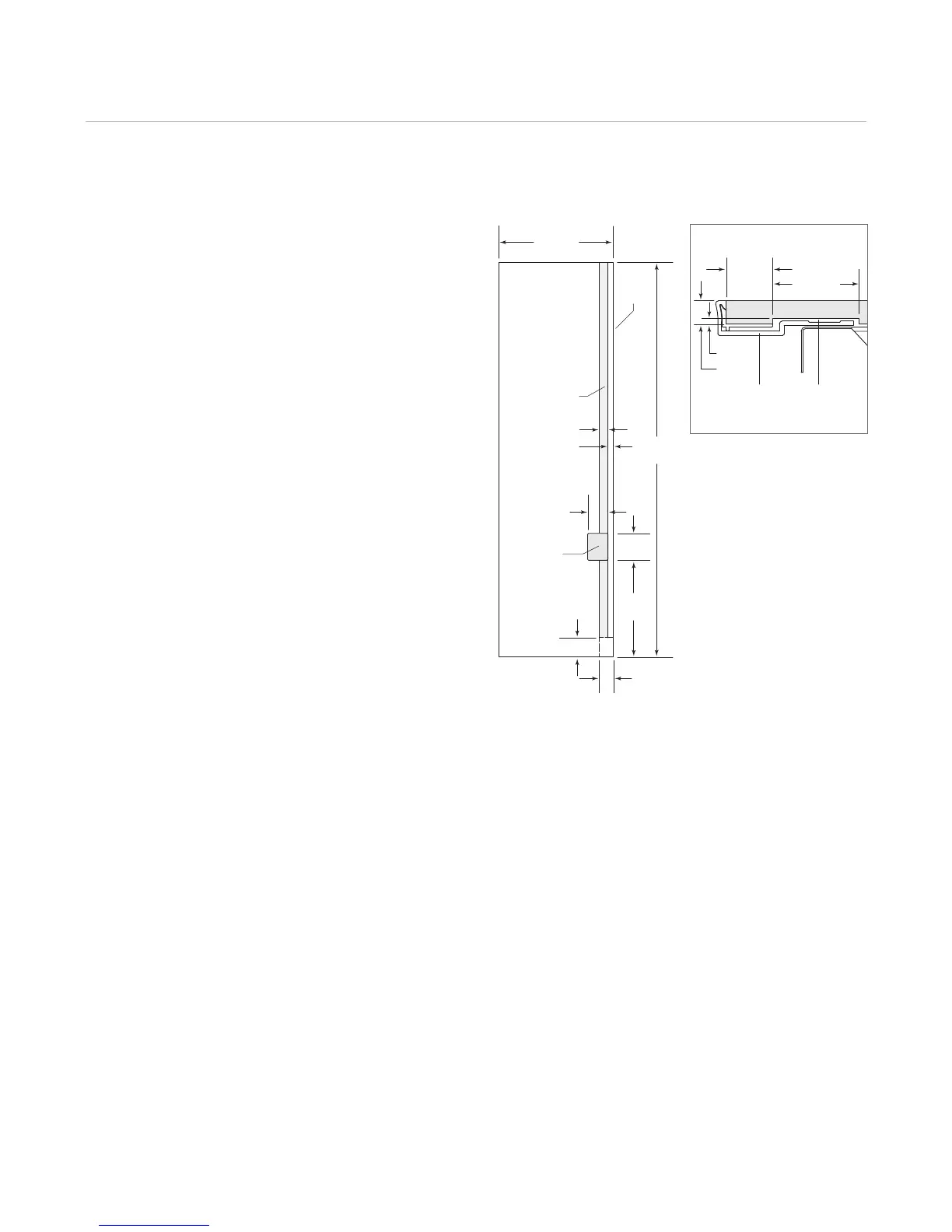

Side panel dimensions.
