Panel Thickness and Handle Profile 38

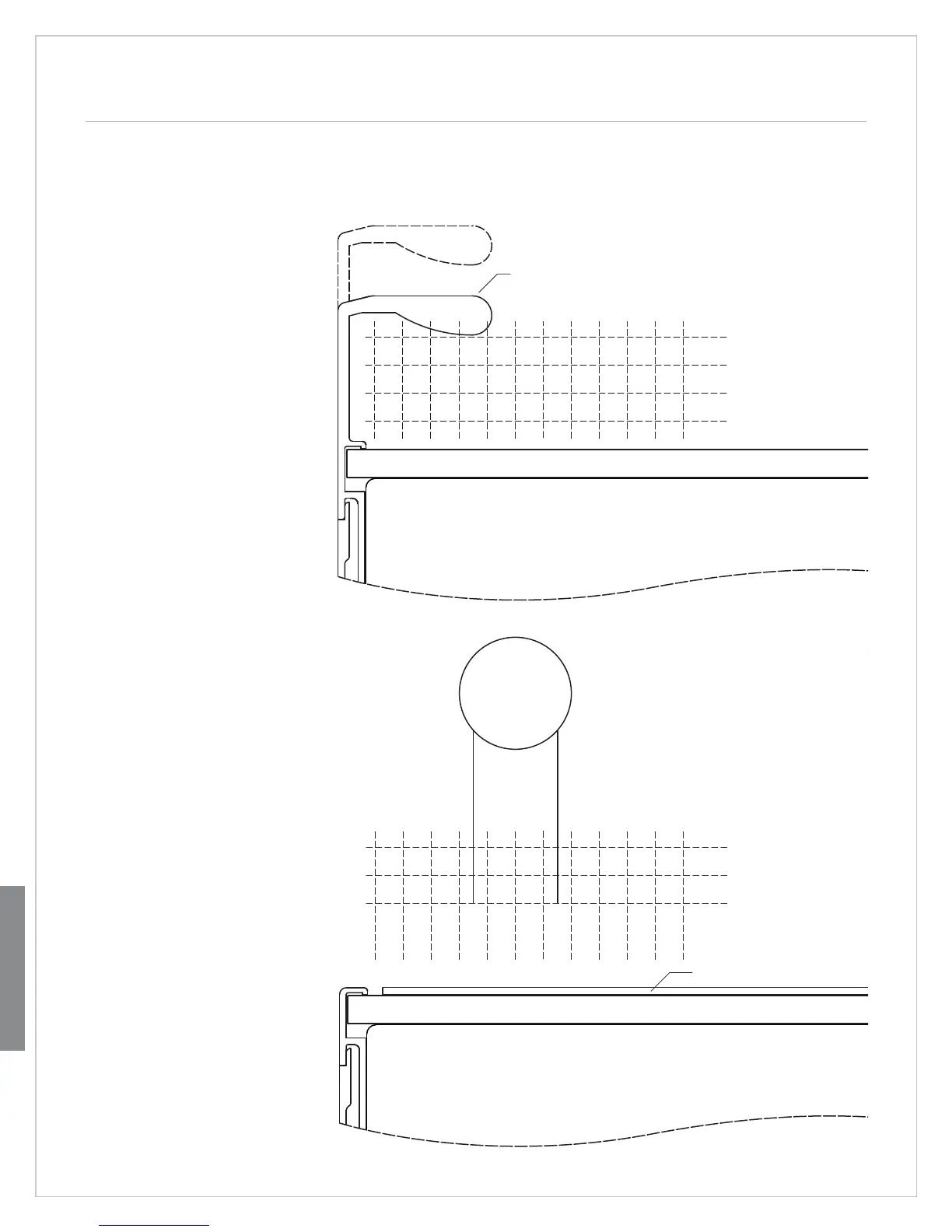

Overlay and Flush Inset.
The bottom full-scale template
shows handle placement and
panel thickness for overlay and
flush inset applications.
IMPORTANT NOTE: Panel thick-
ness does not include the
1
/4"(6)
backer panel and .10" (3) spacer
panel.
IMPORTANT NOTE: The panel
must be a minimum of
5
/8"(16)
thick to support mounting the
handle hardware.
Mount door handles close to the
opening edge of the door for
ease of opening.
Framed. The top full-scale
template shows handle place-
ment and panel thickness for
framed applications.
OPTIONAL EXTENDED
FULL-LENGTH HANDLE
STANDARD
FULL-LENGTH HANDLE
1
/4" (6) FRAMED PANEL
DOOR
1"
(25)
3"
(76)
1
1
/4" (32) PANEL
1" (25) PANEL
1
/2" (13) PANEL
3
/4" (19) PANEL
2"
(51)
1
/4" (6) BACKER PANEL
DOOR
DEPTH OF TUBULAR, CURVED
AND PRO HANDLES
1"
(25)
3"
(76)
1
1
/4" (32) PANEL
1" (25) PANEL
3
/4" (19) PANEL
2"
(51)
.10" (3) SPACER PANEL
Full-Scale Templates
