subzero.com/specs
|
81
WINE STORAGE
DOOR CLOSED
UNDERCOUNTER
UNIT
ADJACENT
CABINETRY
3
/4" (19) DOOR PANEL
1
/2"
(13)
1
/8" (3)
1
/4"
(6)
HINGE AT 145°
OPENING
(DOOR OPENS PAST 145°)
1" (25)0"
SCALE

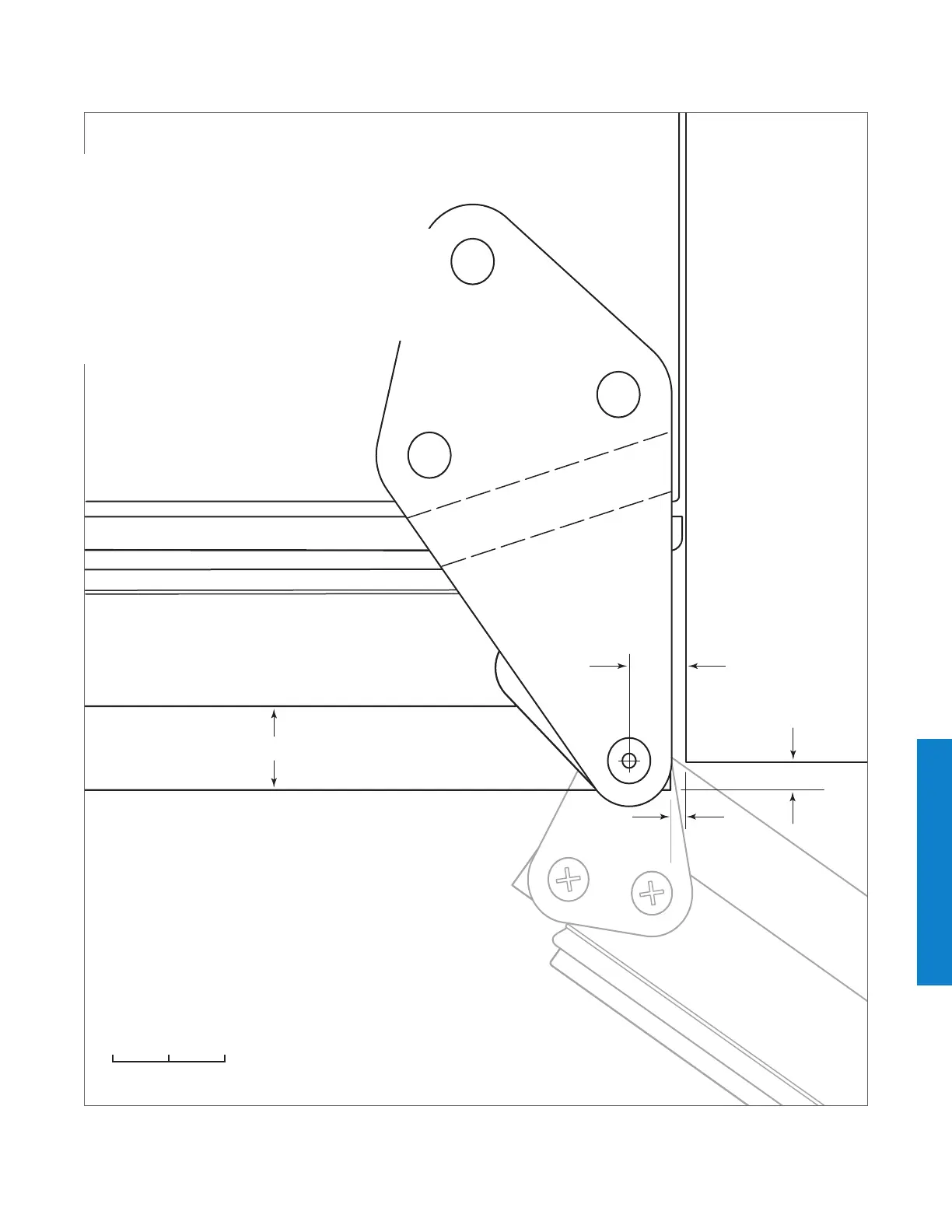

145° door opening (top view).
Door Clearance—424G | UW-24
FULL-SCALE TEMPLATE
To allow for a 145° door opening, the unit should extend
a minimum of
1
/4" (6) beyond the front surface of adja-
cent cabinetry. The unit can be installed ush, however,
there is potential for interference with the panel if the
door is opened past 90°.
BUILT-IN PRO 48 INTEGRATED WINE UNDERCOUNTER
