WINE STORAGE
1
1
/4" (32)
FILLER STRIP
APPROX PROFILE OF
STAINLESS STEEL WRAPPED
DOOR AND HANDLE
DOOR
OPEN 110°
DOOR
CLOSED

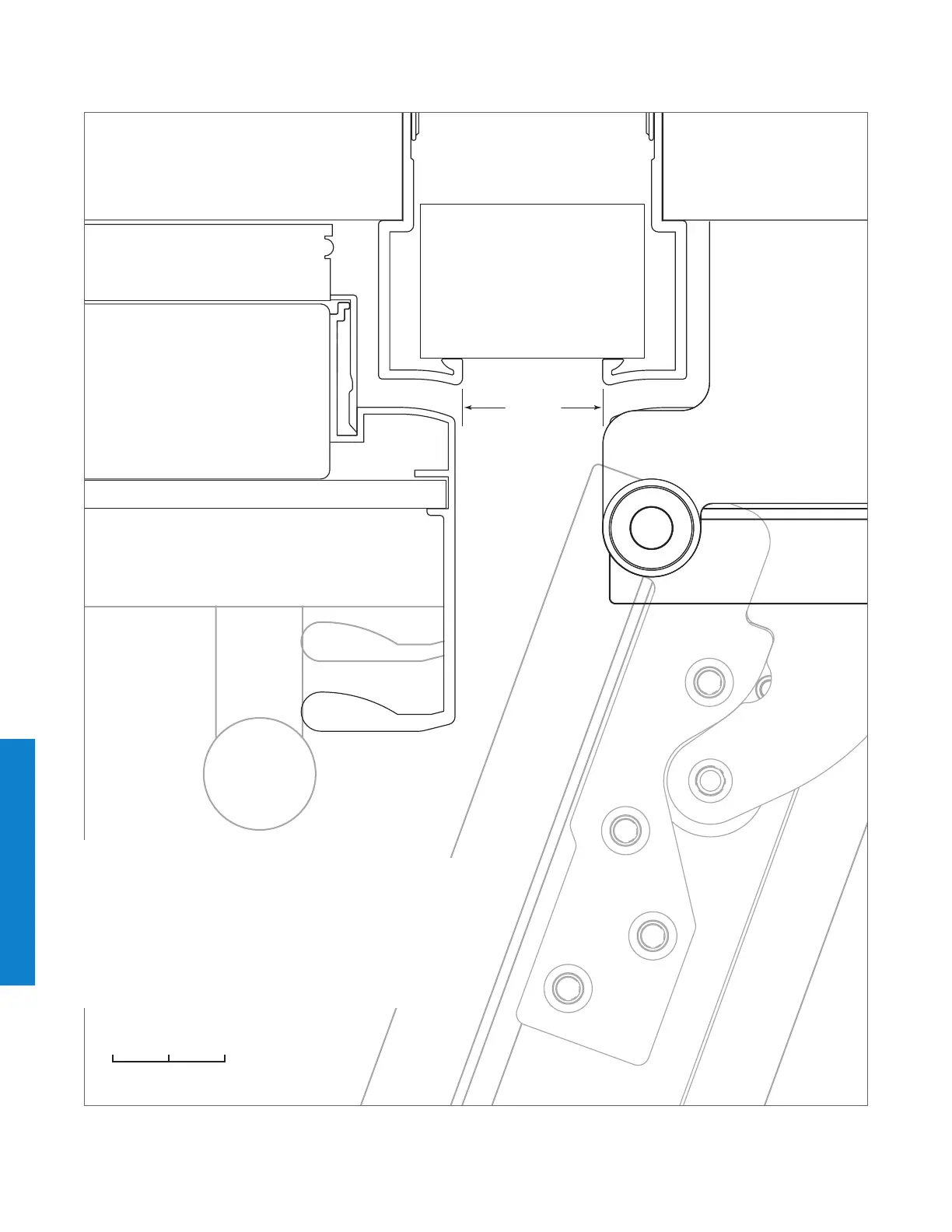

Dual standard installation (top view).
Dual Standard Installation—WS-30 | BW-30
FULL-SCALE TEMPLATE
Typical framed, overlay or stainless steel dual installation
with ller strip at maximum 110° door opening. Panel thick-
ness may require a 90° door stop.
1" (25)0"
SCALE
