Sub-Zero Built-in Series User Manual

BI SERIES
DRAWER
EXISTING
DRAWER
PANEL
BOTTOM
TRIM
SIDE TRIM
FILLER (2)
TOP TRIM
SCREWS
SCREW COVER
2
1
2
3
4
5
SCREWS

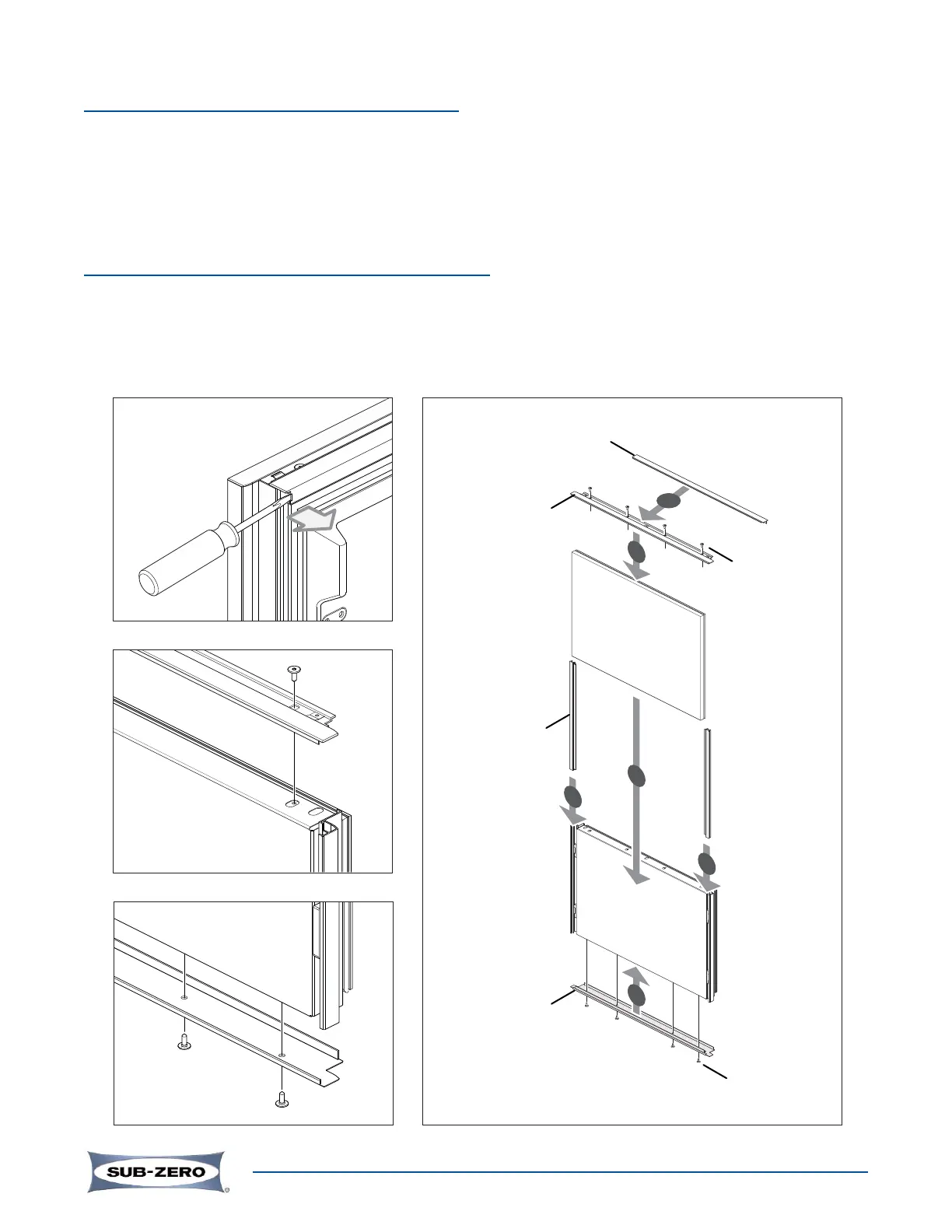

Figure 7. Drawer Component Installation
Built-In Series Overlay Door Panel Retro-Fit Kit - For Over/Under Models
(7003402, 7003403)
7007804 / Rev A / January, 2008
Page 2 of 3
SCREW COVER
HANDLE-SIDE TRIM
FREEZER DRAWER TRIM REMOVAL PROCEDURE:
1. At the back right-hand side of the top drawer trim, insert a flat blade screwdriver into the notch in the screw
cover and pry the cover away form the top trim, disengaging it from the top trim (See Figure 4).
2. With a T-20, 6-lobe Torx type bit, extract the top trim mounting screws and pull the top trim from the drawer
(See Figure 5).
3. With a T-15, 6-lobe Torx type bit, extract the bottom trim mounting screws and pull the bottom trim from the
drawer (See Figure 6).
DRA
WER COMPONENTS INST
ALLATION PROCEDURE
(See Figure 7):
1. Install the new Freezer Drawer Bottom Trim reusing the screws just removed in step 3 above.
2. Install both Drawer Side Trim Fillers so that they overlap the side trim and hook up with the bottom Trim.
3. Install the existing 600 series drawer panel.
4. Reattach the top drawer trim.
5. Reinstall the screw cover.
Figure 4. Screw Cover Removal
DRAWER
TOP DRAWER TRIM
Figure 5. Top Trim Removal
DRAWER
BOTTOM TRIM
Figure 6. Bottom Trim Removal

Sub-Zero Built-in Series Specifications

General

Type	Built-in Refrigerator
Brand	Sub-Zero
Series	Built-in Series
Refrigeration Type	Dual Refrigeration
Total Capacity	Varies by model
Refrigerator Capacity	Varies by model
Freezer Capacity	Varies by model
Height	Varies by model
Finish Options	Stainless Steel, Custom Panel Ready
Lighting	LED
Shelving	Adjustable glass shelves
Water Filtration	Yes
Air Purification	Air purification system
Energy Star Qualified	Yes
Energy Star Certified	Yes
Door Bins	Adjustable
Configuration	Varies by model (e.g., Side-by-Side, Over-and-Under)
Smart Features	Varies by model (e.g., Wi-Fi connectivity, Mobile App Control)
