Storage
DRAWER REMOVAL
To remove/install a storage drawer:
1 To remove, pull the drawer open until it stops. Raise the
front of the drawer slightly and pull straight out. Refer
to the illustration below.
2 To install, raise the front of drawer and place onto the
slides. Align the back of the drawer with hooks on the
slide, then align the white pegs at the front of the slide
with holes at the front of the drawer.
IMPORTANT NOTE: For drawer models, the upper drawer
has a control cable that must be disconnected before
removing the drawer. Refer to the illustration below.
Storage Drawers
CRISPER COVER
The crisper cover in the upper storage drawer can be slid
closed, left open, or removed.
To remove the crisper cover:
1 Pull the upper storage drawer all the way out.
2 Raise the front edge of the crisper cover and pull it
forward and out of the drawer. Refer to the illustration
below.
DRAWER DIVIDERS
To reposition a drawer divider:
1 To move a short divider, slide the divider forward or
backward. Refer to the illustration below.
2 For 30" and 36" wide drawers only, one long divider in
the top drawer is adjustable. To remove a long divider,
pull the long divider up until it stops, rotate counter-
clockwise, then pull upward.
3 To install a long divider, align the grooves with the
drawer tabs, rotate clockwise, then slide down.
SHORT DIVIDER

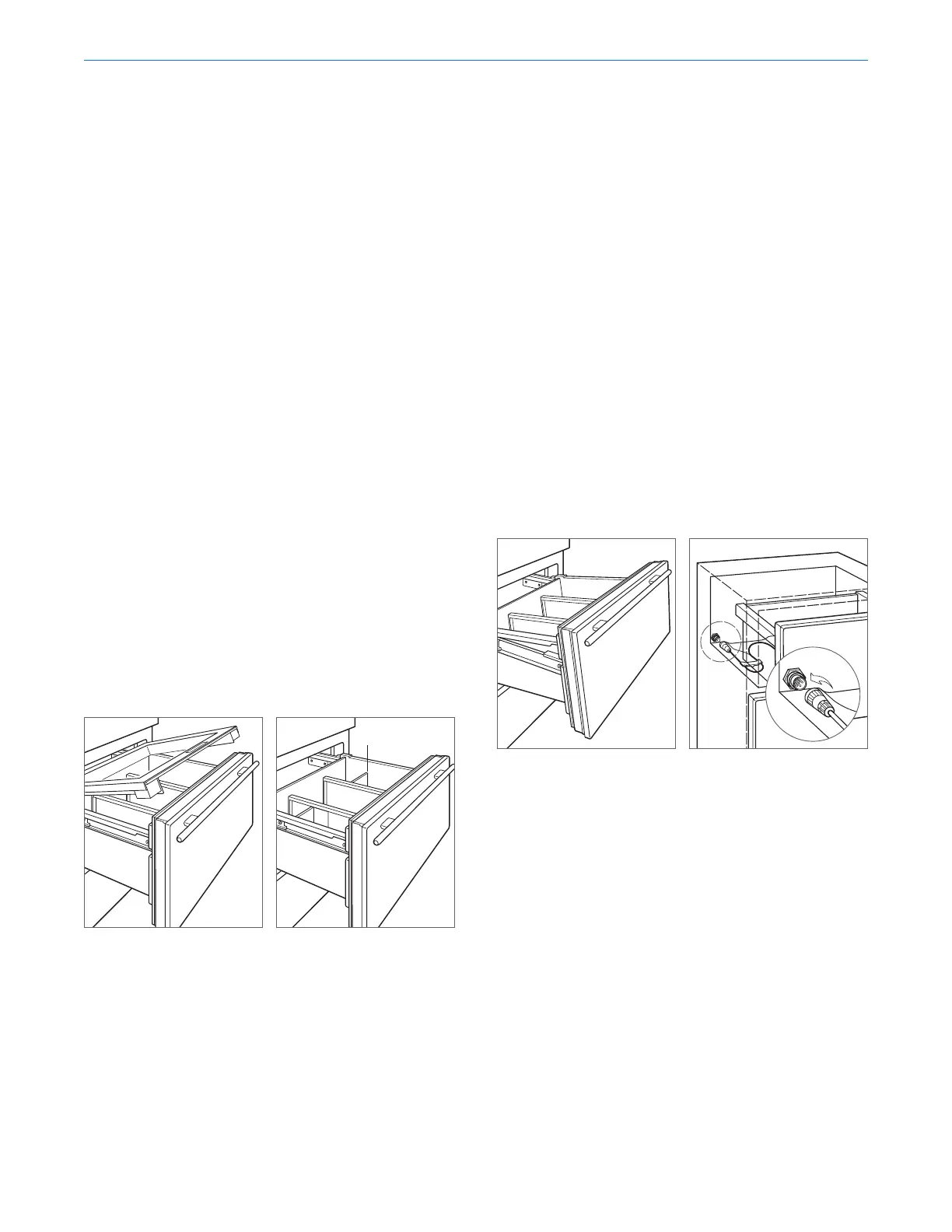

Crisper cover Drawer dividers
Drawer removal Control cable (drawer model)
