Sub-Zero New Designer Series - Page 8

8 | Sub-Zero Customer Care 800.222.7820
Custom Panel

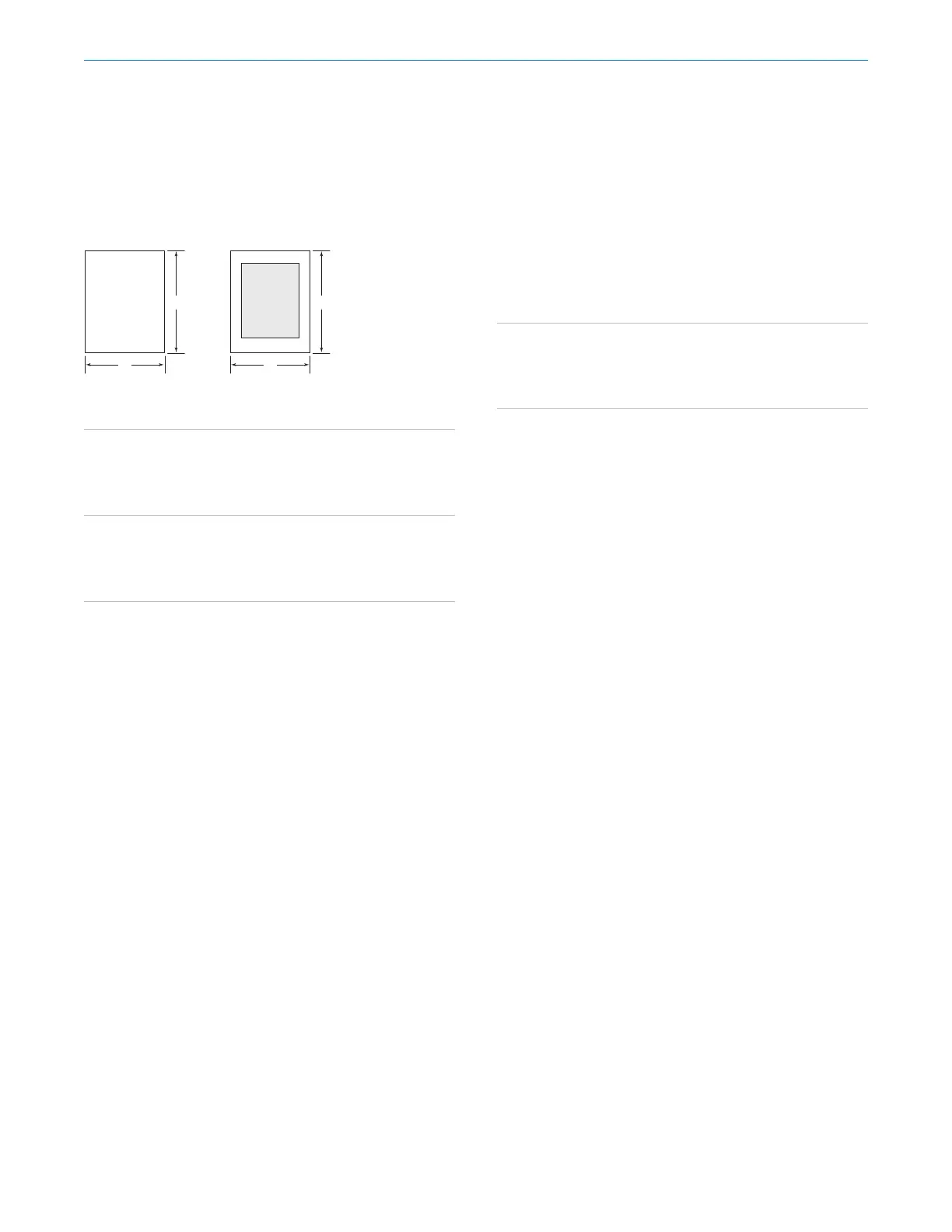

TYPICAL PANEL DIMENSIONS
H
W
H
W
PANEL DIMENSIONS
MODEL W H
24" Model (standard height) 23⁄" (603) 30⁄" (772)
24" Model (ADA height) 23⁄" (603) 28⁄" (721)
15" Model (standard height) 14⁄" (375) 30⁄" (772)
STILES / RAILS MIN*
Stiles 3⁄" (83)
Top Rail 3⁄" (89)
Bottom Rail 4⁄" (114)
*Glass door models only.
DUAL INSTALLATION
For dual installations, refer to the chart below for typical
panel dimensions.
PANEL DIMENSIONS—DUAL INSTALLATION
MODEL W H
24" Model (standard height) 23⁄" (605) 30⁄" (772)
24" Model (ADA height) 23⁄" (605) 28⁄" (721)
15" Model (standard height) 14⁄" (376) 30⁄" (772)
Door Panel
