Electronic Control System
Under Counter (UC-24) Series
3-6
#7003933 - Revision B - November, 2007
Adjusting Set-Point (Temperature Adjustments)
To adjust set-points, press WARMER or COLDER keys on control panel in multiple key strokes
until the desired set-

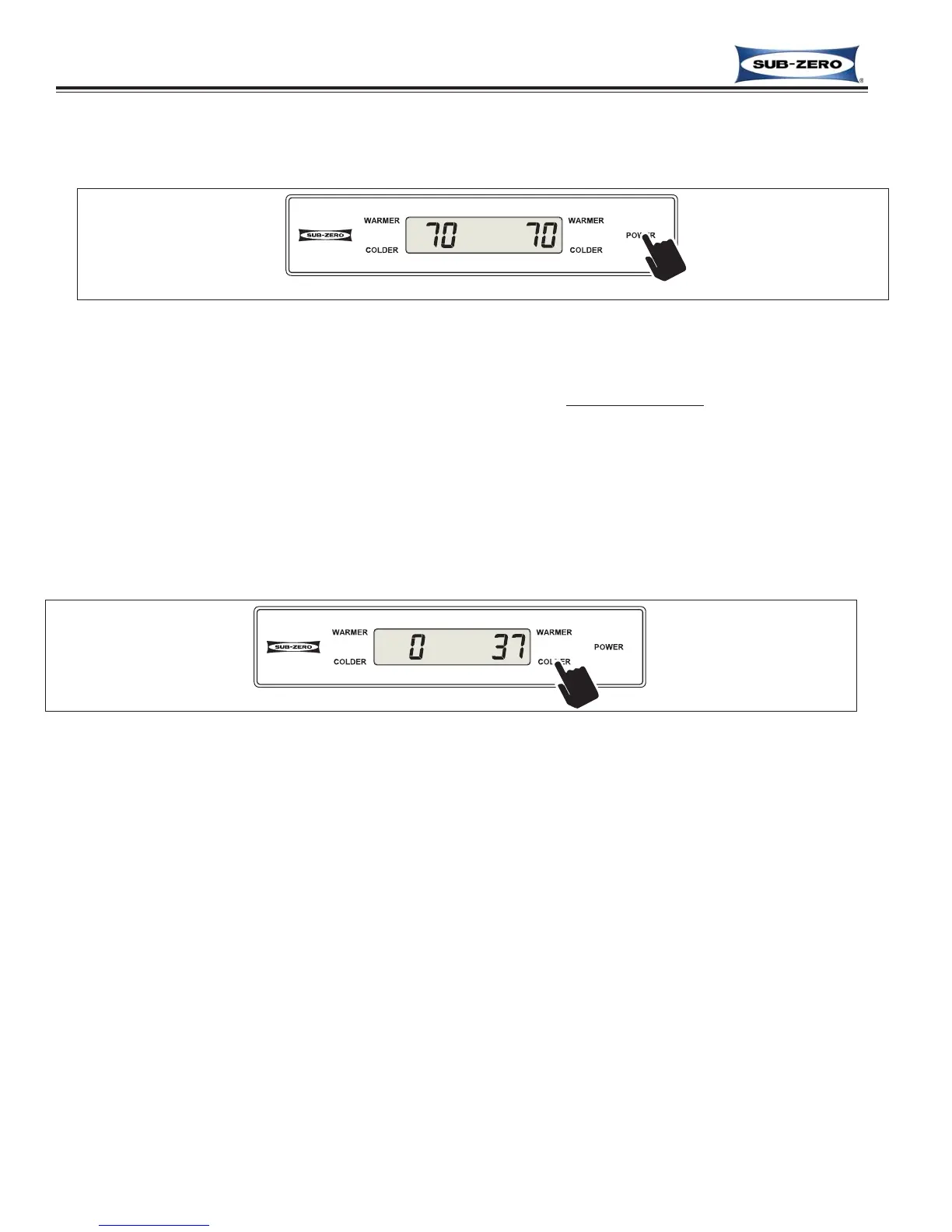

point is achieved. One key stroke equals one degree change (Fahrenheit or Celsius). (See Figure 3-7)
NOTES:
• Temperature ranges are -5°F (-21°C) to +5°F (-15°C) in a freezer zone, +34°F (+1°C) to +45°F (+7°C) in a refriger-
ator zone, with initial set-points of 0°F (-18°C) and +38°F (+3°C), respectively.
• The initial stroke of the WARMER or COLDER keys will change previous set-point by one degree.
• The set-point will be displayed on the LCD for ten (10) seconds after the last WARMER or COLDER key stroke.
After the ten (10) second delay, the zone temperature will be displayed. As the zone temperature changes, the
temperature displayed on the LCD will change by no more than one (1) degree per minute.
