400 Series
400 Series
Component Access and Removal
6-31

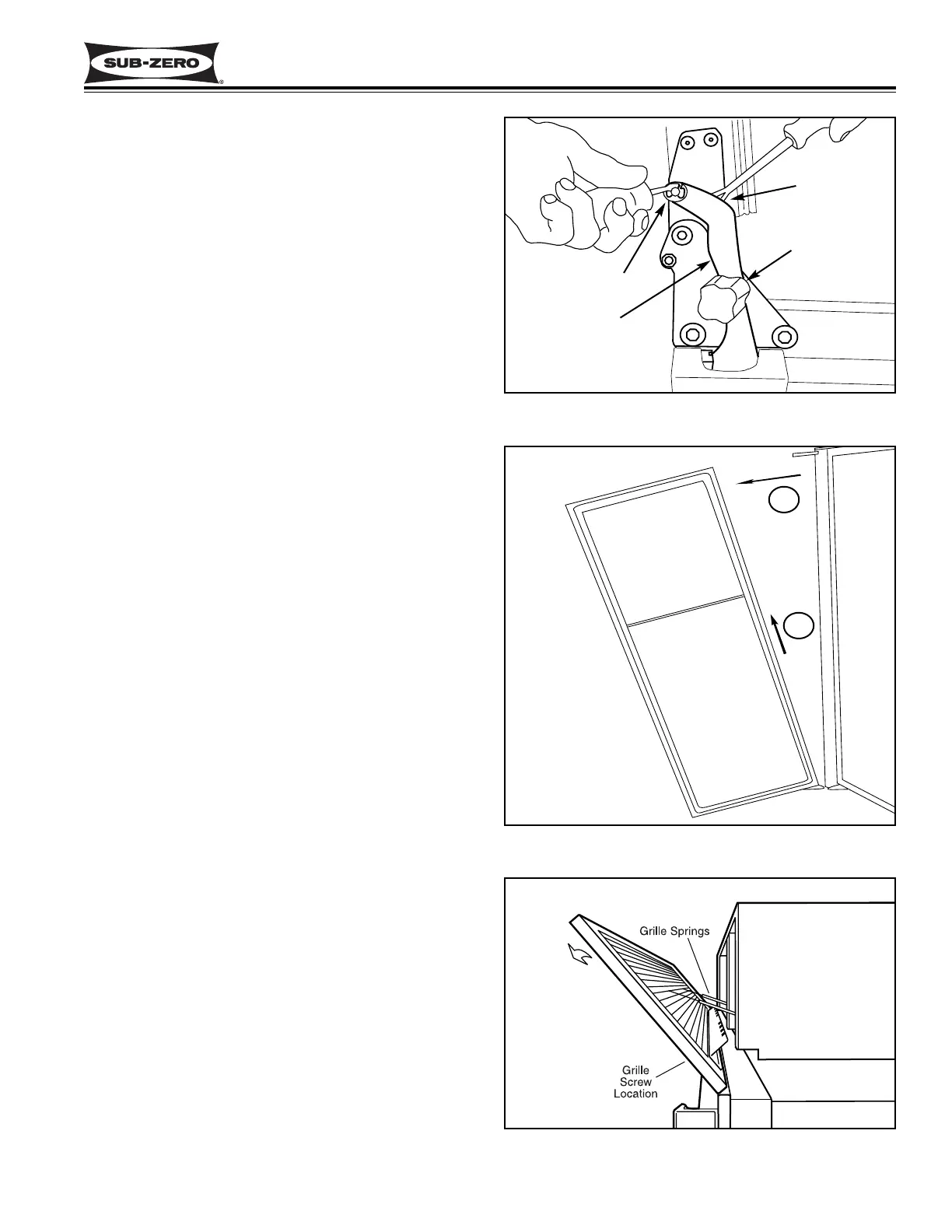

igure 6-67. Disconnecting the Door Closer
Figure 6-68. Door Assembly Removal
1
2
Door Assembly Removal (Model 430)
NOTE: See DOOR CLOSER CAUTION at beginning
of this section.
The door closer must be disconnected from the bot-
tom door hinge in order to remove the door.
Disconnect the door closer from the bottom door
hinge by opening the door until the hole in the door
closer arm aligns with hole in bottom cabinet hinge,
then insert a stubby screwdriver (1/4" diameter or
less) up into the two holes. With a small straight-
blade screwdriver, remove the E-ring which holds the
door closer arm to the stud on the bottom door
hinge. (See Figure 6-67) Then, pry the door closer
arm down off of the door hinge stud.
NOTE: The screwdriver inserted in the holes of the
door closer arm and the bottom cabinet hinge will be
used to pry the door closer arm back into position
when reattaching the door closer to the bottom door
hinge.
With the door closer disconnected, remove the
hinge-side door trim and extract all screws from the
top door hinge, then lift door assembly off of bottom
cabinet hinge. (See Figures 6-68)
Louvered Grille Removal (Model 430)
To remove the louvered grille assembly, open unit
door and extract the grille screws which pass up
through the top mainframe extrusion into brackets at
bottom rear of grille assembly. Now, tilt the top of
grille forward and release the grille springs from the
grille hooks at the back side of the grille. Then lift
grille assembly off. (See Figure 6-69)
Remove E-ring
Pry arm down
Door closer arm
Short Screwdriver
up into holes
Figure 6-69. Louvered Grille Removal
