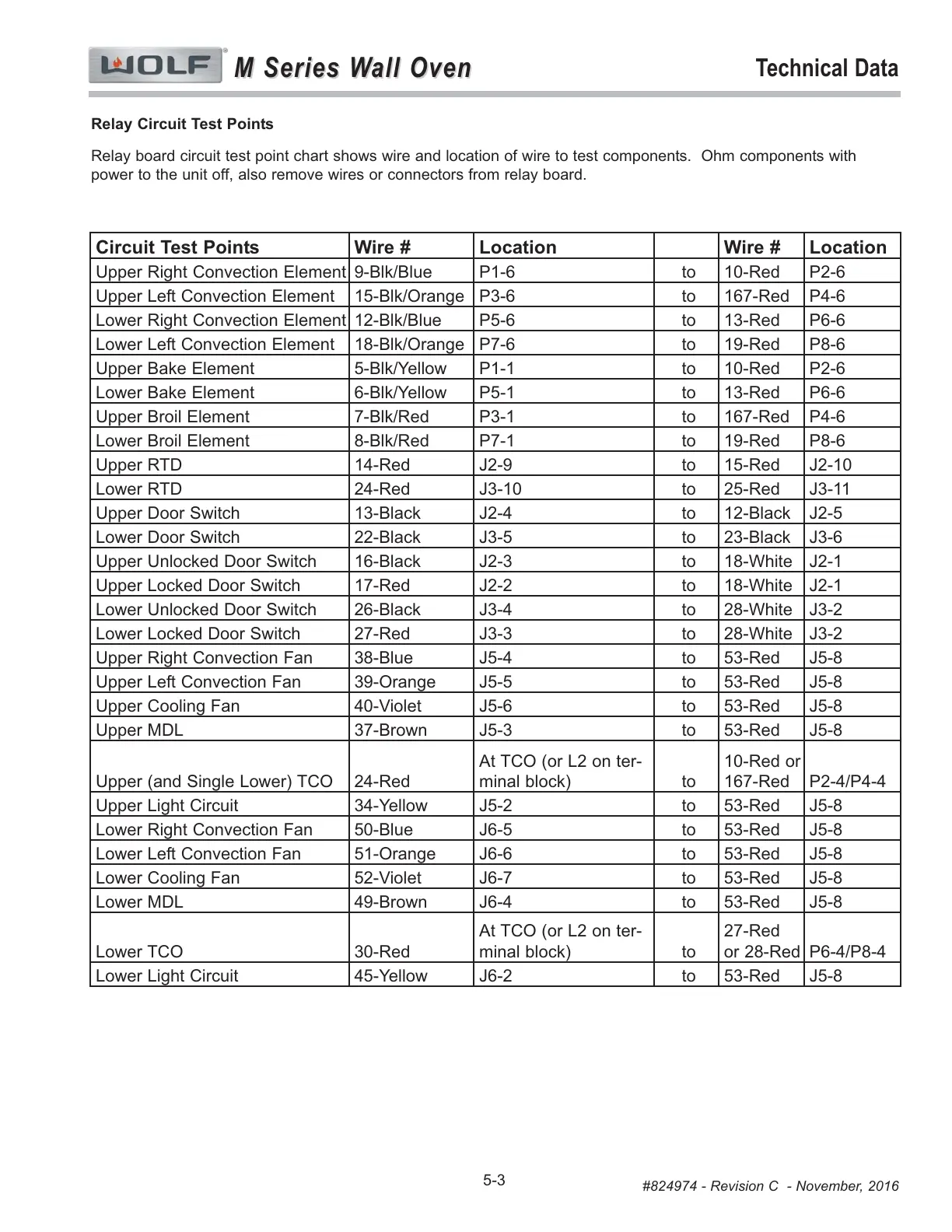

Relay Circuit Test Points
Relay board circuit test point chart shows wire and location of wire to test components. Ohm components with
power to the unit off, also remove wires or connectors from relay board.
Circuit Test Points Wire # Location Wire # Location
Upper Right Convection Element 9-Blk/Blue P1-6 to 10-Red P2-6
Upper Left Convection Element 15-Blk/Orange P3-6 to 167-Red P4-6
Lower Right Convection Element 12-Blk/Blue P5-6 to 13-Red P6-6
Lower Left Convection Element 18-Blk/Orange P7-6 to 19-Red P8-6
Upper Bake Element 5-Blk/Yellow P1-1 to 10-Red P2-6
Lower Bake Element 6-Blk/Yellow P5-1 to 13-Red P6-6
Upper Broil Element 7-Blk/Red P3-1 to 167-Red P4-6
Lower Broil Element 8-Blk/Red P7-1 to 19-Red P8-6
Upper RTD 14-Red J2-9 to 15-Red J2-10
Lower RTD 24-Red J3-10 to 25-Red J3-11
Upper Door Switch 13-Black J2-4 to 12-Black J2-5
Lower Door Switch 22-Black J3-5 to 23-Black J3-6
Upper Unlocked Door Switch 16-Black J2-3 to 18-White J2-1
Upper Locked Door Switch 17-Red J2-2 to 18-White J2-1
Lower Unlocked Door Switch 26-Black J3-4 to 28-White J3-2
Lower Locked Door Switch 27-Red J3-3 to 28-White J3-2
Upper Right Convection Fan 38-Blue J5-4 to 53-Red J5-8
Upper Left Convection Fan 39-Orange J5-5 to 53-Red J5-8
Upper Cooling Fan 40-Violet J5-6 to 53-Red J5-8
Upper MDL 37-Brown J5-3 to 53-Red J5-8
Upper (and Single Lower) TCO 24-Red
At TCO (or L2 on ter-
minal block) to
10-Red or
167-Red P2-4/P4-4
Upper Light Circuit 34-Yellow J5-2 to 53-Red J5-8
Lower Right Convection Fan 50-Blue J6-5 to 53-Red J5-8
Lower Left Convection Fan 51-Orange J6-6 to 53-Red J5-8
Lower Cooling Fan 52-Violet J6-7 to 53-Red J5-8
Lower MDL 49-Brown J6-4 to 53-Red J5-8
Lower TCO 30-Red
At TCO (or L2 on ter-
minal block) to
27-Red
or 28-Red P6-4/P8-4
Lower Light Circuit 45-Yellow J6-2 to 53-Red J5-8
