M Series Wall Oven
M Series Wall Oven
Component Removal
3-2
#824974 - Revision C - November, 2016

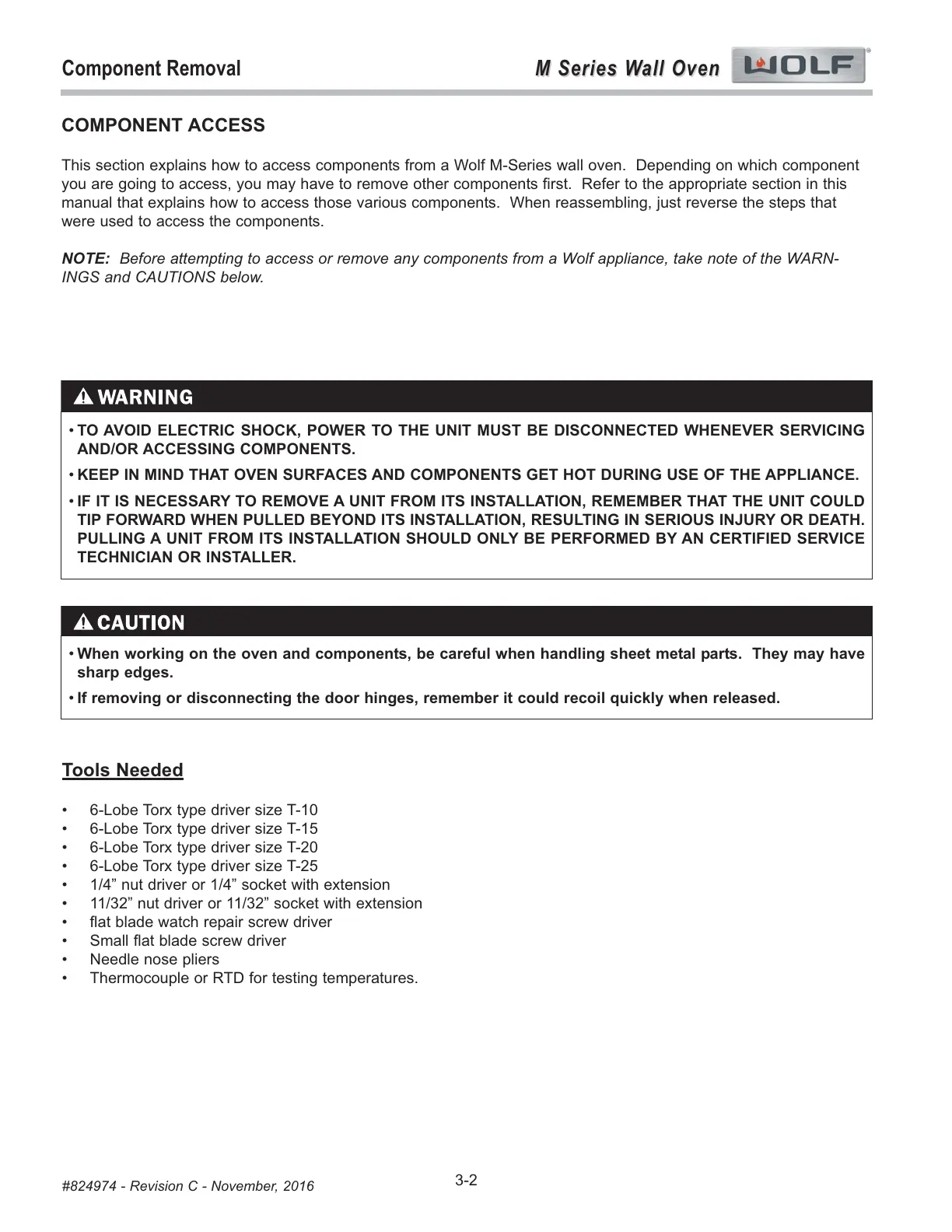

COMPONENT ACCESS
This section explains how to access components from a Wolf M-Series wall oven. Depending on which component
you are going to access, you may have to remove other components first. Refer to the appropriate section in this
manual that explains how to access those various components. When reassembling, just reverse the steps that
were used to access the components.
NOTE: Before attempting to access or remove any components from a Wolf appliance, take note of the WARN-
INGS and CAUTIONS below.
• TO AVOID ELECTRIC SHOCK, POWER TO THE UNIT MUST BE DISCONNECTED WHENEVER SERVICING
AND/OR ACCESSING COMPONENTS.
• KEEP IN MIND THAT OVEN SURFACES AND COMPONENTS GET HOT DURING USE OF THE APPLIANCE.
• IF IT IS NECESSARY TO REMOVE A UNIT FROM ITS INSTALLATION, REMEMBER THAT THE UNIT COULD
TIP FORWARD WHEN PULLED BEYOND ITS INSTALLATION, RESULTING IN SERIOUS INJURY OR DEATH.
PULLING A UNIT FROM ITS INSTALLATION SHOULD ONLY BE PERFORMED BY AN CERTIFIED SERVICE
TECHNICIAN OR INSTALLER.
• When working on the oven and components, be careful when handling sheet metal parts. They may have
sharp edges.
• If removing or disconnecting the door hinges, remember it could recoil quickly when released.
Tools Needed
6-Lobe Torx type driver size T-10•
6-Lobe Torx type driver size T-15•
6-Lobe Torx type driver size T-20•
6-Lobe Torx type driver size T-25•
1/4” nut driver or 1/4” socket with extension•
11/32” nut driver or 11/32” socket with extension•
flat blade watch repair screw driver•
Small flat blade screw driver•
Needle nose pliers•
Thermocouple or RTD for testing temperatures.•
