Component Removal
M Series Wall Oven
M Series Wall Oven
3-3
#824974 - Revision C - November, 2016

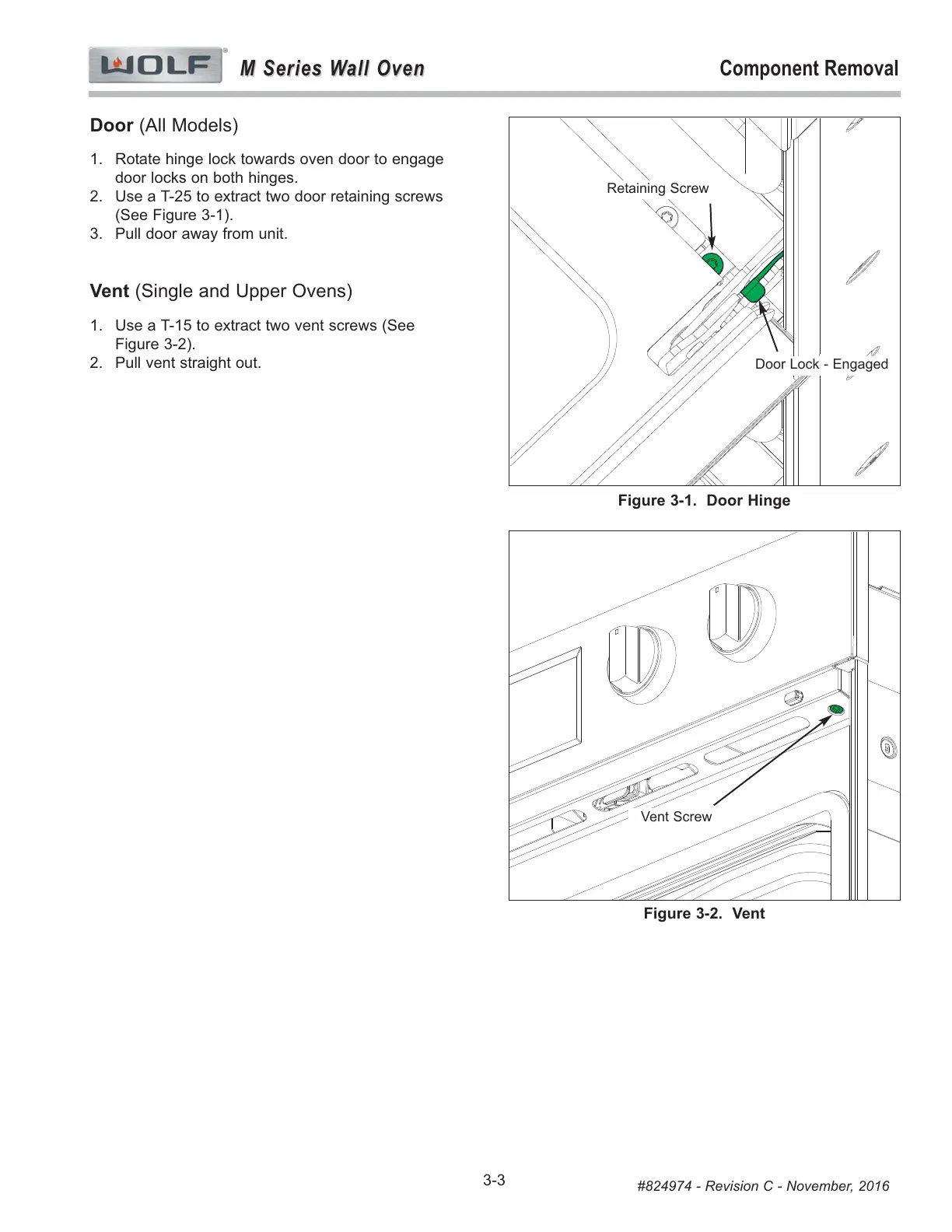

Figure 3-1. Door Hinge
Figure 3-2. Vent
Door (All Models)
1. Rotate hinge lock towards oven door to engage
door locks on both hinges.
2. Use a T-25 to extract two door retaining screws
(See Figure 3-1).
3. Pull door away from unit.
Vent (Single and Upper Ovens)
1. Use a T-15 to extract two vent screws (See
Figure 3-2).
2. Pull vent straight out.
Door Lock - Engaged
Retaining Screw
Vent Screw
