M Series Wall Oven
M Series Wall Oven
Component Removal
3-4
#824974 - Revision C - November, 2016

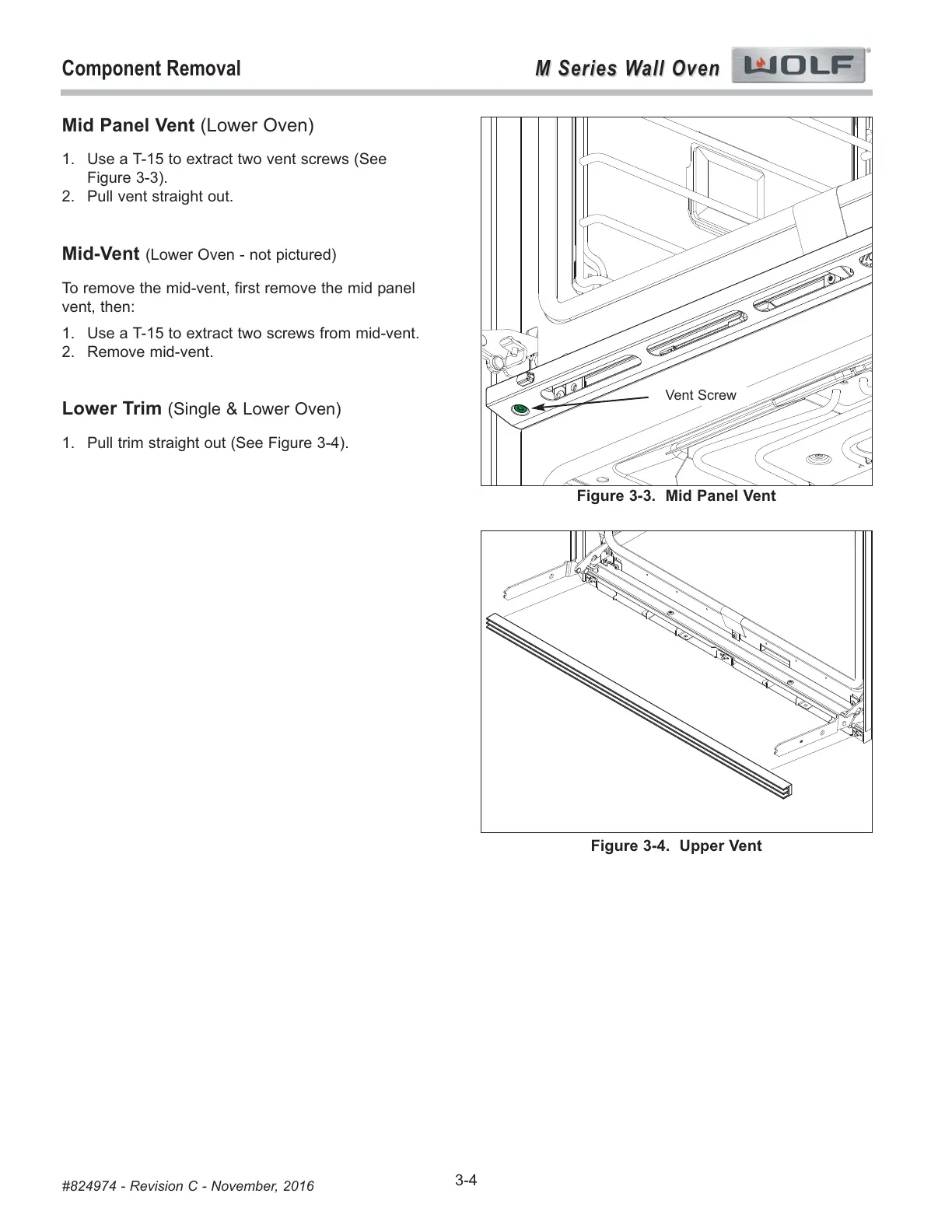

Mid Panel Vent (Lower Oven)
1. Use a T-15 to extract two vent screws (See
Figure 3-3).
2. Pull vent straight out.
Mid-Vent (Lower Oven - not pictured)
To remove the mid-vent, first remove the mid panel
vent, then:
1. Use a T-15 to extract two screws from mid-vent.
2. Remove mid-vent.
Lower Trim (Single & Lower Oven)
1. Pull trim straight out (See Figure 3-4).
Figure 3-3. Mid Panel Vent
Vent Screw
Figure 3-4. Upper Vent
