Component Removal
M Series Wall Oven
M Series Wall Oven
3-5
#824974 - Revision C - November, 2016

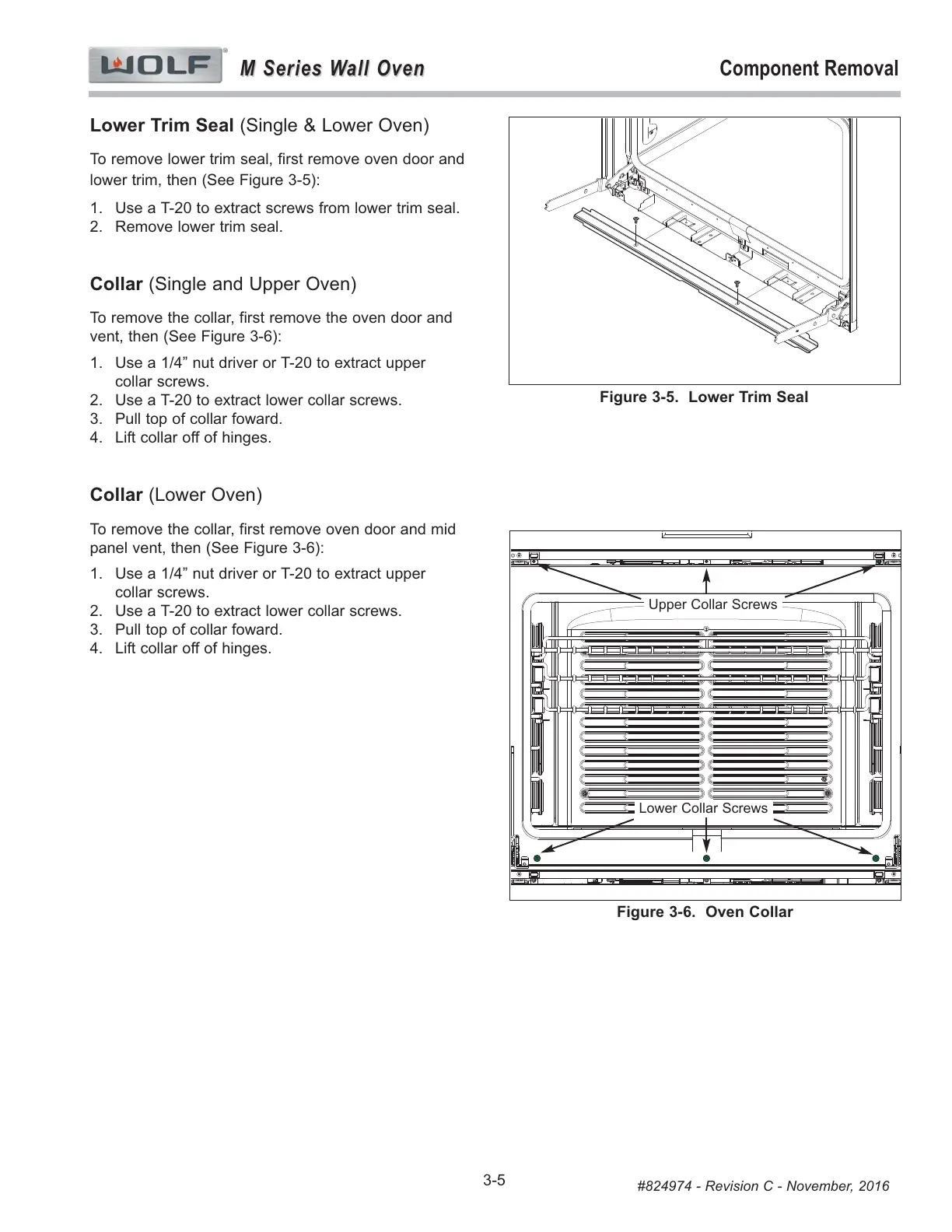

Lower Trim Seal (Single & Lower Oven)
To remove lower trim seal, first remove oven door and
lower trim, then (See Figure 3-5):
1. Use a T-20 to extract screws from lower trim seal.
2. Remove lower trim seal.
Collar (Single and Upper Oven)
To remove the collar, first remove the oven door and
vent, then (See Figure 3-6):
1. Use a 1/4” nut driver or T-20 to extract upper
collar screws.
2. Use a T-20 to extract lower collar screws.
3. Pull top of collar foward.
4. Lift collar off of hinges.
Collar (Lower Oven)
To remove the collar, first remove oven door and mid
panel vent, then (See Figure 3-6):
1. Use a 1/4” nut driver or T-20 to extract upper
collar screws.
2. Use a T-20 to extract lower collar screws.
3. Pull top of collar foward.
4. Lift collar off of hinges.
Figure 3-5. Lower Trim Seal
Figure 3-6. Oven Collar
Upper Collar Screws
Lower Collar Screws
