Component Removal
3-6
#824974 - Revision C - November, 2016
Figure 3-8. Gasket
Gasket
Retaining Screws
Door Hinge (Single Oven)
To remove door hinge, first remove the collar, lower trim
and lower trim seal, then (See Figure 3-7):
1. Use a T-15 to extract screw from below door hinge
arm.
2. Pull door hinge straight out.
Door Hinge (Upper Oven)
To remove door hinge, first remove the collar, mid panel
vent and mid-vent, then (See Figure 3-7):
1. Use a T-15 to extract screw from below door hinge
arm.
2. Pull door hinge straight out.
Door Hinge (Lower Oven)
To remove door hinge, first remove the collar, lower
trim, mid-vent and lower trim seal, then (See Figure 3-
7):
1. Use a T-15 to extract screw from below door hinge
arm.
2. Pull door hinge straight out.
Gasket (Single Oven)
To remove the gasket, first remove the collar and lower
trim, then (See Figure 3-8):
1. Use a T-15 to loosen gasket retaining clips.
2. Remove gasket.
Gasket (Upper Oven)
To remove the gasket, first remove the collar and mid
panel vent, then (See Figure 3-8):
1. Use a T-15 to loosen gasket retaining clips.
2. Remove gasket.
Gasket (Lower Oven)
To remove the gasket, first remove the collar, mid panel
vent and lower trim, then (See Figure 3-8):
1. Use a T-15 to loosen gasket retaining clips.
2. Remove gasket.

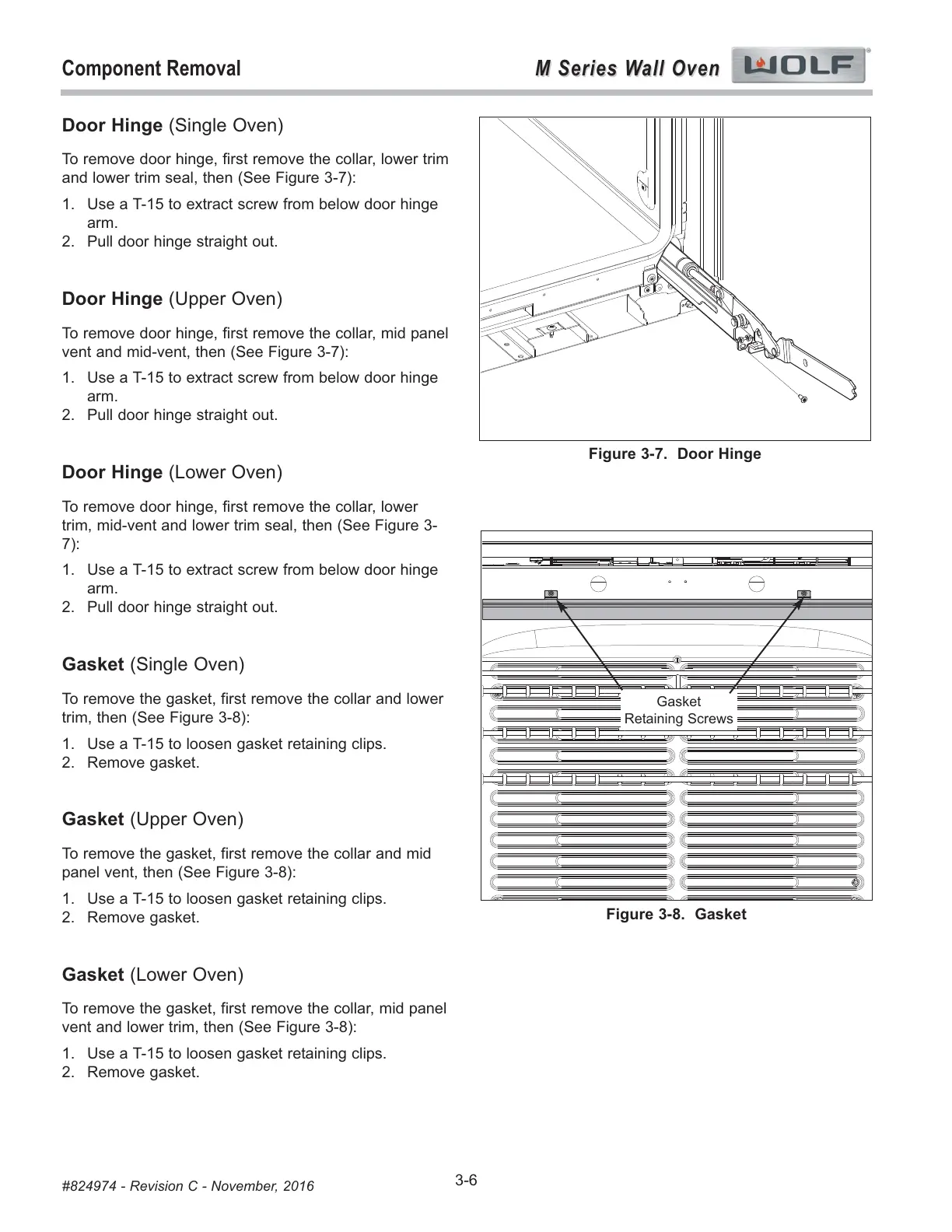

Figure 3-7. Door Hinge
