Sub-Zero Wolf M Series

#824974 - Revision C.1 - December, 2019
6-5
Wire Diagrams/Schematics
M Series Wall Oven
M Series Wall Oven
    




 
 

 






 
 

 


 


 













 





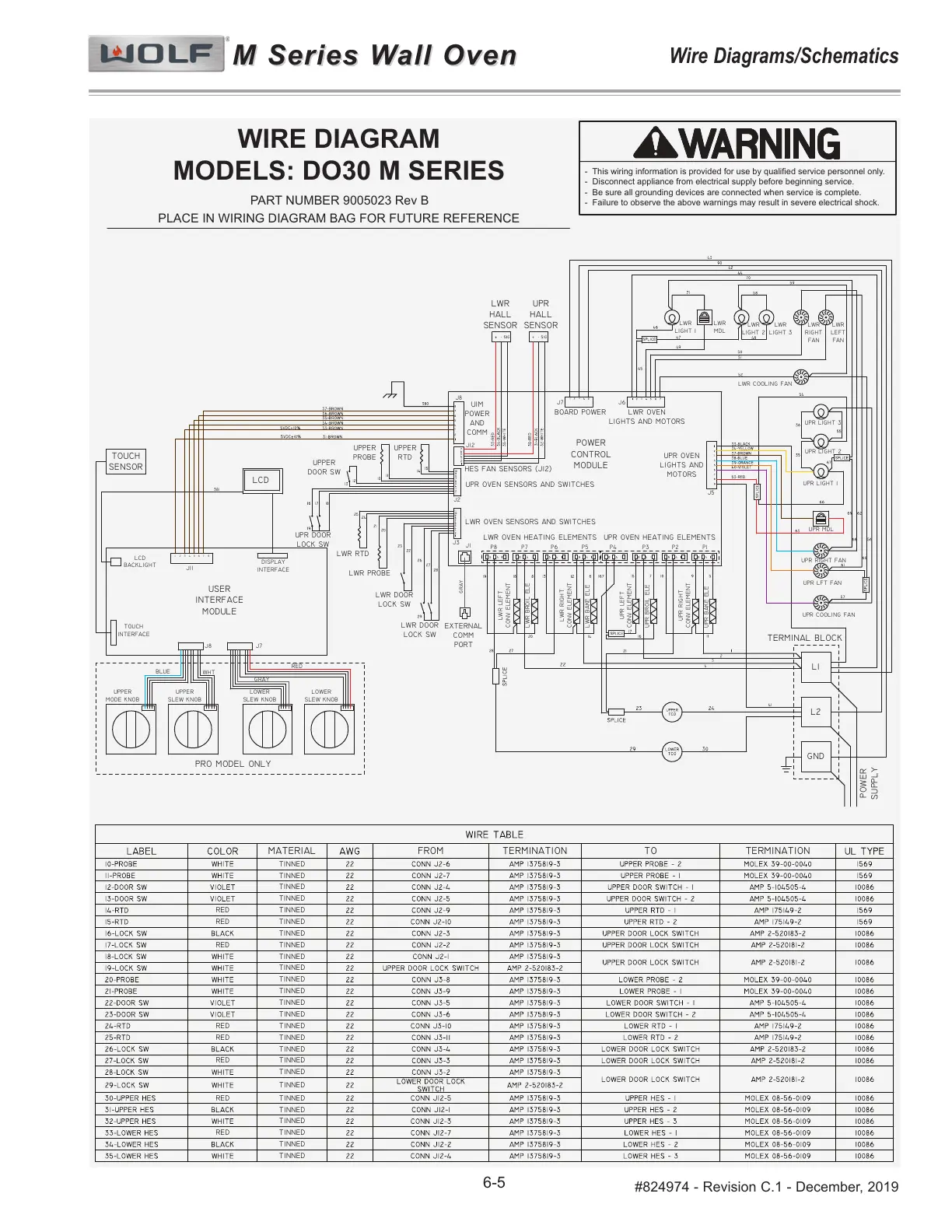

WIRE DIAGRAM
MODELS: DO30 M SERIES
PLACE IN WIRING DIAGRAM BAG FOR FUTURE REFERENCE
PART NUMBER 9005023 Rev B













































  









       
 


















































- This wiring information is provided for use by qualified service personnel only.
- Disconnect appliance from electrical supply before beginning service.
- Be sure all grounding devices are connected when service is complete.
- Failure to observe the above warnings may result in severe electrical shock.
