IMPREZA U.S.A. (E)
10-54
OM-H0240

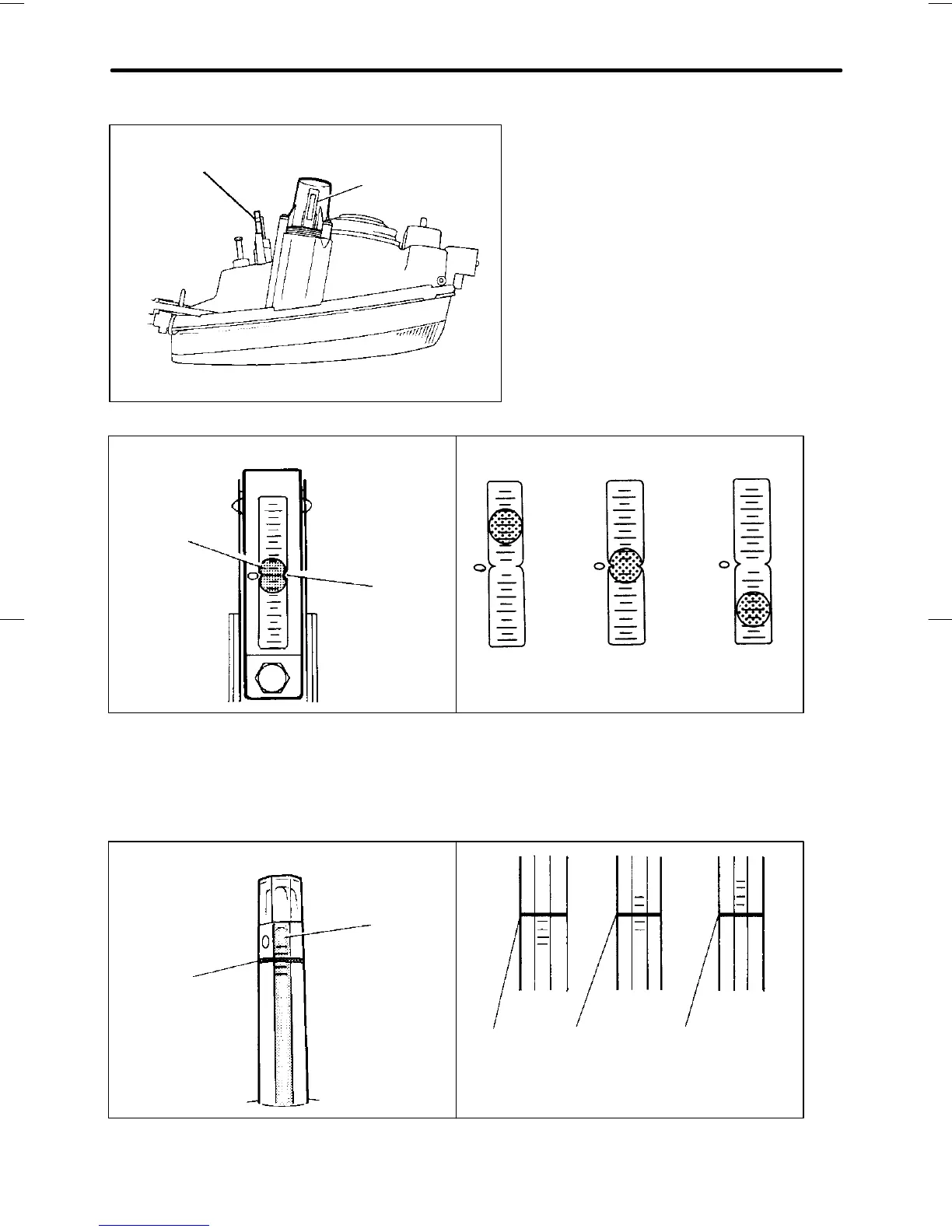

Horizontal beam
angle gauge
Vertical beam
angle gauge
HG0179
Vertical beam angle gauge
OM-H0379
Acceptable Acceptable
Center
mark
Bubble
1. Look at the vertical beam angle gauge. The bubble on the gauge
should not deviate from the center of the gauge by more than four seg-
ments on either side of the gauge.
HG0180
Horizontal beam angle gauge
OM-H0380
Red line
Red line
Red line Red line
Inner
scale
Acceptable
Acceptable
