Instruments and controls
3-3
– CONTINUED –

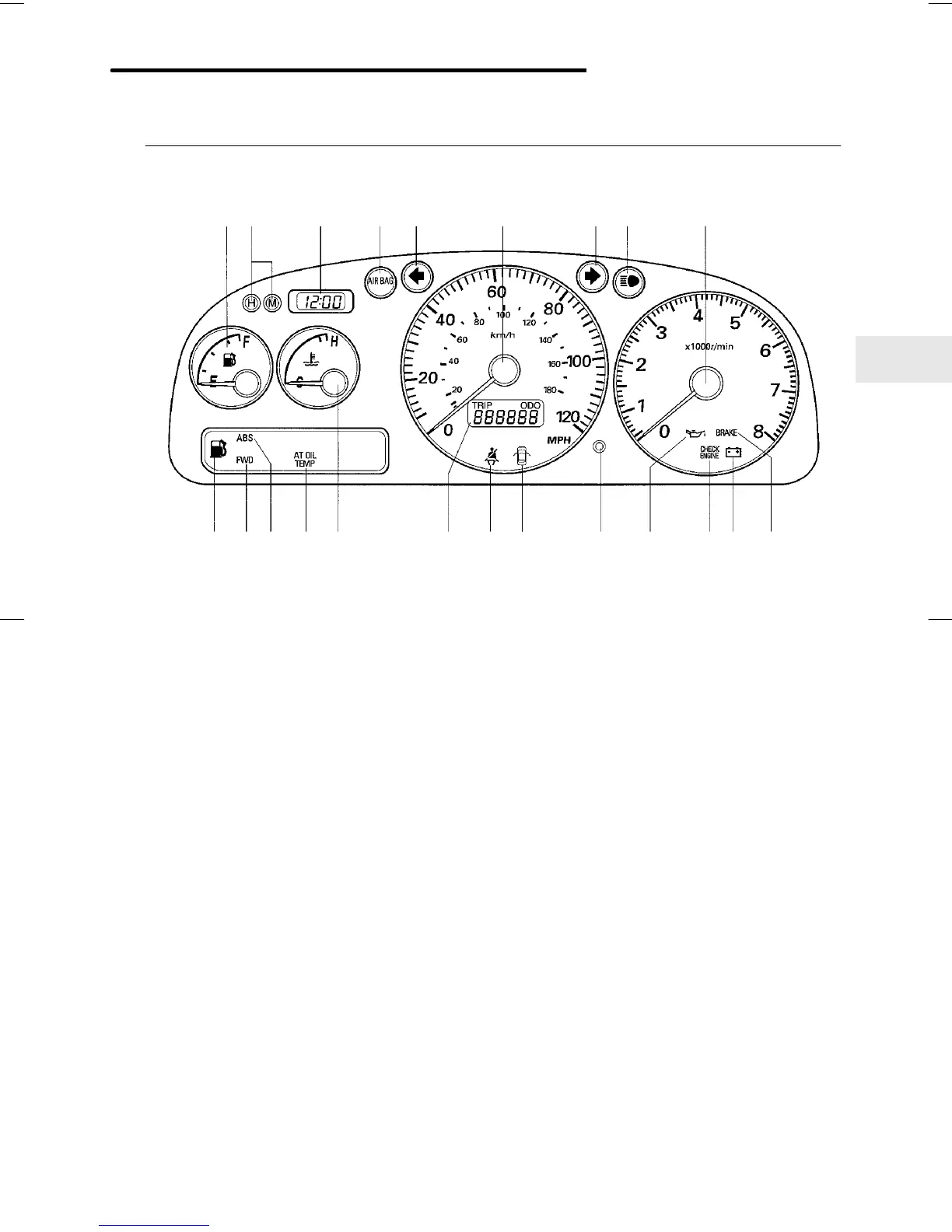

Combination meter overview
9QWE
P
HG0330
1 Fuel gauge (page 3-6)
2 Clock adjusting knob (page 3-14)
3 Clock (page 3-14)
4 SRS AIRBAG warning light
(page 3-8)
5 Turn signal indicator light
(page 3-13)
6 Speedometer (page 3-5)
7 High beam indicator light
(page 3-13)
8 Tachometer (page 3-6)
9 Brake system warning lights
(page 3-9)
Q Charge warning light (page 3-9)
W CHECK ENGINE warning light/
Malfunction indicator lamp
(page 3-10)
E Oil pressure warning light
(page 3-9)
R Odometer/Tripmeter selection and
trip meter reset knob (page 3-5)
T Door opening warning light
(page 3-13)
Y Seat belt warning light
(page 3-8)
U Odometer/Tripmeter (page 3-5)
I Temperature gauge (page 3-7)
O AT oil temperature warning light
(page 3-12)
P ABS warning light (page 3-11)
A Front-wheel drive warning light
(page 3-13)
S Low fuel warning light (page 3-13)
1
2
3
546 7
8
R
T
Y
U
I
O
A
S
