BAJA U.S.A..A2310BE–A
6-26
NOTE
It may be necessary to move the Front crossbar rearward, near
the center of the roof rail for easier removal. Use care not to
cross-thread the screw in the insert if it has been removed.
n To install the crossbar
NOTE

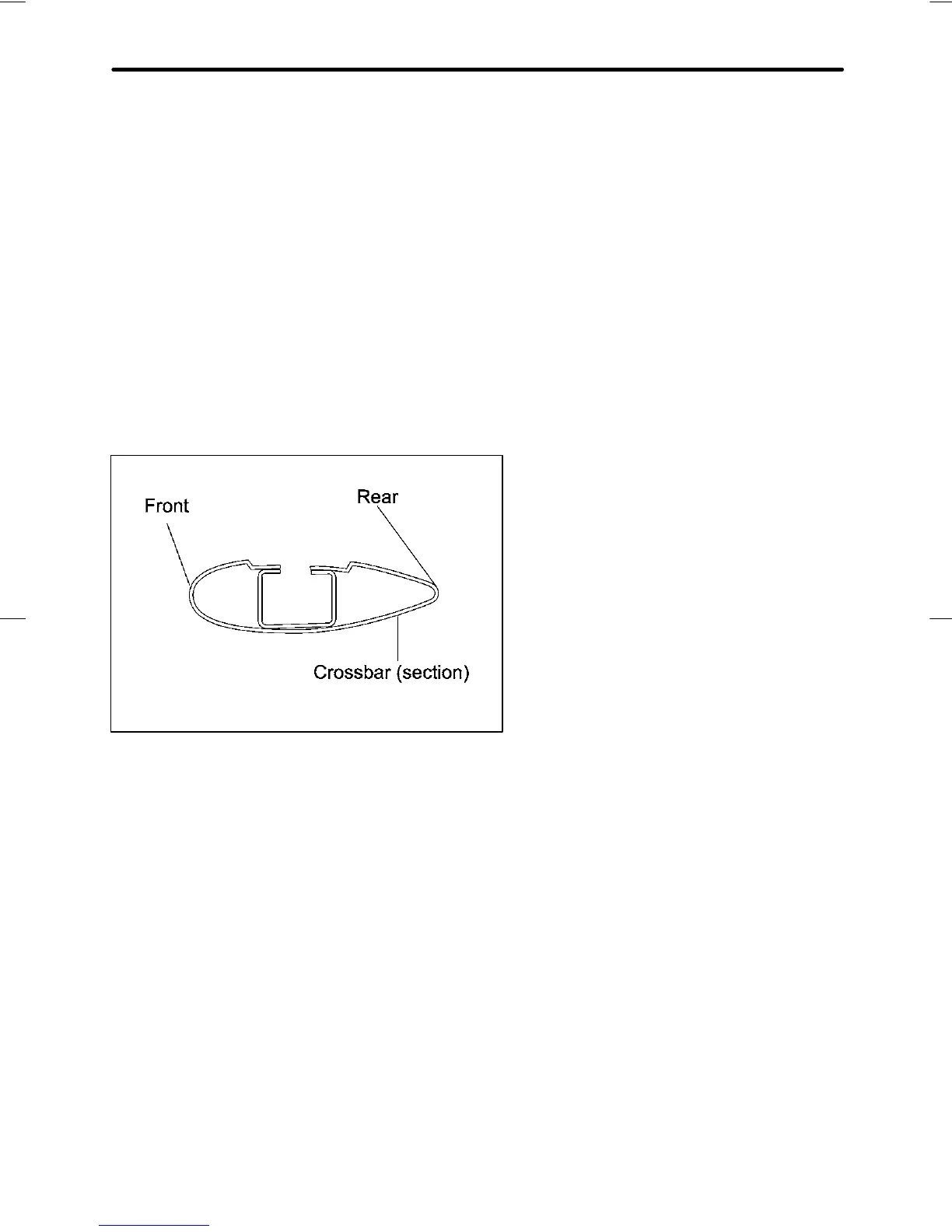

Both Crossbars have a label indicating the direction of mount. If
they are not present, orient with the larger section of the Cross-
bar towards the front of vehicle (see below). The Front Crossbar
also has a MAXIMUM LOAD Label affixed to it.
HB6046BB
Front crossbar:
Front crossbar has 100 LBS. Load Label on left-hand side.
To Next Page
