Subaru 2003 Baja - Rear Combination Lights

BAJA U.S.A..A2310BE–A
11
Maintenance and service
11-57
– CONTINUED –
HBB039CB
HBB020BA

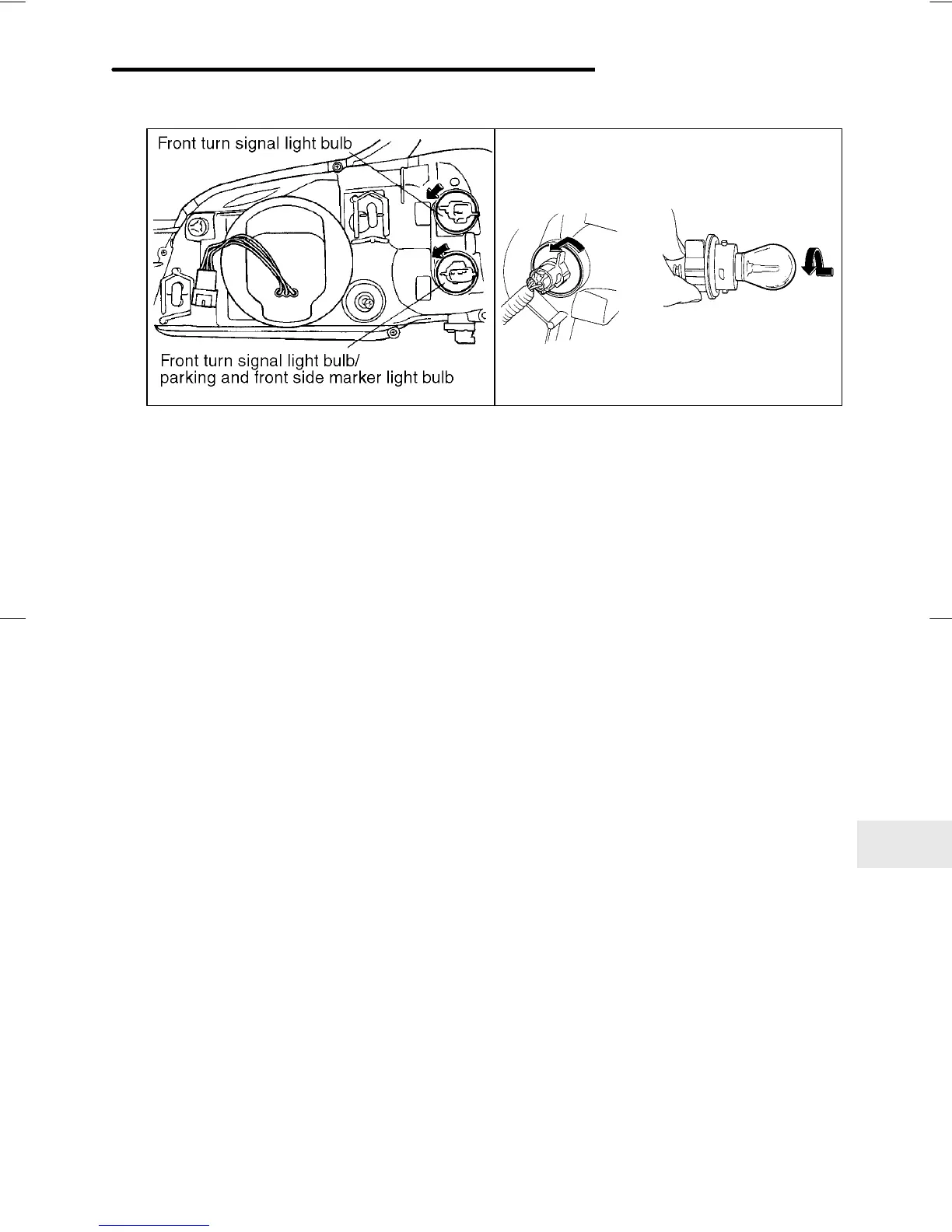

3. Remove the bulb socket from the headlight assembly by turning it
counterclockwise.
4. Remove the bulb from the socket by pushing it and turning counter-
clockwise. Install a new bulb in the socket.
5. Set the bulb socket into the headlight assembly and turn it clockwise
until it locks.
6. Set the headlight assembly into the vehicle body. Tighten the mount-
ing screws.
J Rear combination lights
Rear combination lights are composed of the rear turn signal/brake/tail
light and back up lights.
B Rear turn signal/Brake/Tail and Back up lights
The rear turn signal/brake/tail light is one bulb with two filament types.
If any one of them malfunctions, replace the bulb with a new one.
