B Replacing the air cleaner element
Replace the air cleaner element according to the maintenance sched-
ule in the “Warranty and Maintenance Booklet”. Under extremely
dusty conditions, replace it more frequently. It is recommended that
you always use genuine SUBARU parts.
HBB064BBHBB063BB

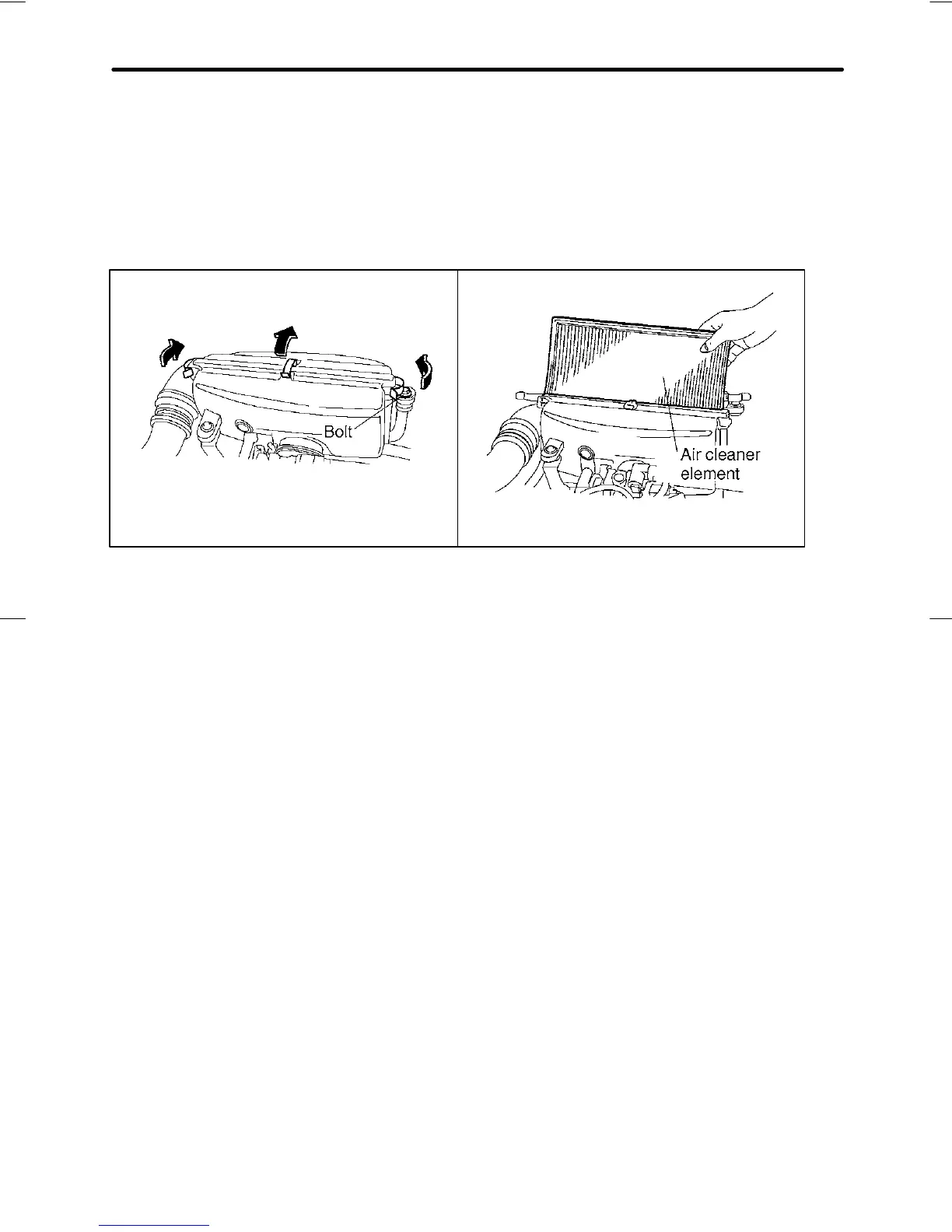

1. Remove the bolt securing the rear air cleaner element case.
2. Unsnap the three clamps holding the rear air cleaner element
case.
3. Separate the rear air cleaner element case from the front air clean-
er element case and remove the air cleaner element.
4. Clean the inside of the front and rear air cleaner element cases
with a damp cloth and install a new air cleaner element.
5. Insert the four projections on the rear air cleaner element case into
the slits on the front air cleaner element case and snap the three
clamps on the rear air cleaner element case and then tighten the bolt.
