Subaru 2007 Forester - Fuses and Circuits; Fuse Panel Located Behind the Instrument Panel

12-6 Specifications

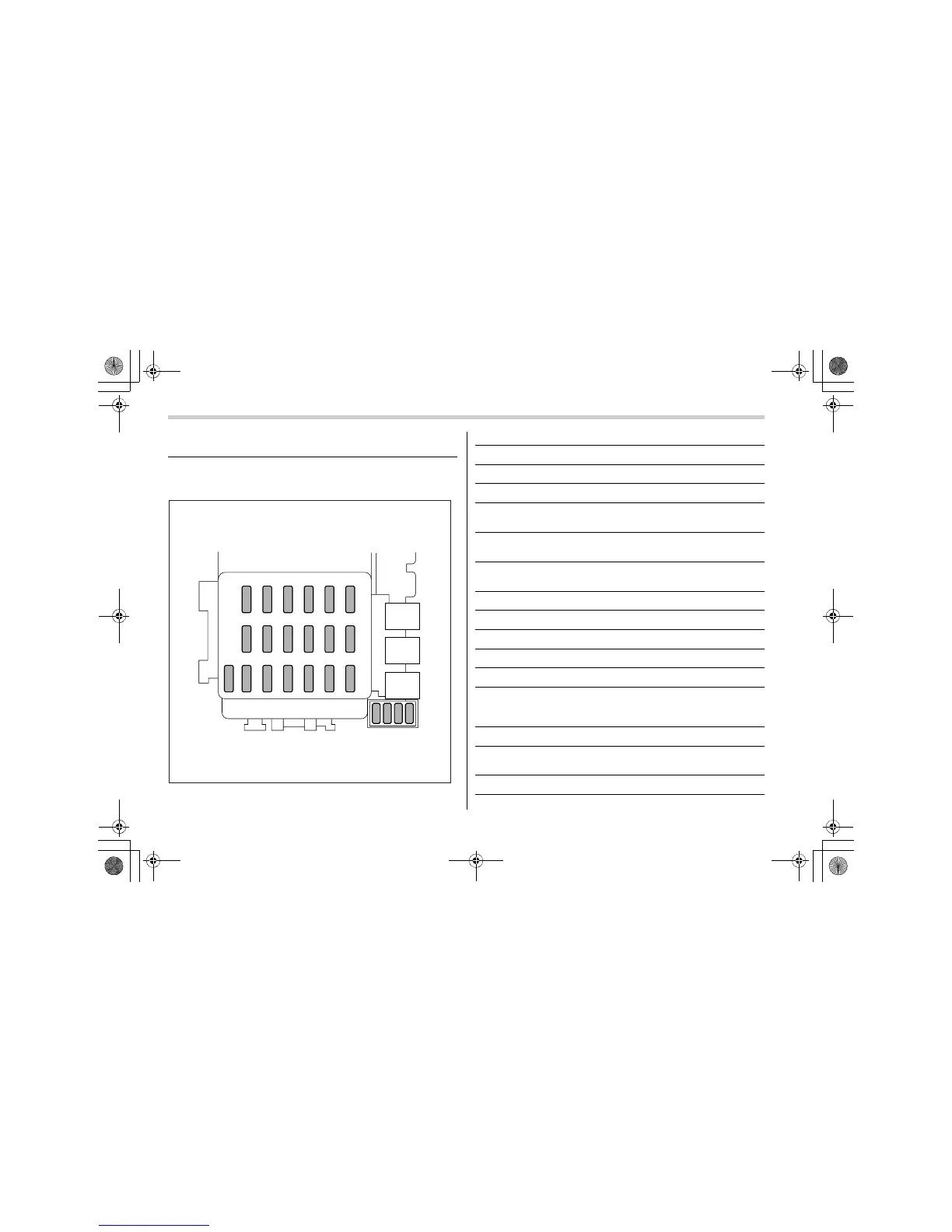

Fuses and circuits
 Fuse panel located behind the instrument pan-
el
123456
789101112
1413 15 16 17 18 19
20 21 22 23
C00000
Fuse panel Fuse rating Circuit
1 15A y Heater fan
2 15A y Heater fan
3 15A y Power door lock
y Remote keyless entry
4 15A y Power outlet (front)
y Remote controlled rear view mirrors
5 10A y Tail light
y Parking light
6 15A y SRS airbag
7 15A y Fog light
8 30A y ABS
9 15A y Radio
10 10A —
11 15A y Engine ignition system
y SRS airbag
y AT control system
12 10A y Illumination brightness control
13 20A y Wiper deicer
y Outside mirror defogger
14 10A y Meter
