Subaru 2007 Forester - Fuse Panel Located in the Engine Compartment

12-8 Specifications

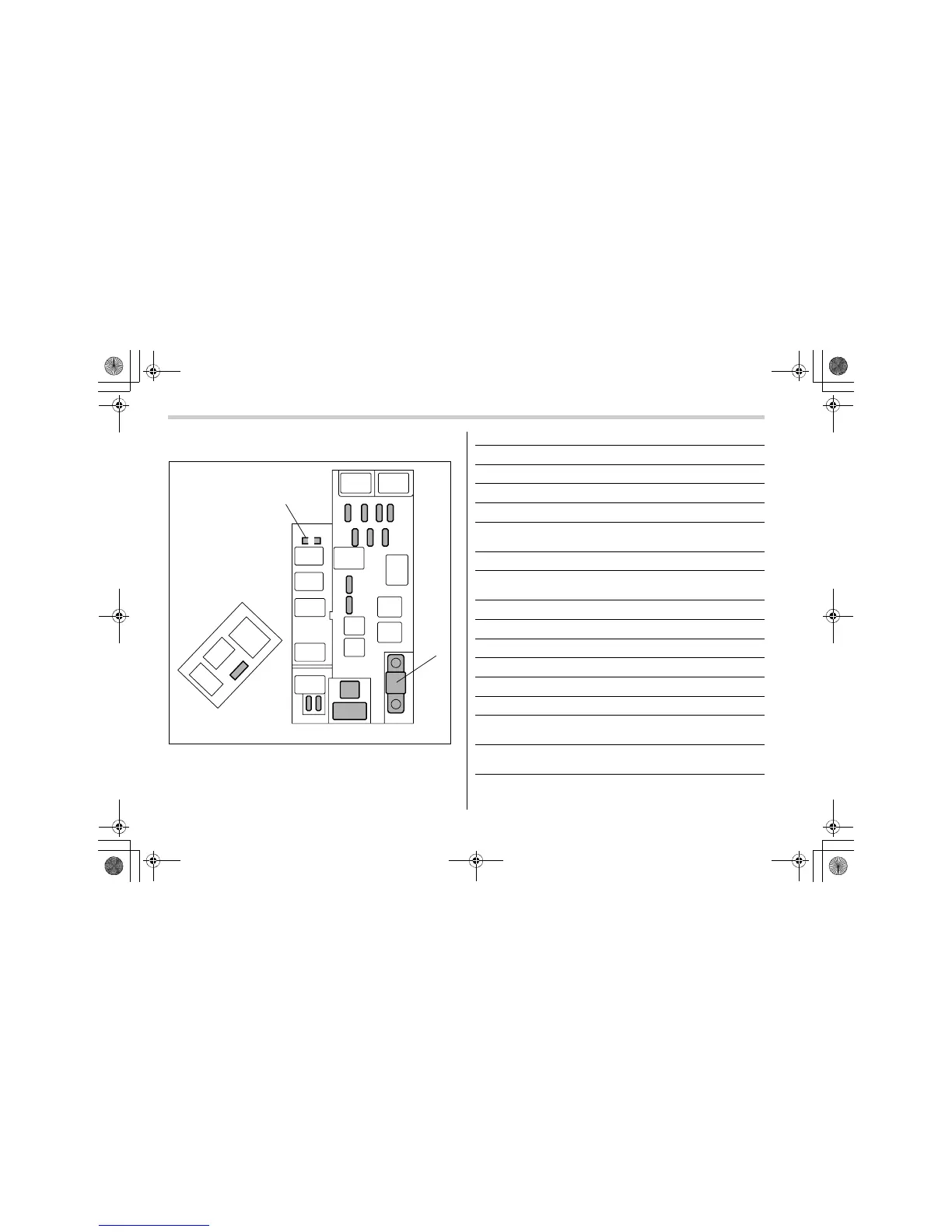

 Fuse panel located in the engine compartment
A) FWD socket
B) Main fuse
A
12
4
3
B
5
6
789
10 11 12 13
C00105
14
Fuse panel Fuse rating Circuit
1 30A y Radiator cooling fan (Main)
2 30A y Radiator cooling fan (Sub)
3 30A y ABS motor
4 30A y Engine sensor (Non-turbo models
only)
5 20A y Rear window defogger
6 15A y Hazard warning flasher
y Horn
7 15A y Turn signal lights
8 10A y Automatic transmission control unit
9 10A y Alternator
10 15A y Headlight (right side)
11 15A y Headlight (left side)
12 20A y Lighting switch
13 15A y Clock
y Interior light
14 10A y Secondary air combination valve
(Turbo models only)
