Seat, seatbelt and SRS airbags 1-39
– CONTINUED –
1
1
2
3
4
5
18
17
9
7
10
12
16
14
6
13
15
20
19
8
11

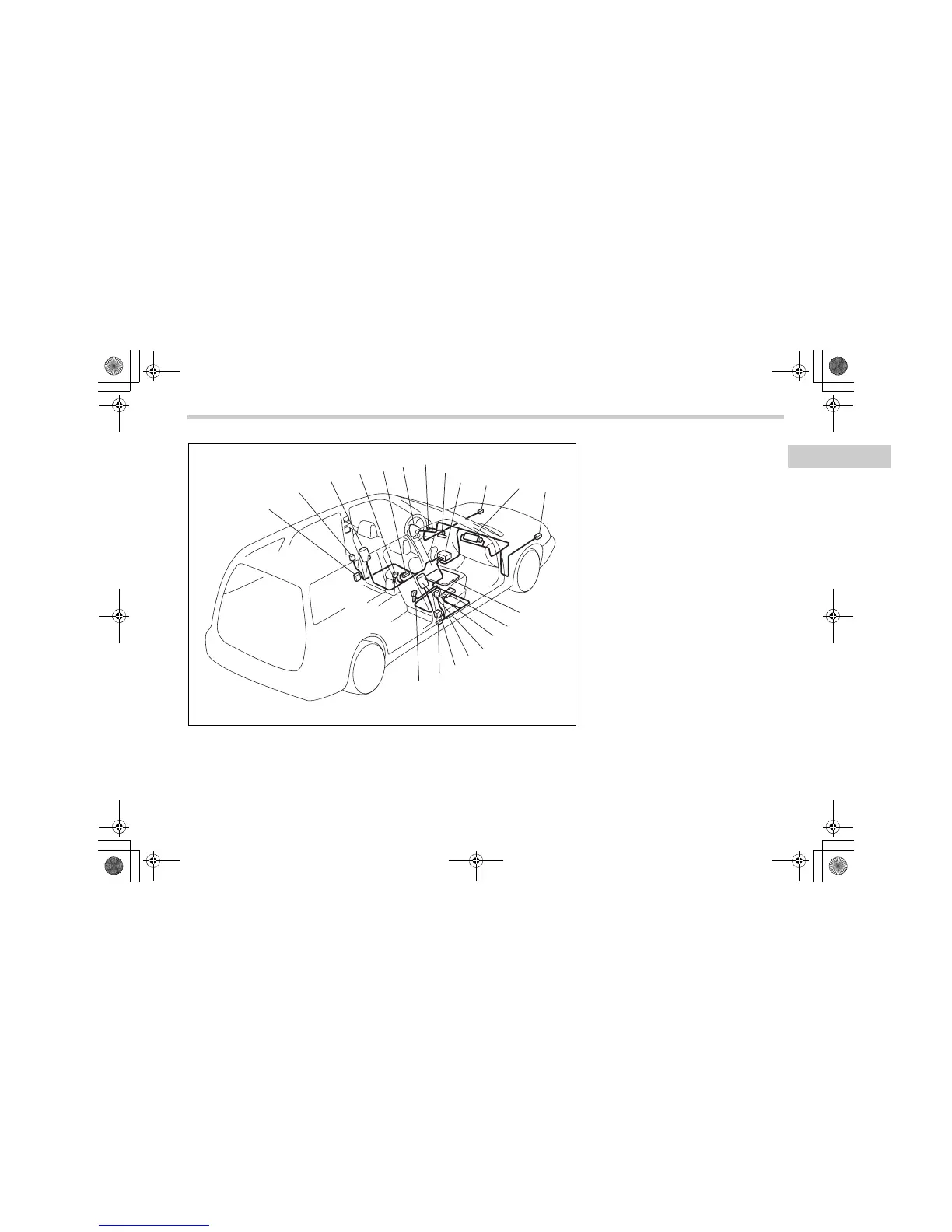

100800
1) Airbag control module (including impact
sensors)
2) Frontal airbag module (driver’s side)
3) Frontal airbag module (front passen-
ger’s side)
4) Front sub sensor (left-hand side)
5) Front sub sensor (right-hand side)
6) Side airbag module (driver’s side)
7) Side airbag module (front passenger’s
side)
8) Side airbag sensor (center pillar left-
hand side)
9) Side airbag sensor (center pillar right-
hand side)
10)Airbag wiring (yellow)
11)Seatbelt pretensioner (driver’s side)
12)Seatbelt pretensioner (front passenger’s
side)
13)Seatbelt buckle switch (front passen-
ger’s side)
14)Seatbelt buckle switch (driver’s side)
15)Driver’s seat position sensor
16)Front passenger’s seatbelt tension sen-
sor
17)Front passenger’s occupant detection
system weight sensor
18)Front passenger’s occupant detection
control module
19)Front passenger’s frontal airbag ON and
OFF indicator
20)SRS airbag system warning light
