Subaru 2011 Tribeca - Engine Compartment Overview

Black plate (342,1)
北米Model "A3160BE-C" EDITED: 2010/ 11/ 19
11-6 Maintenance and service

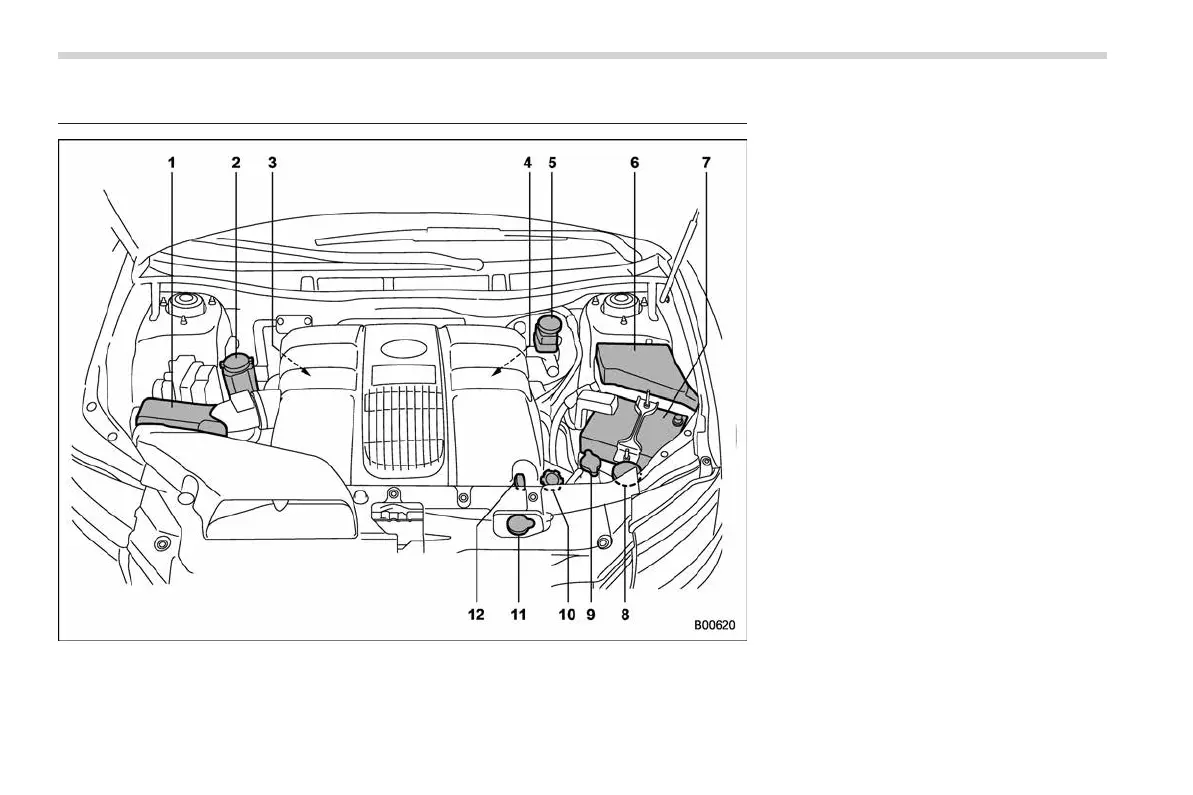

Engine compartment overview
1) Air cleaner element (page 11-13)
2) Power steering fluid reservoir
(page 11-17)
3) Differential gear oil level gauge
(page 11-16)
4) Automatic transmission fluid level gauge
(page 11-15)
5) Brake fluid reservoir (page 11-18)
6) Fuse box (page 11-35)
7) Battery (page 11-34)
8) Windshield washer tank (page 11-29)
9) Radiator cap (page 11-10)
10) Engine oil filler cap (page 11-7)
11) Engine coolant reservoir (page 11-10)
12) Engine oil level gauge (page 11-7)
