Subaru EX13 - Page 19

- 16 -

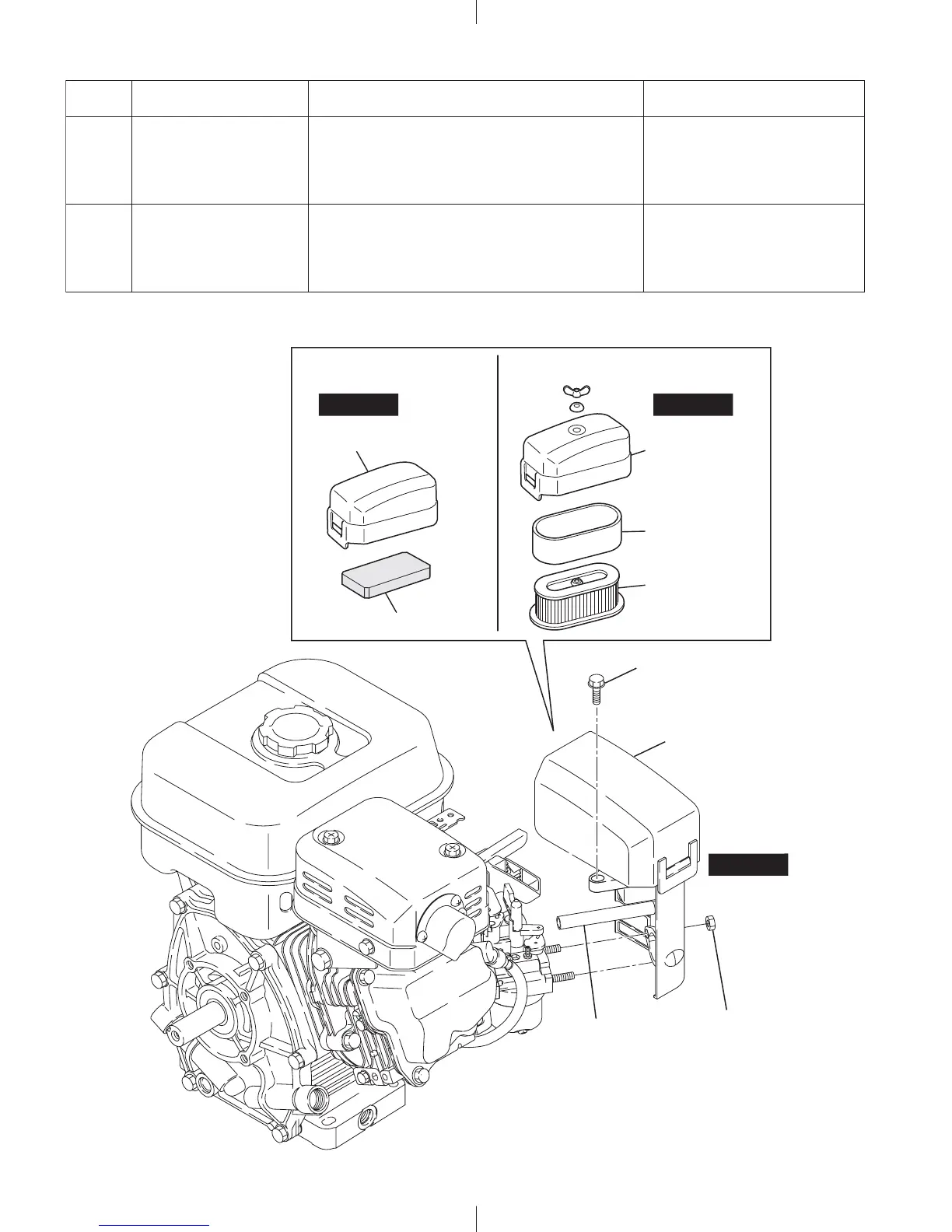

Fig. 5-3
Step Parts to remove Remarks and procedures Fasteners
2
Air cleaner cover Remove the air cleaner cover.
3
Air cleaner Remove the element, and remove the air
cleaner while pulling the breather pipe away
from the rocker cover.
10 mm box spanner
M6 nut: 2 pcs.
M6×20:1pc.
M6 x 20
FLANGE BOLT : 1 pc.
M6 FLANGE
NUT : 2 pcs.
AIR CLEANER COVER
AIR CLEANER
COVER
AIR CLEANER COVER
BREATHER
PIPE
URETHANE FOAM
STEP 2
STEP 3
STEP 3
DUAL ELEMENT TYPESTD TYPE
URETHAN FOAM
PAPER
ELEMENT
