- 17 -

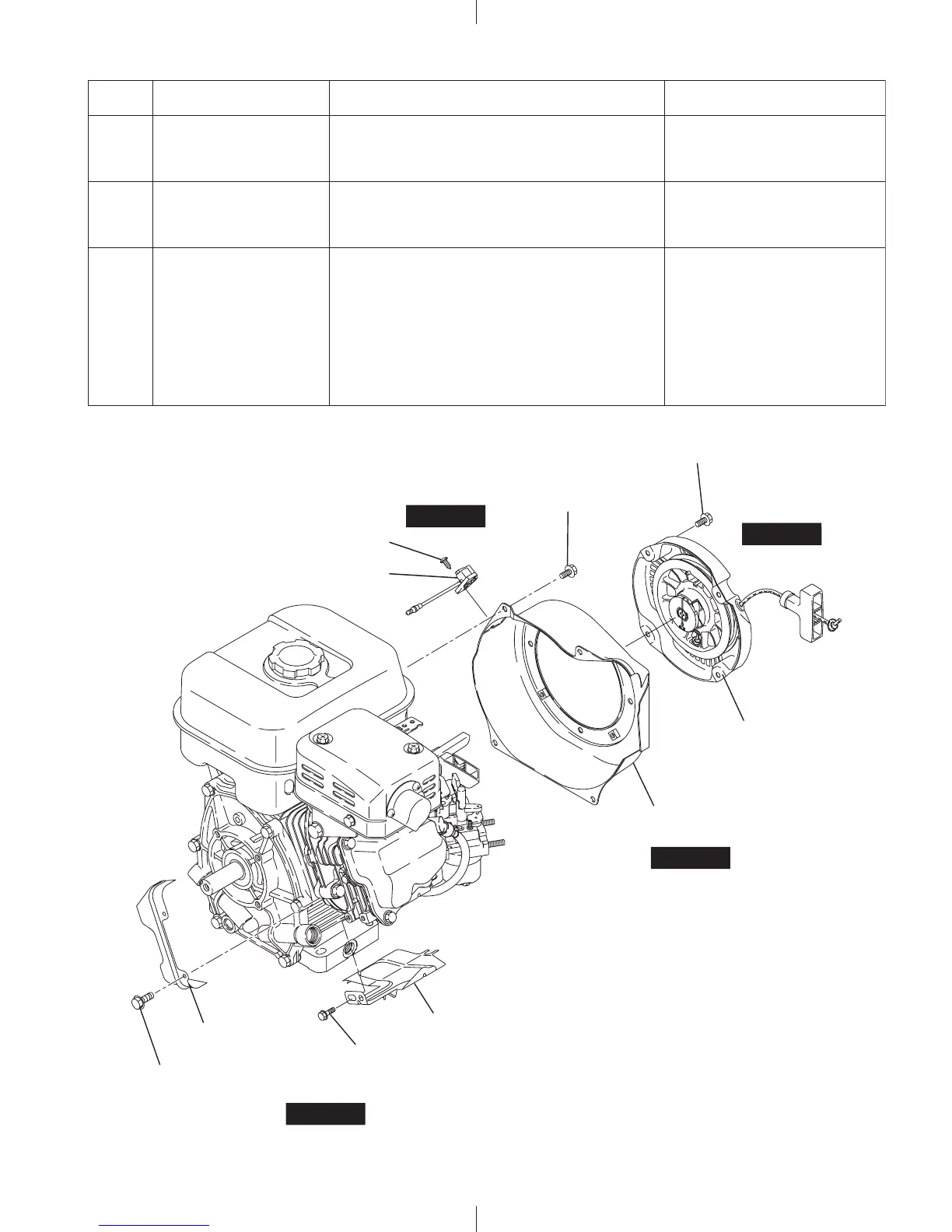

Fig. 5-4
STEP 4
STEP 5
STEP 6
STEP 6
M6 x 8 BOLT : 4 pcs.
M6 x 12 BOLT : 4 pcs.
STOP SWITCH
BAFFLE 2 (HEAD)
BAFFLE 3
(EX21 ONLY)
M4 TAPPING SCREW : 2 pcs.
RECOIL STARTER
BLOWER HOUSING
M6 x 12 BOLT : 1 pc.
M5 TAPPING BOLT : 2 pcs.
Step Parts to remove Remarks and procedures Fasteners
4
Stop switch Disconnect the wire and remove the stop
switch from the blower housing.
5
Recoil starter Remove the recoil starter from the blower
housing.
10 mm box spanner
M6 × 8mm : 4 pcs.
6
Blower housing
Baffle 2 (head)
Baffle 3
(1)Remove the blower housing from the
crankcase.
(2)Remove the baffle 2 (head) and baffle 3.
10 mm box spanner
M6 × 12mm : 4 pcs.
10 mm box spanner or
spanner
M6 × 12mm : 2 pcs.
(Baffle 2 (head))
M5 tapping bolt : 2 pcs.
(Baffle 3)
