Subaru EX40 - (11) MOUNTING THE TENSIONER; (12) BALANCER SHAFT

- 33 -
(11) MOUNTING THE TENSIONER

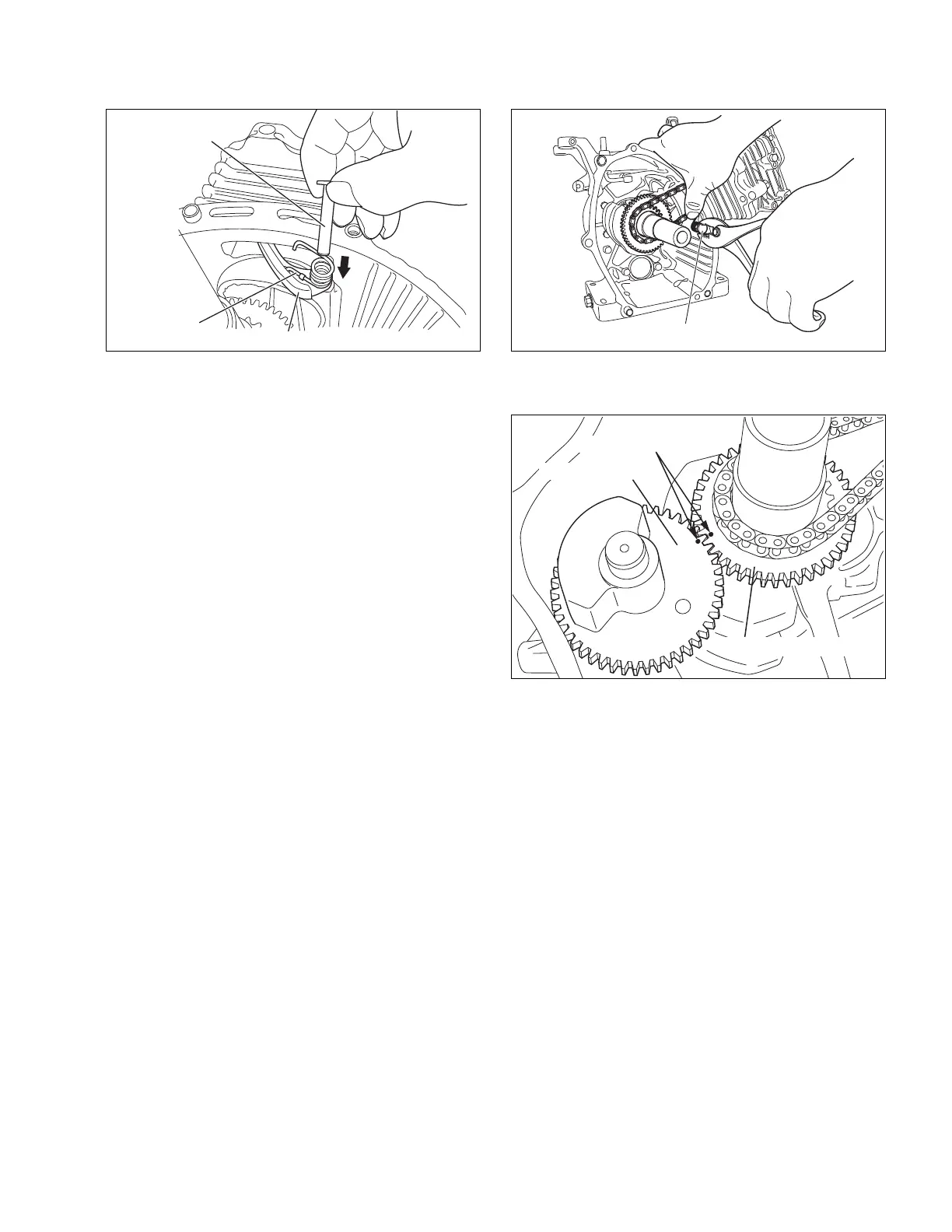

Fig.5-45 Fig.5-46
PIN (TENSIONER)
PIN
(TENSIONER)
TENSIONER
SPRING
(TENSIONER)
TIMING MARK
BALANCER GEAR
CRANKSHAFT GEAR
(12) BALANCER SHAFT
Mountthebalancershaftonthecrankcase,
alignthetimingmarksonthebalancergear
andthecrankshaftgear.
NOTE:Incorrectalignmentofthetiming
markscanresultinmalfunctionofthe
engine,leadingtodamagedueto
interferenceoftheparts.
Fig.5-47
