Suburban SW10D User Manual

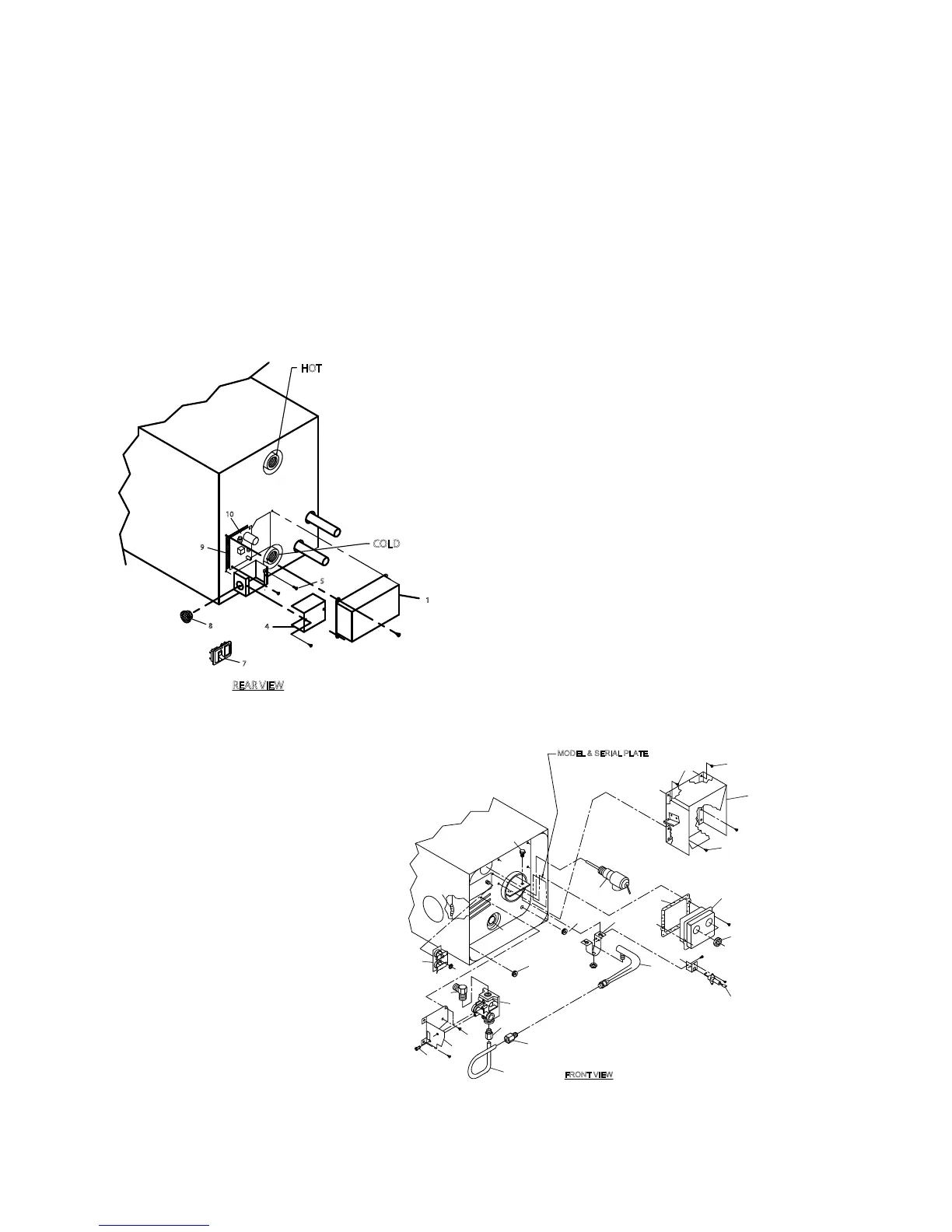

PARTS LIST FOR MODEL SW10DM
(Figures 15 and 16)
Item Part Number
No. Description SW10DM
1 Cover, Module Board ............................................................................. 090340
4 Cover Junction Box ................................................................................ 090344
5 Screw 10-32 x 3/8 (Green) ..................................................................... 121702
7 Switch, Lamp and Plate Assembly ........................................................ 232589
8 Bushing, Snap 7/8” ................................................................................ 230218
9 Insulator, Module Board ......................................................................... 070807
10 Module Board ......................................................................................... 520814
12 Flue Collector Back Assembly Complete ............................................... 101777
14 Screw 10 x 1/4 (3 Required) .................................................................. 121577
15 Valve, Pressure Relief ............................................................................ 161157
17 Gasket, Thermostat Cover ..................................................................... 070987
18 Cover, Thermostat/Hi-Limit .................................................................... 090562
20 Bracket, Electrode Mounting .................................................................. 063187
21 Grommet ................................................................................................ 070874
Item Part Number
No. Description SW10DM
22 Electrode ...................................................................................................232258
24 Burner Assembly with orice .....................................................................010843
26 1/4 Loxit Nut (Manifold to Valve) ...............................................................171463
27 Valve, Gas (LP) ......................................................................................... 161109
28 Manifold Outlet ..........................................................................................171420
29 Valve Mounting Bracket ...........................................................................063243
30 Screw 8-32 x 3/8 Hex HD (2 Required) ....................................................121958
31 Switch Assembly 12 V.D.C. T-Stat/Hi-Limit ...............................................232282
34 Gas Fitting .................................................................................................170374
36 Grommet ...................................................................................................071246
37 Anode ........................................................................................................232767
38 Grommet, Gas Inlet ...................................................................................070989
39 Screw 8mm - 4.0 x 1/2 Hex Washer Head (2 Required) ...........................121943
40 Burner Bracket ..........................................................................................063444
41 Screw #10 x 1/4 (2 Required) ...................................................................121577
42 1/4 Loxit Nut (Manifold to Burner) .............................................................171463
43 Electrode Wire (Not Shown) .....................................................................232454
HOT
COLD
1
5
4
8
10
9
7
REAR VIEW
Figure 15
15
20
22
24
36
40
27
26
42
28
34
29
30
31
21
17
18
38
37
39
FRONT VIEW
36
41
14
14
14
12
MODEL & SERIAL PLATE
Figure 16
10
