Suburban SW10D User Manual

WATER HEATER AS VIEW FROM INSIDE R.V.
SECURE CHOCKS, ONE ON EACH SIDE, TIGHTLY AGAINST WATER HEATER JACKET
AND FASTEN TO VEHICLE FLOOR TO PREVENT MOVEMENT. CHOCKS SHOULD BE
APPROXIMATELY 2" X 2" X 6"
FRAMED OPENING
OUVERTURE AVEC ENCADREMENT
FLOOR
PLANCHER
CHAUFFEE-EAU VU DEPUIS LINTERIEUR DU R.V.
INSTALLER UNE CALE DE CHAQUE COTE EN CONTACT AVEC LA CHEMISE DU
CHAUFFEE-EAU. FIXER LES CALES AU PLANCHER POUR QUELLES NE
PUISSENT BOUGER. UTILISER DES CALES DE 2PO X 2PO X 6PO ENVIRON.
Figure 1A

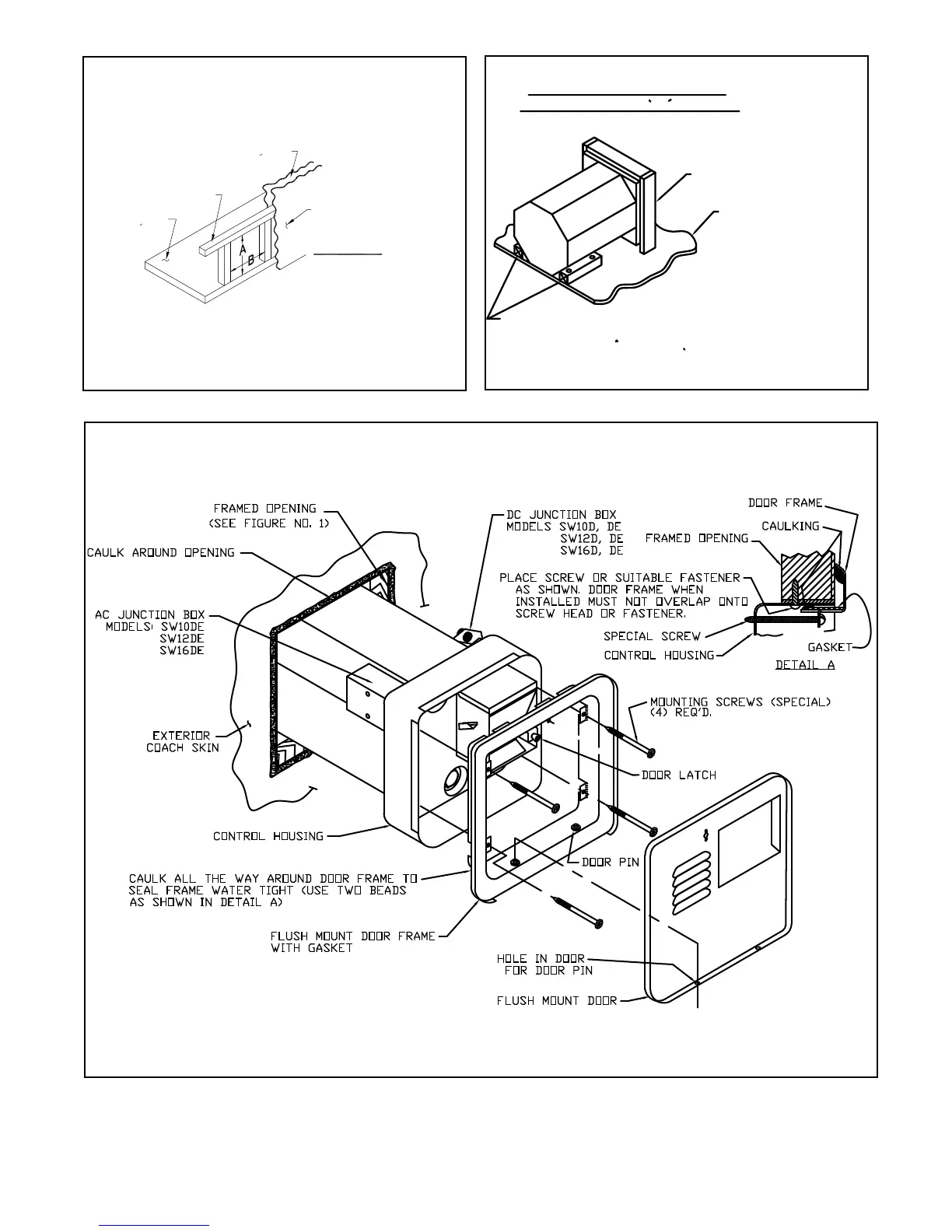

FRAMED OPENING
DETAIL A
SPECIAL SCREW
CONTROL HOUSING
GASKET
CONTROL HOUSING
FLUSH MOUNT DOOR
CAULK AROUND OPENING
FRAMED OPENING
(SEE FIGURE NO. 1)
EXTERIOR
COACH SKIN
CAULK ALL THE WAY AROUND DOOR FRAME TO
SEAL FRAME WATER TIGHT (USE TWO BEADS
AS SHOWN IN DETAIL A)
MOUNTING SCREWS (SPECIAL)
(4) REQ'D.
CAULKING
DOOR FRAME
AC JUNCTION BOX
MODELS: SW10DE
SW12DE
SW16DE
PLACE SCREW OR SUITABLE FASTENER
AS SHOWN. DOOR FRAME WHEN
INSTALLED MUST NOT OVERLAP ONTO
SCREW HEAD OR FASTENER.
HOLE IN DOOR
FOR DOOR PIN
DOOR PIN
FLUSH MOUNT DOOR FRAME
WITH GASKET
DC JUNCTION BOX
MODELS SW10D, DE
SW12D, DE
SW16D, DE
DOOR LATCH
Figure 2
INNER COACH WALL
OUTER COACH WALL
FRAMING
FLOORING
LE CADRAGE
LE PLANCHEIAGE
LUR MUR DE LA VOITURE INTERIEUR
LA PEAU DE LA VOITURE EXTERNE
A = 16 3/8"±1/16"
B = 16 3/8"±1/16"
Figure 1
