10.8 Water services connections
All water feed connections are found on the rear of the unit. Using the
installation kit provided attach the water feed, Low pressure drain, high
pressure drain and overflow tubing as shown below.

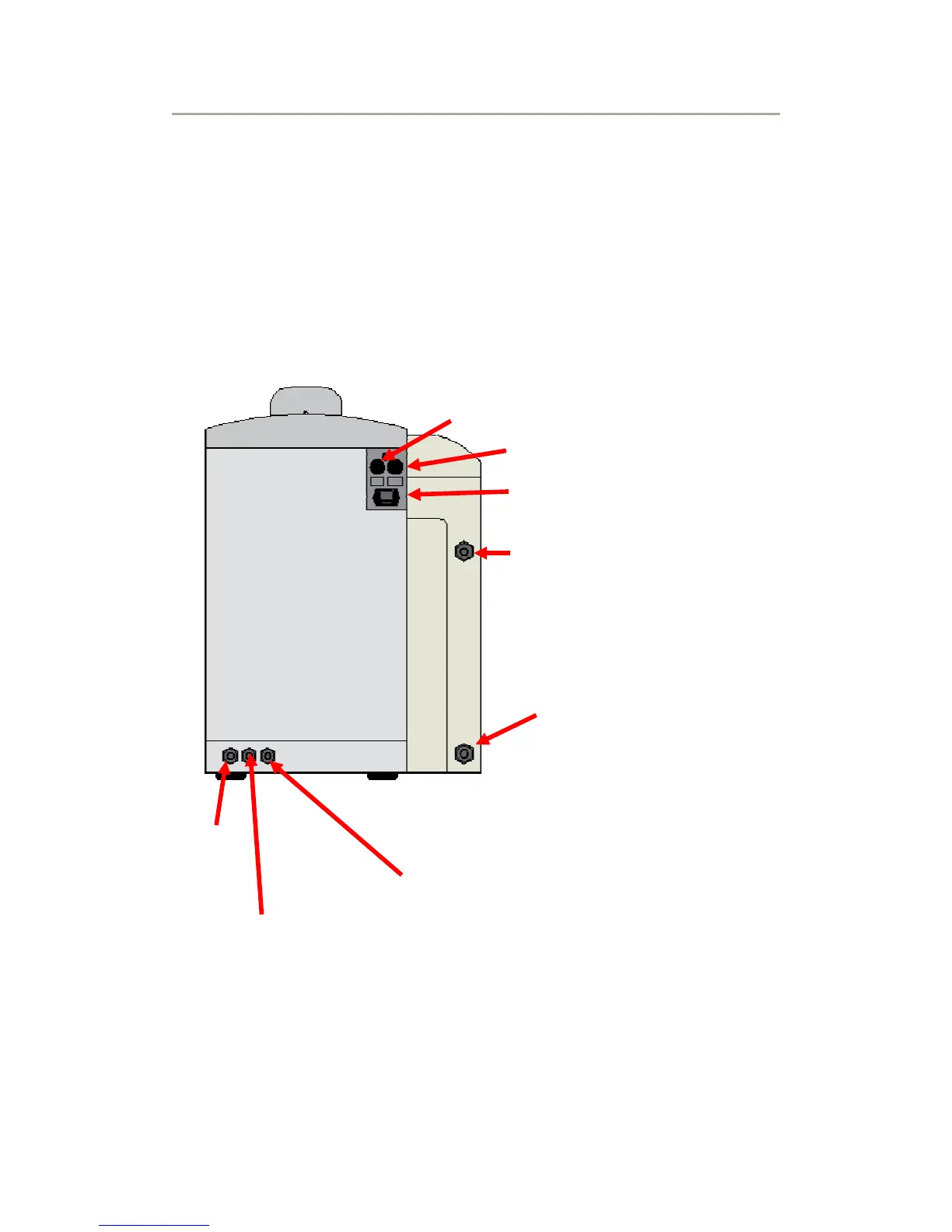

Unit Viewed from the rear. Electrical & hydraulic connections
‘Dry’ alarm contact
External tank connection
Main voltage supply
Overflow
Rear tank outlet
Feed water
Low pressure drain
High pressure drain
