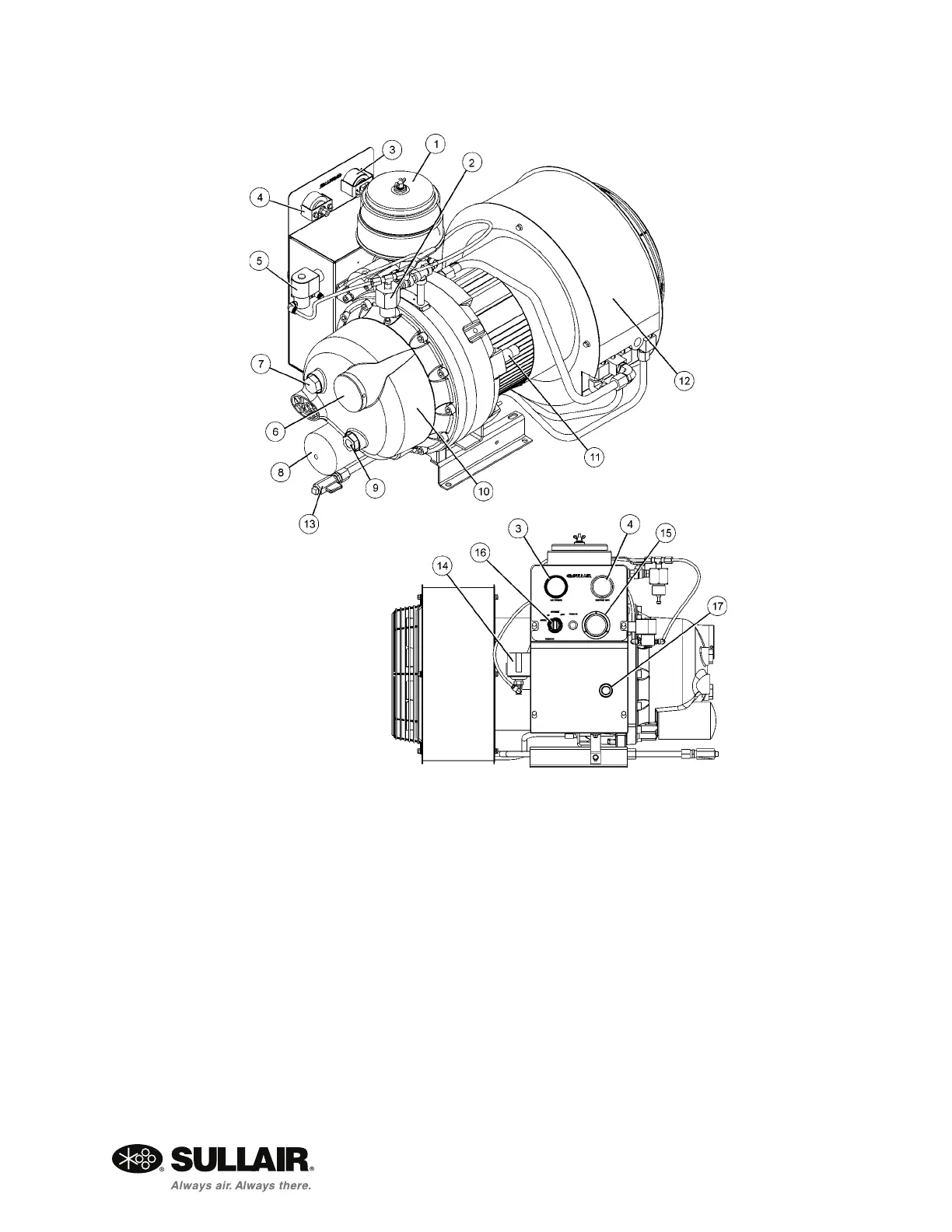

Figure 2-1: Description of Components
1. Air Inlet System
2. Pressure Regulator
3. Pressure Gauge
4. Discharge Temp Gauge
5. Unload Solenoid Valve
6. Air/Fluid Seperator Element Access
Cover
7. Fluid Fill Plug
8. Fluid Filter Element
9. Fluid Level Sight Glass
10. Encapsulated Compressor System
11. Pressure Relief Valve
12. Cooling System
13. Drain Valve
14. Air Pressure Switch
15. Hourmeter
16. Motor Start Selector Switch
17. Motor Overload Reset Switch
