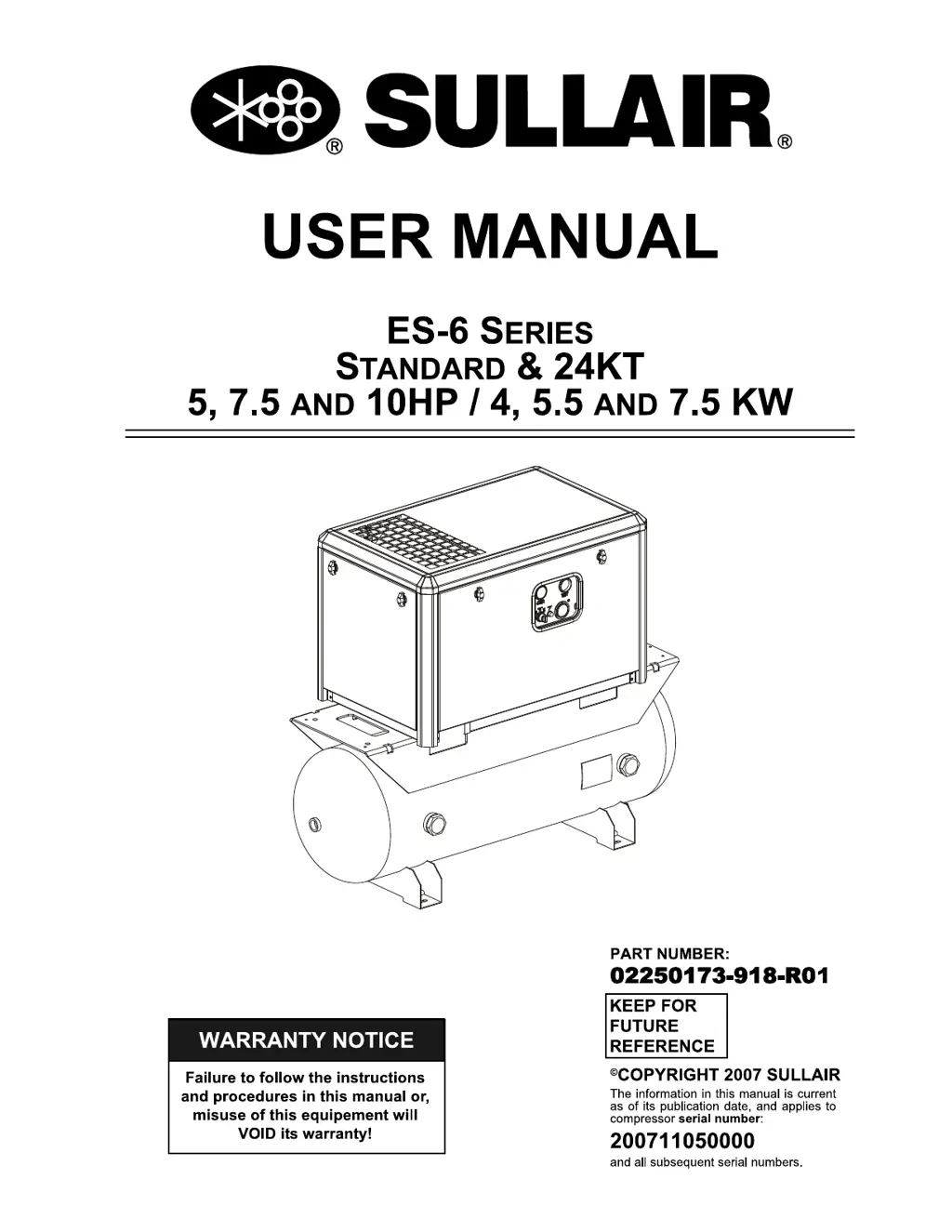

Sullair ES-6 series User Manual

Other manuals for Sullair ES-6 series

Operator's Manual And Parts List56 pages

• M

  Monica MasonJul 27, 2025

  What to do if Sullair ES-6 Air Compressor will not build up full discharge pressure?



  Same questionReply

  • D

    david48Jul 27, 2025

    If your Sullair Air Compressor isn't reaching full discharge pressure: * Check service lines for leaks or open valves, as air demand might be too high. * Inspect the air filter and replace the element if it's dirty. * Adjust the pressure regulator according to the control adjustment instructions. * For a defective solenoid valve, a normally open solenoid must energize to load the compressor; check for proper operation.



    Reply
• M

  Mrs. Elizabeth WestJul 31, 2025

  Why Sullair ES-6 Air Compressor shuts down with air demand present?



  Same questionReply

  • D

    Debbie EscobarJul 31, 2025

    Your Sullair Air Compressor might be shutting down due to several reasons: * Low incoming voltage, which may require consulting with your power company. * Excessive operating pressure, potentially caused by a defect in the pressure switch. * Restricted cooling air flow, necessitating cleaning the cooler and checking ventilation. * Ambient temperature being too high, so ensure sufficient ventilation. * Low fluid level, simply add more fluid. * Clogged filter, change the fluid filter element. * Thermal valve not functioning, replace the element. * Defective discharge temperature switch, check for a short or open circuit and correct the wiring.



    Reply
• T

  Tammy PerezAug 4, 2025

  What to do if Sullair Air Compressor will not start?



  Same questionReply

  • E

    Eric PatelAug 4, 2025

    If your Sullair Air Compressor isn't starting, here's what you can check: * Ensure the main disconnect switch is closed. * Replace any blown line fuses. * Replace any blown control transformer fuses. * Reset the motor starter overloads. If the issue continues, inspect the motor starter contacts. * Check the incoming line voltage; if it's low, consult your power company.



    Reply
• D

  Dillon YoungAug 9, 2025

  Why line pressure rises above cut-out pressure setting on pressure switch in Sullair ES-6 Air Compressor?



  Same questionReply

  • R

    Richard DonaldsonAug 9, 2025

    If the line pressure in your Sullair Air Compressor rises above the cut-out pressure setting, it could be due to: * A defective solenoid valve. * A leak in the control system causing loss of pressure signals; check for leaks. * A defective pressure switch; check that the diaphragm and contacts are not damaged and replace if necessary. * An inlet valve stuck open; inspect the inlet valve and ensure free operation.



    Reply
• N

  Nathan KleinAug 13, 2025

  How to reduce excessive fluid consumption in Sullair Air Compressor?



  Same questionReply

  • J

    Joseph WalshAug 13, 2025

    To address excessive fluid consumption in your Sullair Air Compressor: * Remove the element cover and clean the orifice if the return line is clogged. * Change the separator element if it's damaged or not functioning properly. * Check all pipes, connections, and components for leaks in the lubrication system. * Drain and change the fluid if there's excess foaming. * Drain access if the fluid level is too high. * Replace the shaft seal if it has failed.



    Reply
• J

  Judy BergAug 17, 2025

  Why pressure relief valve opens repeatedly in Sullair ES-6 Air Compressor?



  Same questionReply

  • S

    stephanie58Aug 17, 2025

    The pressure relief valve in your Sullair Air Compressor might be repeatedly opening because: * The compressor operating pressure is too high. * The pressure relief valve is defective; replace it.



    Reply
• C

  Craig DavisAug 21, 2025

  Why there is liquid water in compressed air lines of Sullair ES-6?



  Same questionReply

  • M

    michael92Aug 21, 2025

    Liquid water in your Sullair Air Compressor's compressed air lines is typically due to water vapor condensation from cooling and compression, which occurs naturally. Remove the water vapor from compressed air prior to distribution through the air system. Check operation of aftercooler and moisture separator. Install a compressed air dryer sized for the flow and dryness level required. Check all drain traps routinely to ensure their proper operation. Maintain them regularly.



    Reply

Sullair ES-6 series Specifications

General

Model	ES-6 series
Type	Rotary Screw Air Compressor
Working Pressure	7-12 bar
Motor Power	37 - 45 kW
Power	37 - 45 kW
Drive Type	Direct

Summary

Safety

Page: 7

General Safety Guidelines

General safety guidelines and operator responsibilities.

Personal Protective Equipment

Requirements for eye, face, hearing, and other protective gear.

Pressure Release Procedures

Proper installation of flow-limiting valves for hose failure.

Fire and Explosion Hazards

Precautions to prevent fires and explosions from lubricants and ignition sources.

Moving Parts Safety

Safety measures to avoid contact with rotating components.

Hot Surfaces and Sharp Edges

Avoidance of burns and cuts from equipment surfaces.

Toxic and Irritating Substances

Handling of fluids and potential inhalation hazards.

Electrical Shock Hazards

Precautions against electrical hazards and proper grounding.

Lifting and Rigging Safety

Guidelines for safe lifting and rigging of the compressor unit.

Entrapment Prevention

Procedures to prevent accidental enclosure door closure.

Description of Compressor Components

Page: 13

Introduction to ES-6 Compressor

Overview of the ES-6 compressor's reliability and maintenance.

Description of Components

Identification and general description of major compressor assemblies.

Encapsulated Compressor System Function

Function of the compressor unit, fluid management, and motor.

Compressor Cooling System Function

How the fluid cooler, fan, and shroud maintain operating temperatures.

Air Inlet System Function

Function of the air filter and control valve for intake regulation.

Control System Function

Operation modes and function of the compressor control system.

Instrumentation Function

Description of line pressure and discharge temperature gauges.

Specifications and Identification

Page: 19

Table of Specifications

Summary tables for 60 Hz and 50 Hz ES-6 compressor models.

Compressor Lubrication Guide

Guidance on selecting and maintaining compressor fluids.

Lubrication Guide - 24KT Compressors

Specific lubrication advice for 24KT models.

Lubrication Guide - Optional Fluid

Information on using SRF 1/4000 as an optional lubricant.

Identification: ES-6 Standard Without Enclosure

Dimensional drawings and identification of open models.

Identification: ES-6 Standard With Enclosure

Dimensional drawings and identification of enclosed models.

Identification: ES-6 Open Tank Mount (80 Gallon)

Dimensions and identification for 80-gallon open tank mount.

Identification: ES-6 Enclosed Tank Mount (80 Gallons)

Dimensions and identification for 80-gallon enclosed tank mount.

Identification: ES-6 Open Tank Mount (80 Gallons) with Dryer

Dimensions for 80-gallon open tank mount with dryer.

Identification: ES-6 Enclosed Tank Mount (80 Gallons) with Dryer

Dimensions for 80-gallon enclosed tank mount with dryer.

Identification: ES-6 Open Tank Mount (120 Gallon)

Dimensions and identification for 120-gallon open tank mount.

Identification: ES-6 Enclosed Tank Mount (120 Gallon)

Dimensions and identification for 120-gallon enclosed tank mount.

Identification: ES-6 Open Tank Mount (120 Gallon) with Dryer

Dimensions for 120-gallon open tank mount with dryer.

Identification: ES-6 Enclosed Tank Mount (120 Gallon) with Dryer

Dimensions for 120-gallon enclosed tank mount with dryer.

Piping and Instrumentation Diagram

Schematic of fluid and air lines with instrumentation.

Wiring Diagram: Dual Control Full Voltage 2-Wire

Electrical diagram for 2-wire dual control systems.

Wiring Diagram: Dual Control Full Voltage 3-Wire

Electrical diagram for 3-wire dual control systems.

Wiring Diagram: Dual Control 200-230/1/60 5 HP

Wiring for 5 HP, 200-230V/1/60 dual control.

Wiring Diagram: Dual Control Wye-Delta

Electrical diagram for Wye-Delta starting systems.

Wiring Diagram: SRS 25-100 115-230V/1/60

Wiring for SRS 25-100 series, 115-230V/1/60.

Wiring Diagram: SRS 9-18 220-240V/1/50

Wiring for SRS 9-18 series, 220-240V/1/50.

Wiring Diagram: SRS 24-30 220-240V/1/50

Wiring for SRS 24-30 series, 220-240V/1/50.

Installation Procedures

Page: 61

Compressor Location

Guidelines for placing the compressor for stability and access.

Ventilation and Cooling Requirements

Requirements for adequate airflow around the compressor.

Service Air Piping Installation

Instructions for connecting the service air piping.

Fluid Level Check and Change

How to check and maintain the compressor fluid level.

Motor Rotation Direction Check

Procedure to verify correct motor fan rotation.

Electrical Preparation and Checks

Factory wiring and customer electrical connection requirements.

Operation Guide

Page: 65

General Operation Information

Introduction to compressor controls and indicators.

Purpose of Controls

Explanation of each control's function and purpose.

Initial Start-Up Procedure

Step-by-step guide for the first compressor startup.

Subsequent Start-Up Procedure

Routine procedure for starting the compressor after initial use.

Shutdown Procedure

Correct steps for turning off the compressor.

Maintenance Procedures

Page: 67

General Maintenance Information

General safety warnings and overview of the maintenance program.

Daily Operation Checks

Daily checks and general operational inspection requirements.

Motor Bearing Lubricant

Procedure for lubricating motor bearings and lubrication schedule.

Fluid Filter Maintenance

Conditions and procedures for fluid filter replacement.

Cooler Maintenance

Instructions for cleaning and maintaining the compressor cooler.

Parts Replacement and Adjustment

Detailed steps for replacing common parts.

Troubleshooting Overview

Introduction to diagnosing and resolving compressor issues.

Troubleshooting Guide

Common symptoms, probable causes, and remedies for problems.

Maintenance Record Log

Logbook for recording all maintenance activities performed.

Parts List and Ordering

Page: 79

Procedure for Ordering Parts

How to order genuine Sullair replacement parts.

Recommended Service Parts List

Catalog of essential service parts and kits with order numbers.
