Section 7
ILLUSTRATIONS AND PARTS LIST
85

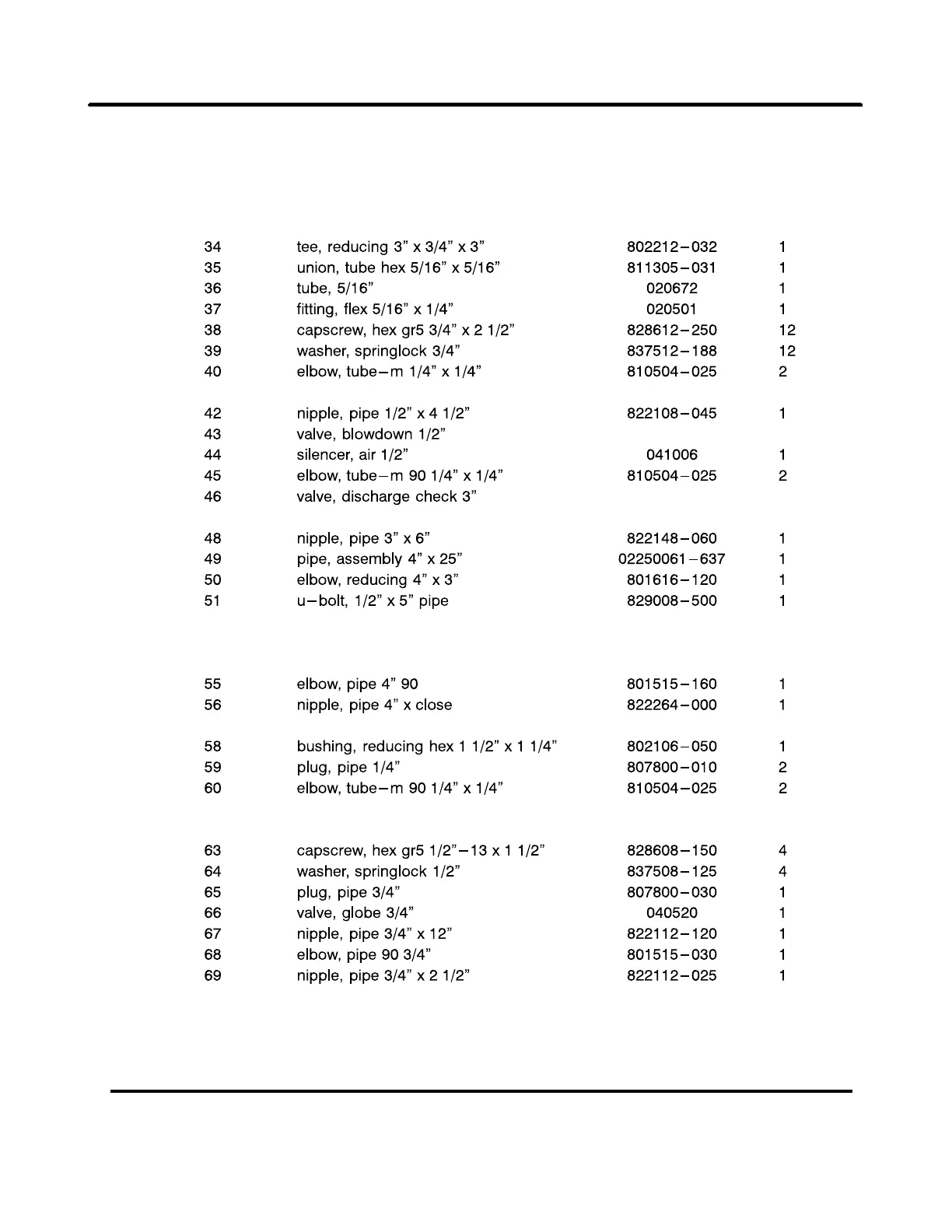

7.17 COMPRESSOR DISCHARGE SYSTEM --- 250HP/187KW (Continued)
key part
number description number quantity
41 element, secondary 250034---133 1
(III)
250030---276 1
(IV)
018435---003 1
47 joint, expansion 02250058---939 1
52 support 250031---749 1
53 probe 042582 1
54 probe 046867 1
57 valve, relief 410103 1
61 element, primary 250034---121 1
62 tank, fluid 250020---340 1
(Continued on Page 87)
(III)
For maintenance on blowdown vavle no. 250030--- 276, order repair kit no.02250045---132.
(IV)
For maintenance on discharge check valve no. 018435---003, order repair kit no. 606206---001.
PLEASE NOTE: WHEN ORDERING PARTS, INDICATE SERIAL NUMBER OF COMPRESSOR
