Section 7
ILLUSTRATIONS AND PARTS LIST
61

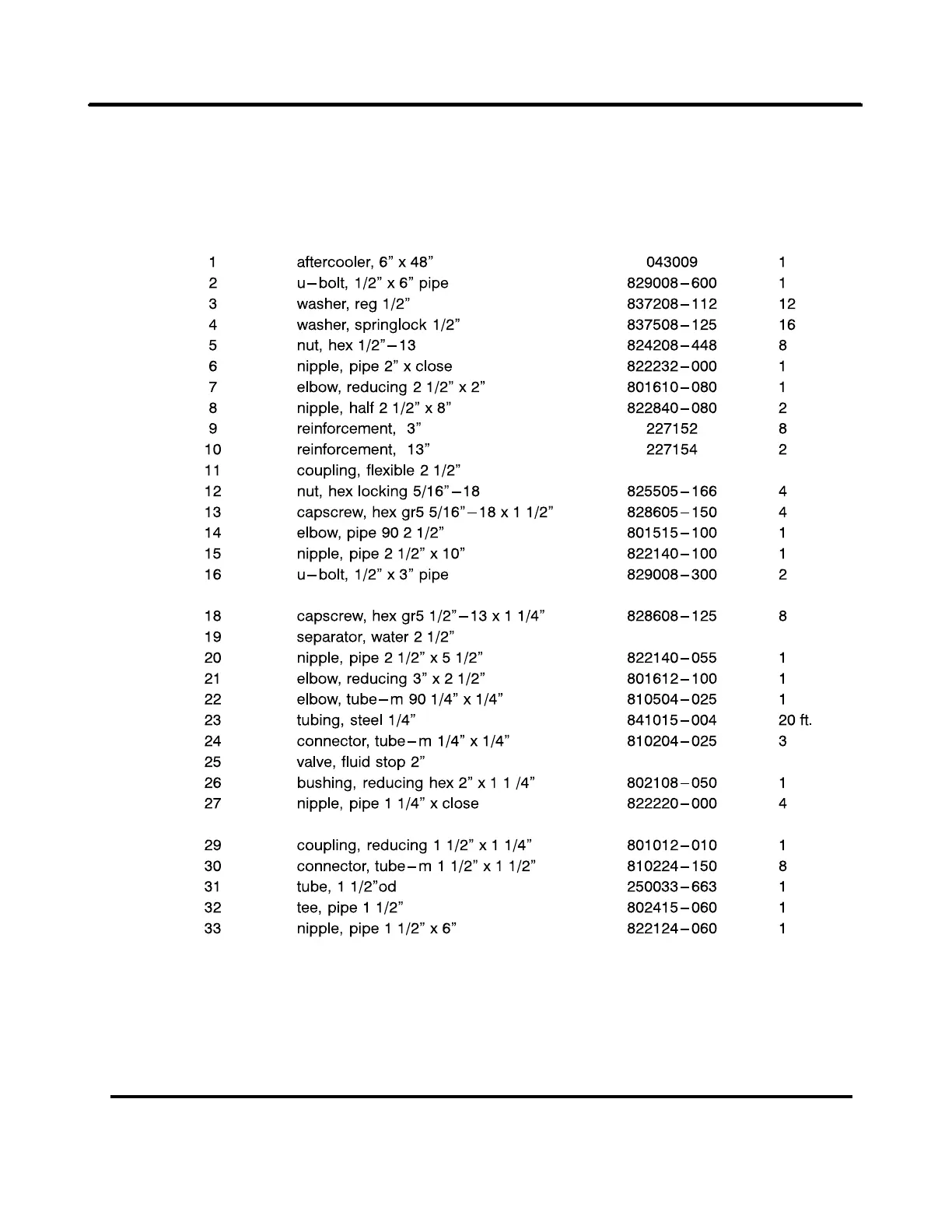

7.12 COMPRESSOR COOLING AND LUBRICATION SYSTEM --- 125 & 150HP/93 & 112KW
(WATER---COOLED)
key part
number description number quantity
(I)
040648 1
17 support, moisture separator 250023---077 2
(II)
410144 1
(III)
016742 1
28 filter, fluid
(IV)
250022---522 1
(Continued on Page 63)
(I)
For maintenance on flexible coupling no. 040648, order replacement gasket no. 040649 (2 required).
(II)
For maintenance on water separator no. 410144, order repair kit no. 250033---038.
(III)
For maintenance on fluid stop valve no. 016742, order repair kit no. 001684.
(IV)
For maintenance on fluid filter no. 250022---522, order repair kit no. 250025---526.
PLEASE NOTE: WHEN ORDERING PARTS, INDICATE SERIAL NUMBER OF COMPRESSOR
