Sumitomo Bevel BUDDYBOX 3 Series User Manual

41
COMMON
No. Part name
1 Bearing cover
2 Motor shaft bearing B
3 Fan
4 Fan cover
5 End bracket
6 Rotor conductor short circuit ring
No. Part name
7 Rotor core
8 Stationary core
9 Stator frame
10 Stator windings
11 Eyebolt
12 Cyclo flange bracket
No. Part name
13 Motor shaft bearing A
14 Oil slinger (Oil seal)
15 Motor shaft
16 Conduit box
17 Bearing cover

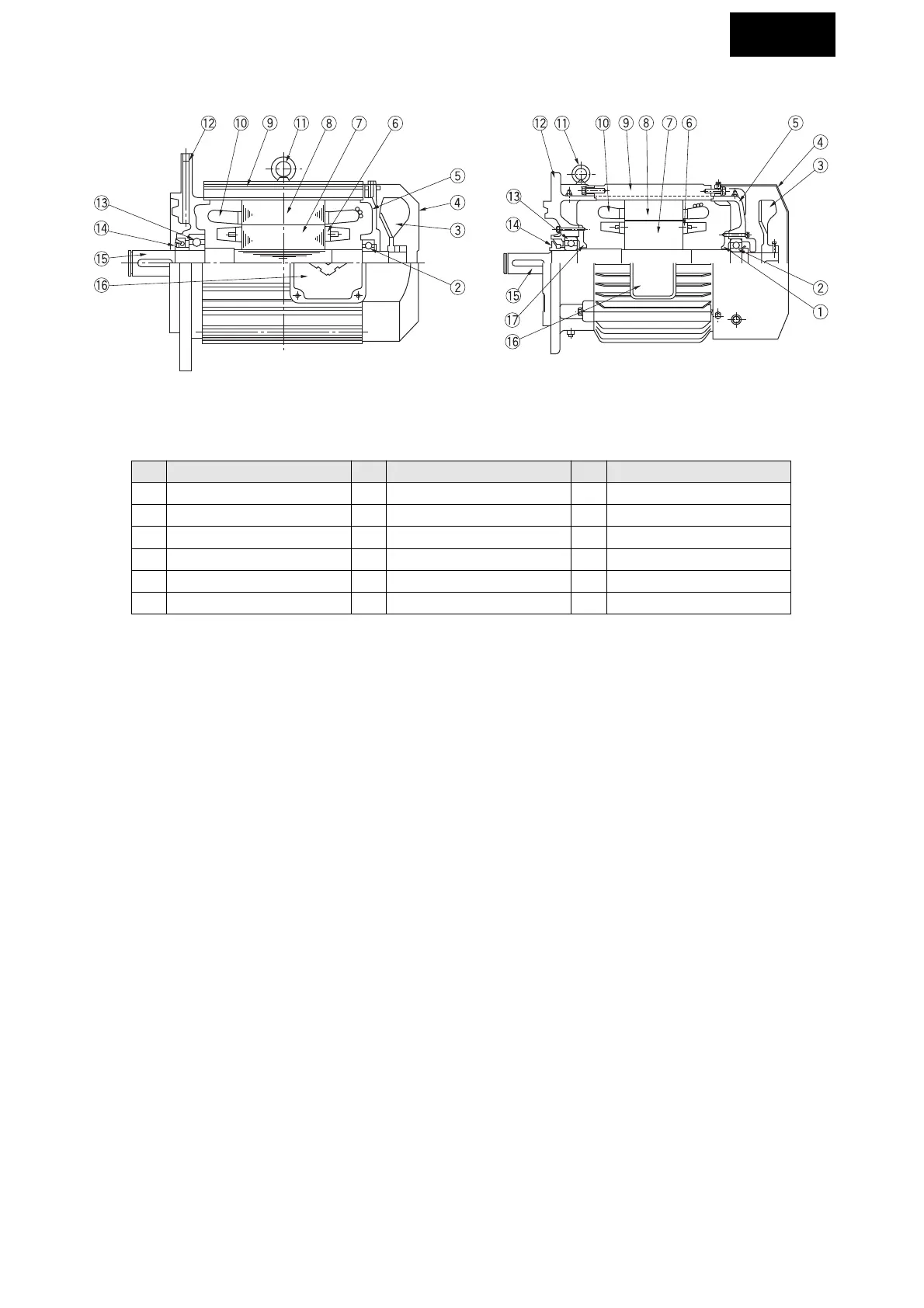

10-2) Construction Drawing of Motor part (for direct coupling with CYCLO drive)
Fig. 36 Construction Example of Frame Size 80-112M
Fig. 37 Construction Example of Frame Size 180 and Longer
Table 27 Main parts of motor
