Sumitomo SH145X-6 - Tooth Tip Wear Limits on the Backhoe Bucket; Replacing Bucket Teeth: Standard Type (Length Pin Type)

CONFIDENTIAL:FORTHEINTERNAL
USEOFTUTTBRYANTEQUIPMENT

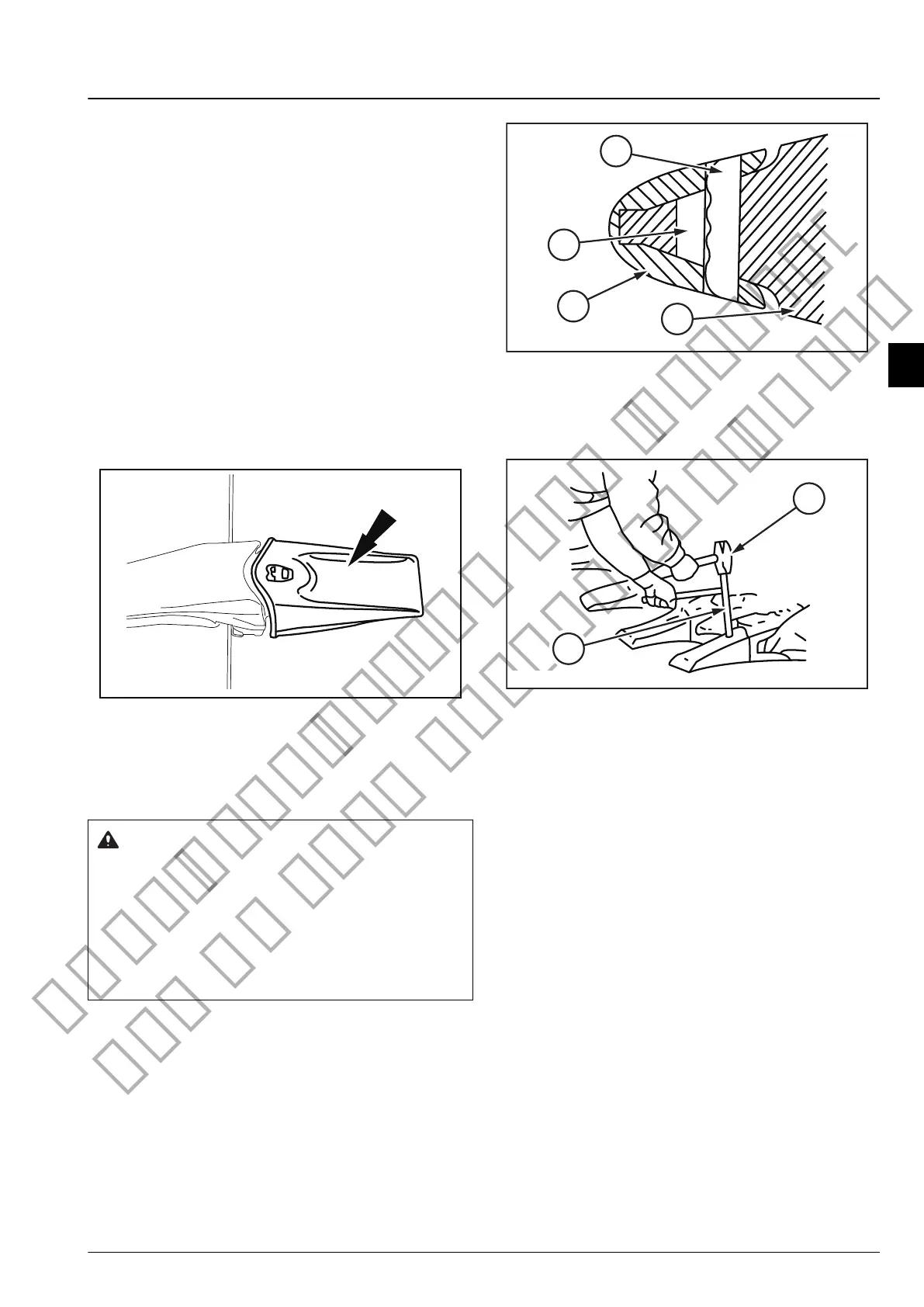

Tooth tip wear limits on the backhoe
bucket
The degree to which a tooth tip can be worn can
be assessed visually.
It is possible to extend the life of a tooth tip which
is wearing unevenly, in a non-symmetrical fashion.
Do not wait for tooth tips to be completely
worn through before changing them.
ever try to work with a missing tooth tip or a tooth
tip which is worn through.
The adaptor could be seriously damaged.
r8lwqf-001
r8lwqf-001
Replacing Bucket Teeth: Standard type
(Length Pin Type)
As necessary
WARNING
When installing and removing the bucket
teeth and side cutters, place the bucket on
the block, to secure it.
Wear protective equipment (safety goggles,
gloves and others) during work.
Removing Bucket Teeth
Inspect the bucket teeth for wear and if there are
any holes or cracks, replace them.
Replace the teeth before they begin to wear down
to the adapter.
NOTE:
NOTICE:
●
●
1
2
3
4
D0C4016F
D0C4016F
Use a hammer (*1) and punch (*2).
Remove the lock pin (2) attached to the bucket
to remove the tooth (1).
*1
*2
2F81DA15
2F81DA15
1.
6-Maintenance
6-Maintenance
6-83
