SECTION 8 - PARTS
8.39

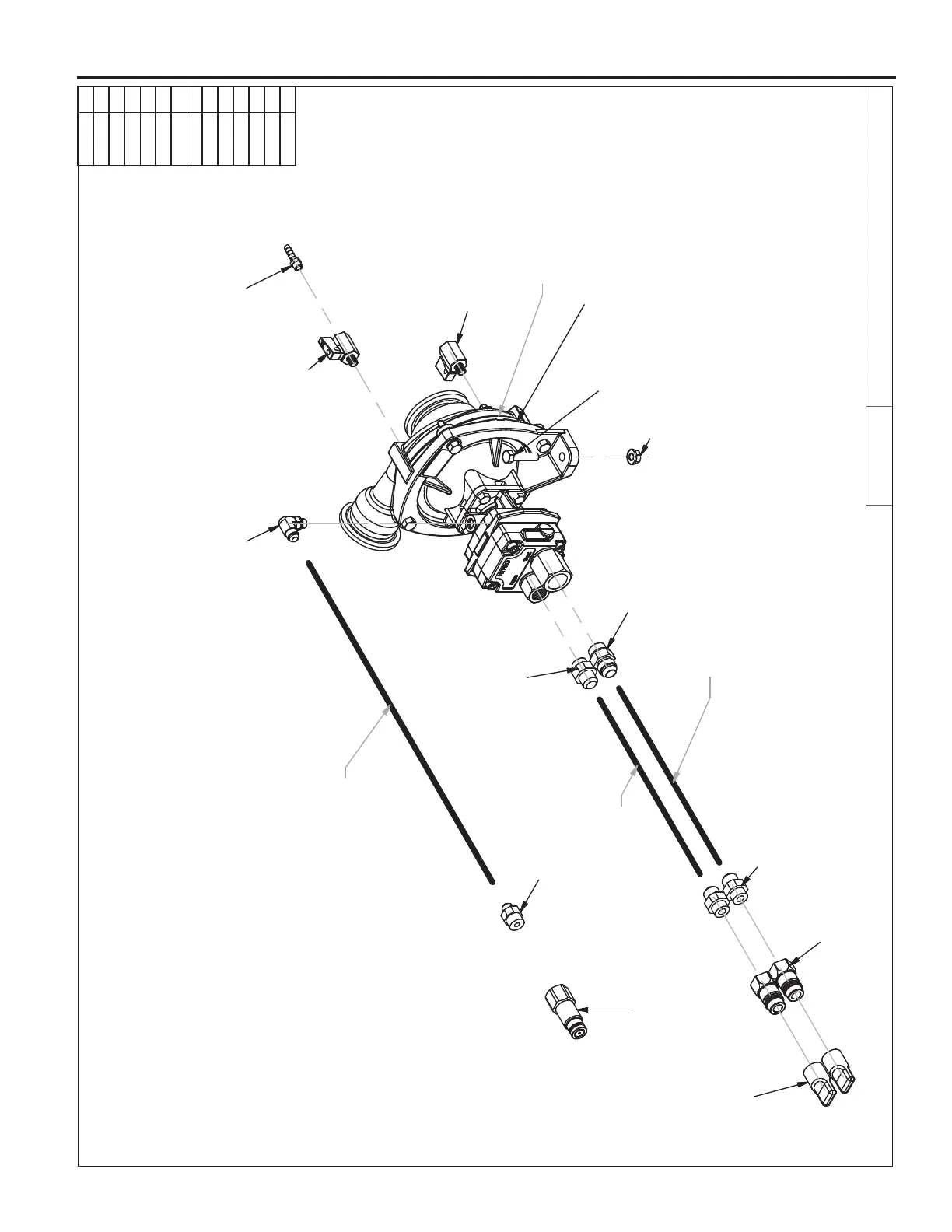

HM1C STD CAP/PRESSURE PUMP PKG
7/16/2013
8S9453A.iam/
QTY
PN
18A1056A
28D3212
18D3214
18F3917
28F3919F
68G2282
18J5104
18J5510
38J5520
18J5540
28S3095
28X0007
28X0203
STANDARD CAP/PRESSURE HYDRAULIC FLANGED PUMP PACKAGE
8D3214
3/4"-16 ORB FLT FACE
8J5510
3/4" ORB X #6 JIC(M)
8J5104
#4 ORB X #6 JIC ELBOW
8F3919F
VALVE 1/8" FPT X 1/8" MPT
8F3917
1/8" MPT X 1/4" HB
8F3919F
VALVE 1/8" FPT X 1/8" MPT
8A1056A
9303C-HM1C
8X0007
3/8" X 1-1/2"
8X0203
3/8" FN
8J5540
7/8" ORB X #10 STR CHK
8J5520
3/4" ORB X #10 STR
8J5520
3/4" ORB X #10 STR
8D3212
3/4" ORB TIP ISO
8N3136
3/8" X 136"
8N4120
1/2" X 120"
8N4138
1/2" X 138"
*APPLY TEFLON TAPE TO ALL MPT/FPT CONNECTIONS
*SEALANT IS NOT REQUIRED FOR O-RING OR FLARE
TYPE CONNECTIONS
8S3095
HYD CAPLUG
SEE PAGE 8.68
FOR BREAKDOWN
