Summers ULTIMATE NT - Page 129

SECTION 8 - PARTS
8.55
DETAIL E
DETAIL F
DETAIL G

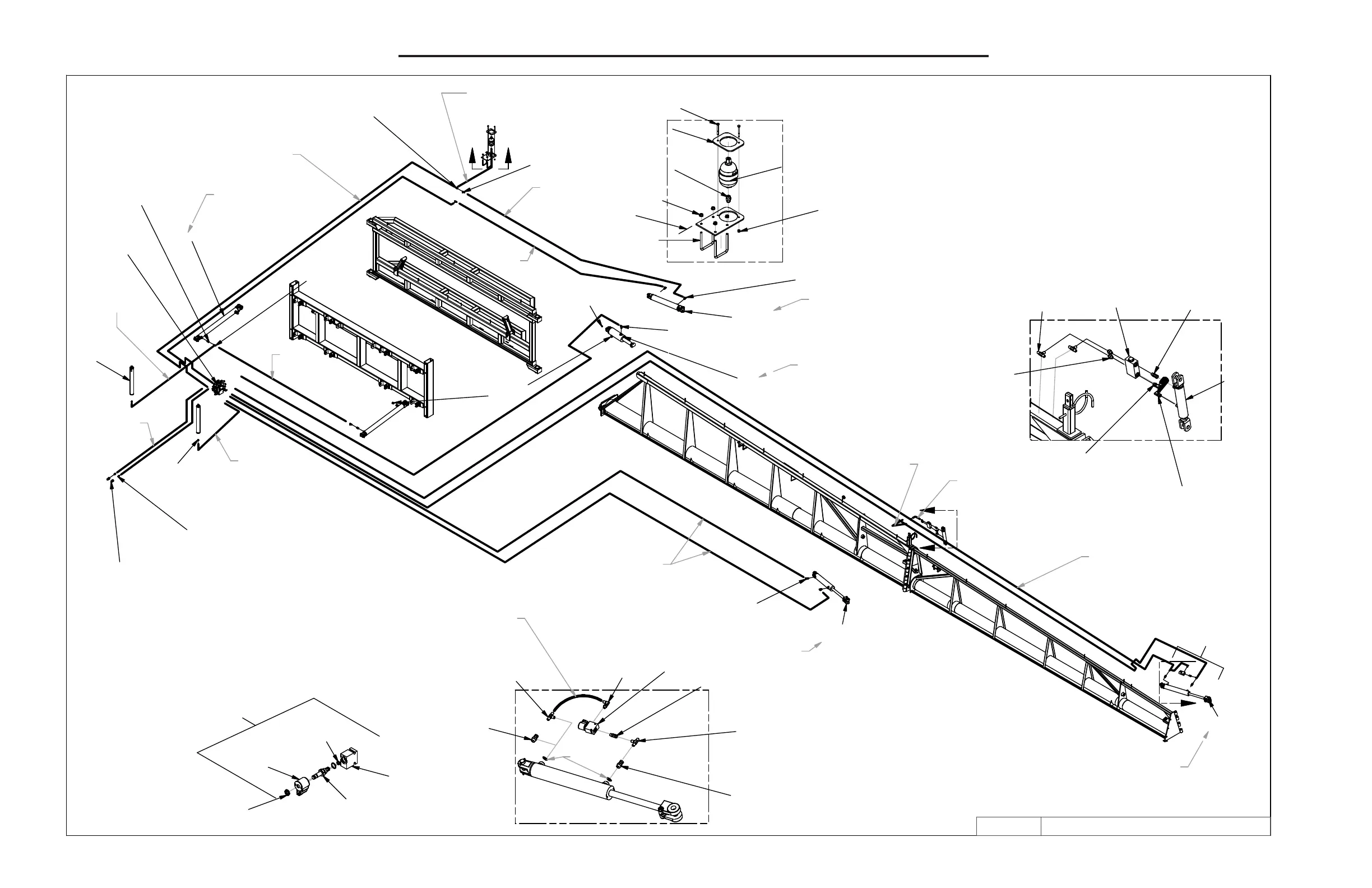

BOOM PKG 100'PT1-2-CNTR ULTRA
5/23/2016
8L7101/
E
F
G
8J5300
#6 JIC(M) TEE
8D9121
8D3212
3/4" ORB TIP ISO
8J5510
3/4" ORB X #6 JIC(M)
8J5620
3/4" X #6 JIC (F-SW)
8J5300
#6 JIC(M) TEE
8L0025
8D9215
8J6010
3/4-16ORB X #6JIC(M) 90° ADP
8J6010
3/4-16ORB X #6JIC(M) 90° ADP
8D9109
8D9093
8J6010
3/4-16ORB X #6JIC(M) 90° ADP
8D9090
8J5500
8N3390
3/8 X 390"
8N3035
3/8 X 35"
8N3028
3/8 X 28"
8N2096
1/4 X 96"
8N2072
1/4 X 72"
8N2054
1/4 X 54"
8N2036
1/4 X 36"
8N2024
1/4 X 24"
8N2400
1/4 X 400"
8L0230
100' CENTER BOOM PACKAGE
120' - 133' ULTRA
8D9107
SEAL KIT
8D9213
SEAL KIT
8D9094
SEAL KIT
8D9092
SEAL KIT
8J5298
#6 JIC(M+M+F-SW) TEE
8L0105
CHECK VLV
8L0104
8L0172
8X0222
1/4" LN
8S0319
3/8X3X4-1/8"
8L0170
8X0203
3/8" FN
8D9095
8J5600
9/16" X #6 JIC (F-SW)
8J5700
#6 JIC(F-SW) X #6 JIC(M) 90° ADP
8J6000
9/16ORB X #6JIC(M) 90°
8L0036
8J5500
9/16" X #6 JIC(M)
8J5300
#6 JIC(M) TEE
8X0013
1/4" X 2-1/2"
8L1451
BLOCK
8L1455
SEAL KIT
8L1459
CARTRIDGE
8L1473
COIL
8L1466
NUT
8L0042
8W1589
8N2012
8W1588
3/4" RESTRICTOR
8L0101
8D9122
SEAL KIT
8N2050
1/4" X 50"
8J5300
8J5620
8J6000
8J5600
8L0042
8J5300
8J5620
8N2036
1/4" X 36"
8N2410
1/4" X 410"
8C0600
