2.3
SECTION 2 - SPRAYER OPERATION

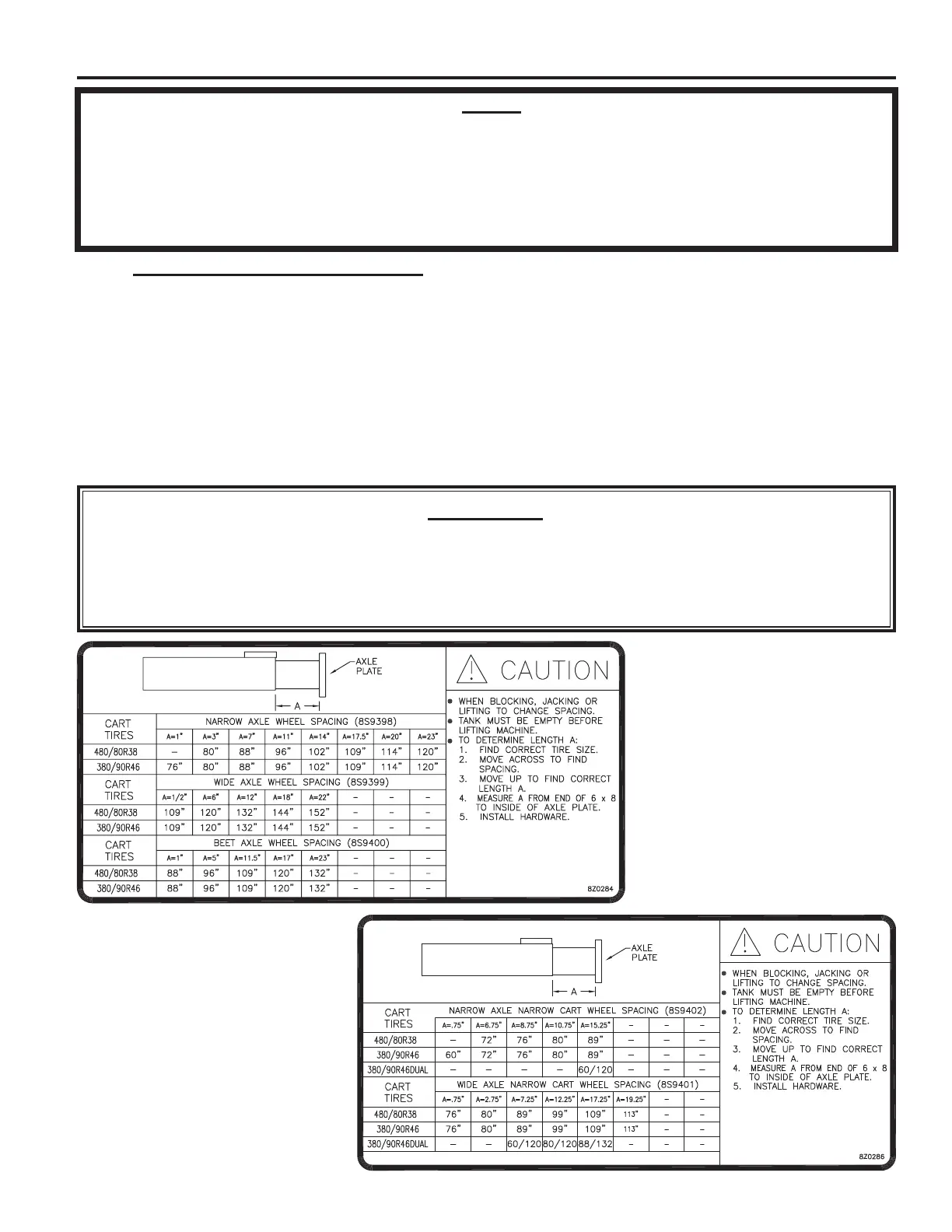

4. ADJUST CART WHEEL SPACING
A. Jack sprayer up so wheels are off the ground.
B. Block frame up for safety while working on axle.
C. Loosen 2 front axle retainer bolts on each side
D. Loosen 2 bottom axle retainer bolts on each side.
E. Remove inboard axle through bolt on each side.
F. Slide axles to desired dimension. Refer to decal.
G. Install inboard axle through bolts on both sides.
H. Tighten 2 bottom axle retainer bolts on each side.
I. Tighten 2 front axle retainer bolts on each side.
NOTE!
WHEN ELECTRIC/HYDRAULIC SWITCH BOX IS PROPERLY INSTALLED AND ENERGIZED
THE GREEN POWER LIGHT WILL GLOW. IF GREEN LIGHT DOES NOT GLOW REVERSE
ELECTRICAL LEADS. A 15 AMP RESETABLE CIRCUIT BREAKER IS PROVIDED ON THE
BOX. IT MUST BE PUSHED IN FOR SWITCHES TO PERFORM THEIR FUNCTION. INDIVID-
UAL SWITCHES WILL GLOW WHEN ACTIVATED.
WARNING!
SPRAYERS EQUIPPED WITH DUAL WHEELS ARE NOT DESIGNED TO RUN WITH OUTSIDE
WHEEL REMOVED. IF SINGLE WHEELS ARE NEEDED OPERATOR MUST REMOVE INNER
WHEELS AND REPLACE WITH OUTSIDE WHEELS. HUB MUST REMAIN IN CENTER OF
WHEEL FOOTPRINT.
