2.8
SECTION 2 - SPRAYER OPERATION

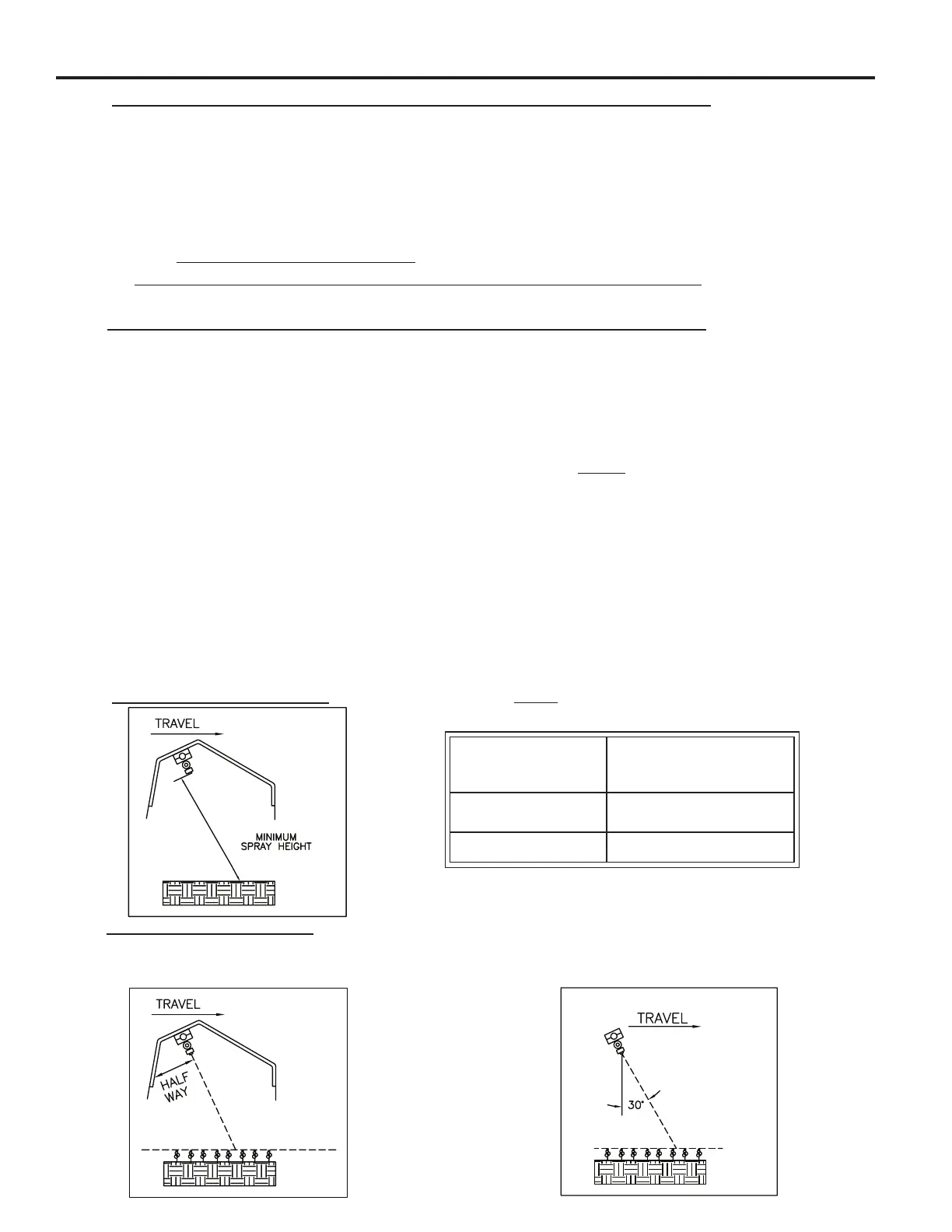

5. ADJUST SPRAY ANGLE
Adjust spray angle so that nozzle is half way between front and back windshields or 30 degrees for-
ward for sprayers without windshields.
SPRAY HEIGHT
DEGREE TIP
TIP TO TARGET
80° 17” TO 19”
110° 15” TO 18”
2. MAKE TRACTOR TO RAVEN SCS-205 SPRAYER SYSTEM HOOKUPS
A. Plug hydraulic pump hoses into tractor remote outlet for hydraulic pump operation.
B. Mount PTO pump on PTO output shaft of tractor (PTO pump optional).
C. Hook up suction and discharge plumbing hoses (PTO pumps only).
D. Mount Raven SCS-205 control in a secure and accessible location inside tractor cab.
E. Make electrical and mechanical pressure sensing connections per drawing on page 5.2.
See Raven Sprayer Control Systems manual for additional information.
F. Mount stick-on cable holders onto cart frame to secure Raven Control cable.
3. MAKE TRACTOR TO RAVEN SCS-450 SPRAYER SYSTEM HOOKUPS
A. Plug hydraulic pump hoses into tractor remote outlet for hydraulic pump operation.
B. Mount PTO pump on PTO output shaft of tractor (PTO pump optional).
C. Hook up suction and discharge plumbing hoses (PTO pumps only).
D. Mount Raven SCS-450 Control in a secure and accessible location inside tractor cab.
E. Make electrical connections per drawing on page 5.2. See Raven manual for additional informa-
tion.
F. To determine spraying width for programming your monitor use the following guidelines.
1. Determine number of boom shut off valves for each tank.
2. Verify which shut off the rear boom is connected to.
3. Determine the number of nozzles on each boom section.
4. Multiply the number of nozzles on each boom by the nozzle spacing. This is the boom width
that should be programmed into the Raven console.
5. Each end nozzle covers approximately 72”. Be sure to adjust the respective boom when the
end nozzle is spraying.
4. ADJUST SPRAY HEIGHT - Adjust spray height to initial chart setting by setting vertical height.
