Summit 3000 - Pit Frame Concrete Details

Installation 7

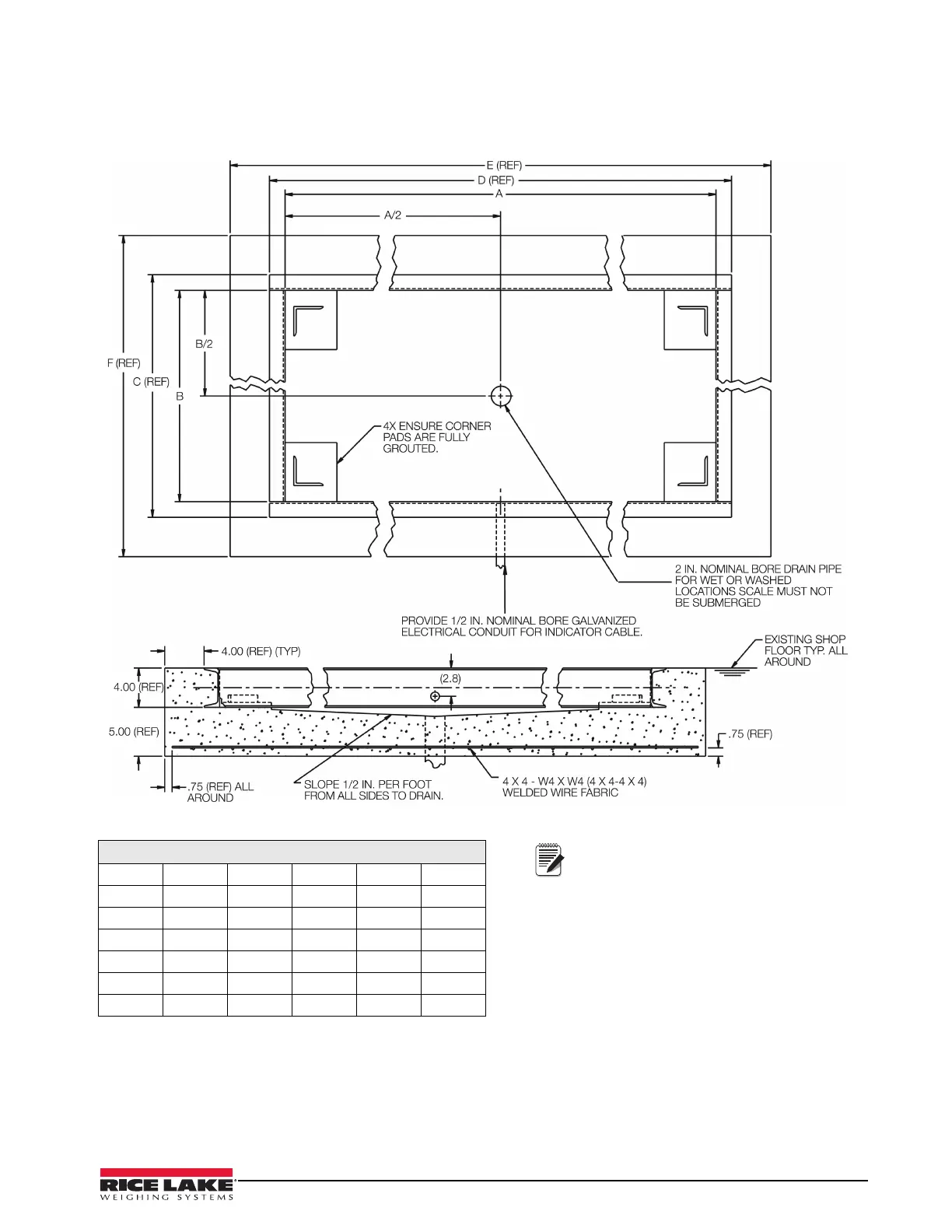

2.6 Pit Frame Concrete Details
The Summit 3000 can be installed in a shallow pit using the optional Summit 3000 pit frame.
Drawing Dimensions
Scale Size 3 ft x 3 ft 4 ft x 4 ft 4 ft x 5 ft 4 ft x 6 ft 5 ft x 5 ft
A 36.75 48.75 60.75 72.75 60.75
B 36.75 48.75 48.75 48.75 60.75
C 39.92 51.92 51.92 51.92 63.92
D 39.92 51.92 63.92 75.92 63.92
E 47.92 59.92 71.92 83.92 71.92
F 47.92 59.92 59.92 59.92 71.92
Table 2-2. Drawing Dimensions
• Use concrete of minimum yield strength
5,000 PSI or six bag mix.
• Allow seven days to cure (wet concrete
periodically during this time).
• Dimensions shown assume firm, stable
soil conditions. When soil conditions are
not adequate, place foundation at
sufficient depth.
• In wet or washdown applications, it is
recommended to use hermetically sealed
load cells and the junction box be
mounted remotely in a dry location.
• Wire mesh to have a minimum 0.75 in
cover bottom and sides.
Note
