INSTALLATION
Important! This new appliance may only be installed and connected by a registered specialist.
Please observe these instructions; otherwise the warranty will not cover any damage that may
occur.

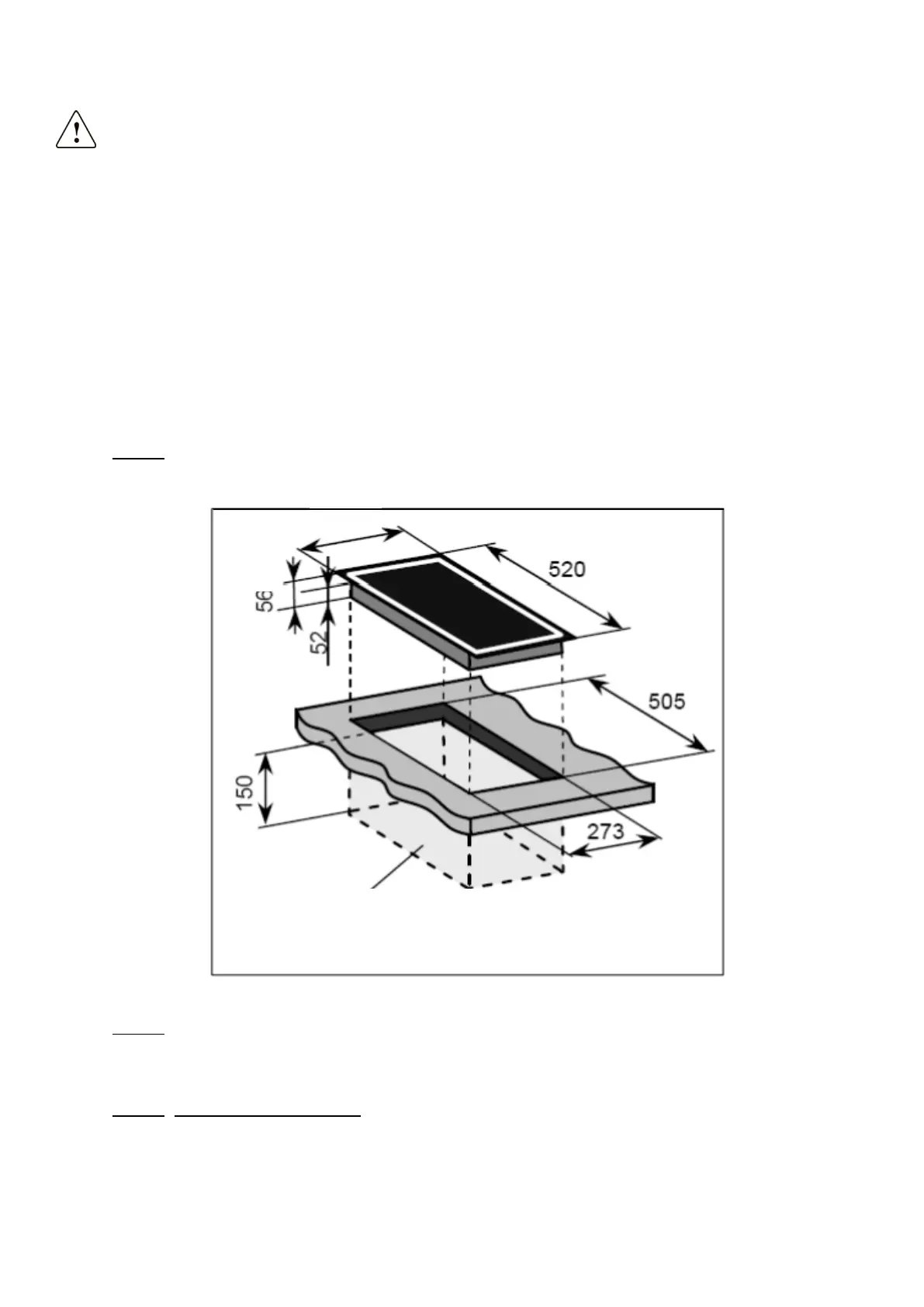

Appliance dimensions
Width 290mm (11.42”)
Depth 520mm (20.5”)
Height 50mm (2.0”)
Countertop cut-out dimensions
Width 273mm (10.75”)
Depth 505mm (19.9”)
Height 150mm (5.9”)
NOTE: If your cutout is closer to 15” than 10.75” wide, you should be using one of our TK15
model cooktops.
NOTE: When preparing the countertop, radius the corners of the cutout (1/4” radius is
typical). This will prevent cracking of the countertop. Follow manufacturer’s instructions
regarding minimum corner radius and reinforcement of corners.
NOTE: To install TK15 models: For wider cutouts, use the stainless steel frame supplied with
your TK15 cooktop. Lay a thin bead of bedding compound along the edge of the cutout,
and then lay the frame over this, pressing down to make a good seal once the frame is
centered. The frame should be as flush with the countertop as possible.
Free space under the cooktop
necessary for ventilation
