23
COOKTOP INSTALLATION
Visually inspect the cooktop for damage. Make sure all cooktop screws are tight (see
locations below).

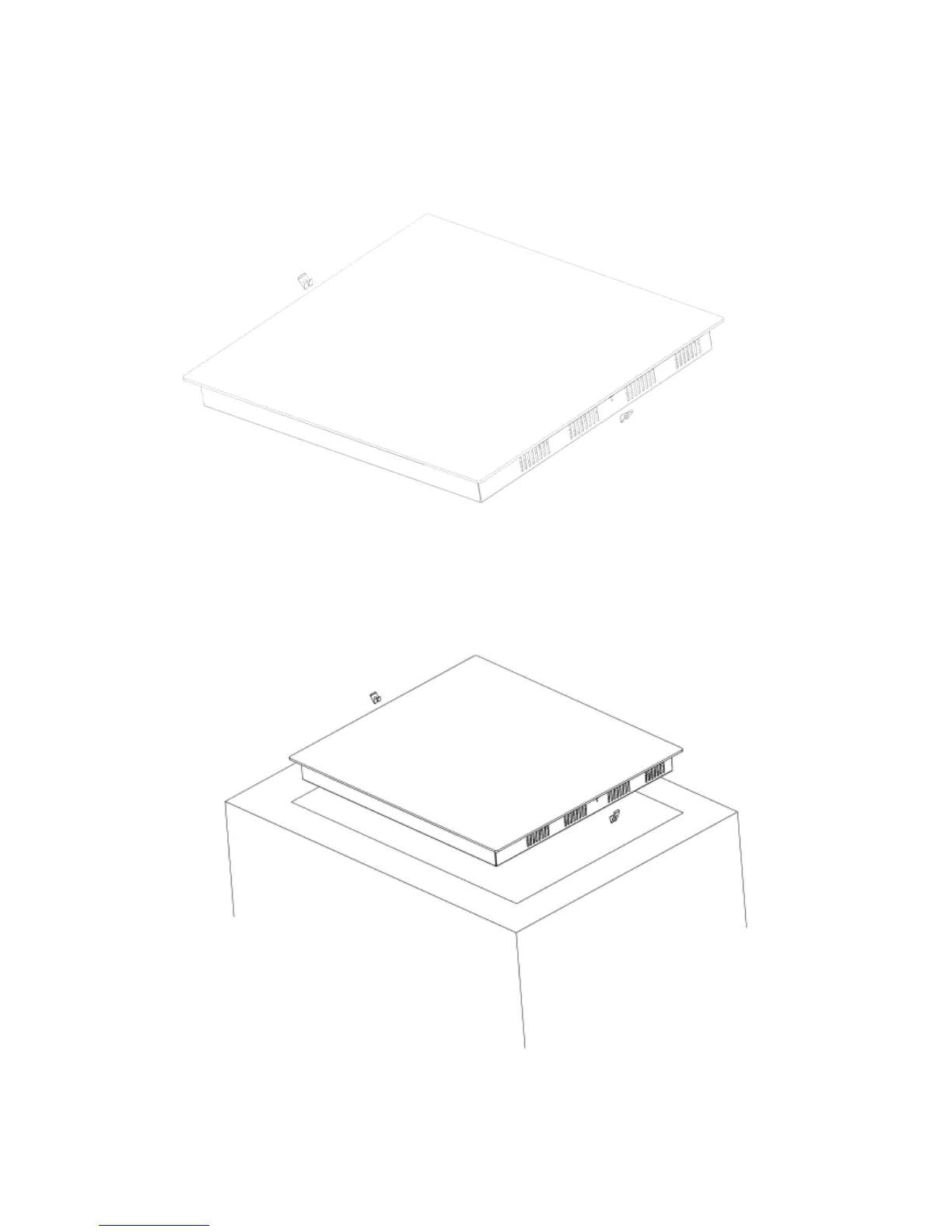

②Carefully lower the cooktop into the countertop cutout, making sure not to trap any
wires.
NOTE: Do not use caulking compound. The cooktop must be removable, should
service be required.
③ Install the retainer brackets to the bottom of the cooktop; then snug the bolts against
the bottom of the countertop as shown.
To Next Page
